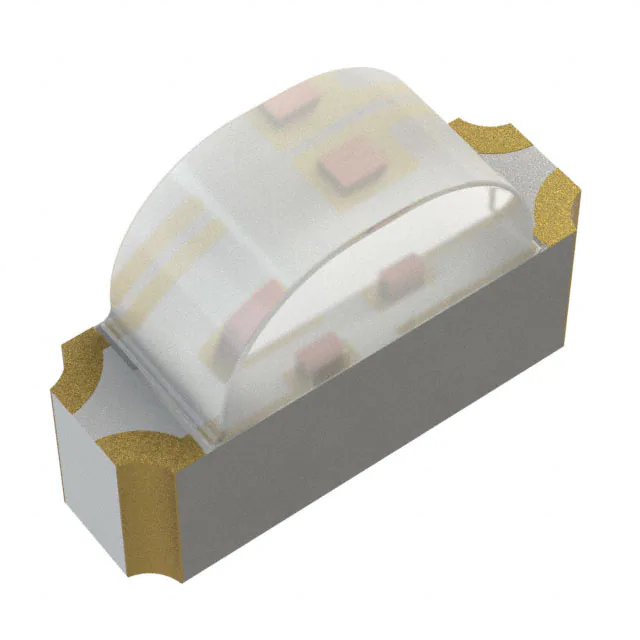

HSMF-C142

HSMF-C142 Side View SMT ChipLED Data Sheet Features:     Applications:  Backlighting  Status indicator  Front panel indicator  Office automation, home appliances, industrial equipment LED with AlInGaP die Bicolor right angle chipLED Compatible with reflow soldering Tape in 8mm carrier tape on a 7 inch diameter reel Package Dimensions Notes: 1. 2. All dimensions are in mm. Tolerance ±0.1mm unless otherwise specified. CAUTION: This LED is class 1A ESD sensitive per ANSI/ESDA/JEDEC JS-001. Please observe appropriate precautions during handling and processing. Refer to application note AN-1142 for additional details. 1 Absolute Maximum Value at T A = 25°C Parameter Forward current1 Power dissipation Operating temperature Storage temperature AlInGaP 30 72 -30 to 85 -40 to 85 Unit mA mW °C °C Note: 1. Derate as shown in Figure 5. Optical Characteristics at T A = 25°C, IF = 20mA Luminous Intensity (mcd)1 Color Deep Red Green Min. 18.0 18.0 Peak Wavelength (nm) Typ. 660.0 571.0 Typ. 66.0 33.0 Dominant Wavelength (nm)2 Typ. 639.0 570.0 Viewing Angle (°)3 Typ. 120 120 Notes: 1. 2. 3. The luminous intensity is measured at the mechanical axis of the LED package. The actual peak of the spatial radiation pattern may not be aligned with the axis. The dominant wavelength is derived from the CIE chromaticity diagram and represents the perceived color of the device. Θ1/2 is the off axis angle where the luminous intensity is ½ the peak intensity. Electrical Characteristics at T A = 25°C, IF = 20mA Color Deep Red Green Forward Voltage (V)1 Min. 1.6 1.6 Max. 2.4 2.4 Notes: 1. 2. Forward voltage tolerance ±0.1V. Reverse voltage indicates product final test. Long term reverse bias is not recommended. 2 Reverse Voltage (V)2 at 100μA Min. 5 5 Bin Information Intensity Bin (CAT) Bin ID M N P Q R Luminous Intensity (mcd) Min. Max. 18.0 28.5 28.5 45.0 45.0 71.5 71.5 112.5 112.5 180.0 Tolerance ±15% Color Bin (BIN) – Deep Red Dominant Wavelength (nm) Bin ID Min. Max. 630.0 650.0 Color Bin (BIN) - Green Dominant Wavelength (nm) Bin ID Min. Max. A 561.5 564.5 B 564.5 567.5 C 567.5 570.5 D 570.5 573.5 E 573.5 576.5 Tolerance ±1nm Tolerance ±1nm 3 Deep Red 35 30 FORWARD CURRENT - mA RELATIVE INTENSITY Green 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 25 20 15 10 5 380 480 580 680 780 0 0 WAVELENGTH - nm 1.6 1 1.4 0.9 1.2 0.8 1 0.8 0.6 0.4 4 0.5 0.4 0.3 0 0.1 10 15 20 25 FORWARD CURRENT - mA 30 C2 0.6 0.2 5 C1 0.7 0.2 0 2 3 FORWARD VOLTAGE - V Figure 2. Forward current vs Forward voltage NORMALIZED INTENSITY RELATIVE LUMINOUS INTENSITY (NORMALIZED AT 20 mA) Figure 1. Spectrum 1 0 -90 -60 -30 0 30 ANGULAR DISPLACEMENT - DEGREES Figure 3. Relative intensity vs Forward current Figure 4. Radiation pattern 35 Forward Current-mA 30 25 20 15 10 5 0 0 10 20 30 40 50 60 70 80 90 Ambient Temperature-°C Figure 5. Derating curve Figure 6. Recommended solder pad 4 60 90 Figure 7. Reel orientation Figure 8. Reel dimensions Figure 9. Carrier tape dimensions 5 Soldering Recommended reflow soldering condition: (a) Reflow soldering must not be done more than 2 times. Do observe necessary precautions of handling moisture sensitive device as stated in below section. (b) Do not apply any pressure or force on the LED during reflow and after reflow when the LED is still hot. (c) It is preferred to use reflow soldering to solder the LED. But if unavoidable (such as rework), manual hand soldering can be used but must be strictly controlled to condition below: Soldering iron tip temperature = 310°C max Soldering duration = 2sec max Number of cycle = 1 only Power of soldering iron = 50W max (d) Do not touch the LED package body with the soldering iron except for the soldering terminals as it may cause damage to the LED. (e) User is advised to confirm beforehand whether the functionality and performance of the LED is affected by hand soldering. 6 PRECAUTIONARY NOTES 1. Handling of moisture sensitive device This product has a Moisture Sensitive Level 2a rating per JEDEC J-STD-020. Do refer to Avago Application Note AN5305, Handling of Moisture Sensitive Surface Mount Devices, for additional details and a review of proper handling procedures. (a) Before use - An unopened moisture barrier bag (MBB) can be stored at
