HSMF-C145

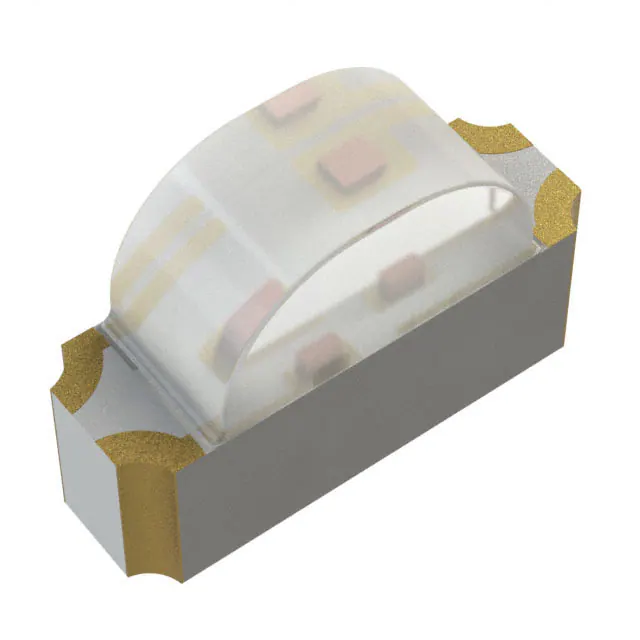

HSMF-C145 Side View SMT ChipLED Data Sheet Caution: This LED is class 1A ESD sensitive. Please observe appropriate precautions during handling and processing. Package Dimensions • • All dimensions are in mm. Tolerance ±0.1mm unless otherwise specified. Device Selection Guide Part Number Color Package HSMF-C145 AlInGaP Red (C1) / InGaN Green (C2) Water Clear Absolute Maximum Value at TA = 25°C Parameter AlInGaP InGaN Unit Forward current 30 20 mA Power dissipation 72 78 mW Operating temperature -30 to 85 °C Storage temperature -40 to 85 °C Not recommended V Reverse voltage Optical/Electrical Characteristics at TA = 25°C, If=20mA Color Luminous intensity(mcd) Dominant wavelength(nm) Peak wavelength(nm) Viewing angle(°) Forward voltage(V) Min Typ Typ Typ Typ Min Max InGaN Green 45 223 523 517 120 2.9 3.9 AlInGaP Red 18 79 632 644 120 1.6 2.4 • Forward voltage tolerance is ±0.1V. InGaN 1.0 AlInGaP RELATIVE INTENSITY 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 380 430 480 530 580 WAVELENGTH - nm Relative intensity vs Wavelength 630 680 730 780 AlInGaP FORWARD CURRENT - mA 30 25 InGaN 20 15 10 5 0 0 1 2 FORWARD VOLTAGE - V Forward current vs Forward voltage 3 4 1.6 AlInGaP RELATIVE LUMINOUS INTENSITY (NORMALIZED AT 20 mA) 1.4 1.2 1 0.8 InGaN 0.6 0.4 0.2 0 0 5 10 15 FORWARD CURRENT - mA Relative intensity vs Forward current 20 25 30 C1 1 C2 NORMALIZED INTENSITY 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 -90 -60 -30 0 30 60 90 ANGULAR DISPLACEMENT - DEGREES Relative intensity vs Angle 35 AlInGaP 30 Forward Current-mA 25 InGaN 20 15 10 5 0 0 10 20 30 40 50 Ambient Temperature-°C Maximum forward current vs Ambient temperature 60 70 80 90 Recommended Pb free reflow solder profile Recommended soldering pad pattern Unit:mm Reel dimensions Unit:mm Tape dimensions Unit:mm(inches) Storage condition: 5 to 30°C at 60% RH max. Baking is required before mounting if: (1) Humidity indicator card is >10% when read at 23±5°C. (2) Device expose to factory conditions
