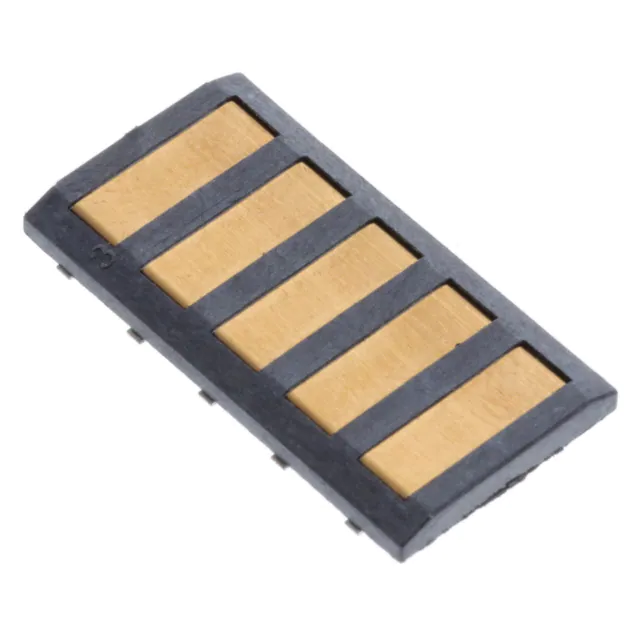

Two-Piece 4.0mm Pitch Battery 9155-400 This unique battery or removable module style connector is different from most others in that it allows for the pluggable device to be swiped or connected from either direction. The spring contact offers enhanced contact deflection range over existing connectors in the market with a full 1.4mm of travel after contact engagement. This contact design allows the connector to absorb more of the plastic or housing tolerances making it more functional and reliable in real life applications. The fixed pad connector is unique in the industry as a replaces the plating of gold directly onto PCB pads. The main benefit of using this connector is to elevate the pad surface well above the PCB so that the gold contacts are close to flush with the outside packaging. This minimizes the distance that a spring contact would need to absorb in the mating tolerance band. Also unique to this connector is the angled contact lead-in on both sides which facilitates smooth engagement of the spring contact from either direction. APPLICATIONS FEATURES AND BENEFITS • Portable electronics requiring a removable battery • Interface for removable/pluggable modules or cartridges • Docking cradle for charging and data transfer • Proven contact reliability in harsh industrial or medical applications • Increased contact deflection range above existing connectors on the market • Gold plated Beryllium contact spring contact assures maximum contact reliability and functionality up to 5000 cycles • Beveled lead in on pad connector facilitates smooth module engagement from either direction ELECTRICAL ENVIRONMENTAL MECHANICAL • Current Rating: 5A/contact • Voltage Rating: 125 VAC • Operating Temperature: -40ºC to +125ºC • Contact Material: Spring contact is Be Cu, Fixed contact is Phosphor Bronze • Contact Plating: Gold over nickel mating area, pure Tin SMT tails • Durability 5000 Cycles HOW TO ORDER 00 9155 005 Prefix Series Number of Ways 002 = 2 003 = 3 004 = 4 005 = 5 006 = 6 041519 40X 00X Standard Battery Connector Code Description 401 Battery Connector - Sprung Half 402 Battery Connector - Fixed Half Reel Qty. 550 1100 Plating Option 6 = 0.4μm Selective Gold, Pure Tin Tail 8 = 0.8μm Slective Gold, Pure Tin Tail The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 1 Two-Piece 4.0mm Pitch Battery 9155-400 2 WAY BATTERY CONNECTOR – SPRUNG HALF DETAIL A SECTION ON Z-Z SUGGESTED MATING PCB LAYOUT SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-14. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 6. RECOMMENDED PLATING ON MATING PADS. GOLD OVER NICKEL. 7. FOR OTHER TAN VERTICAL MATING WE RECOMMEND MATING WITH THE FIXED CONNECTOR, REFER TO PAGE 13. 2 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 3 WAY BATTERY CONNECTOR – SPRUNG HALF DETAIL A SECTION ON Z-Z SUGGESTED MATING PCB LAYOUT SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-14. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 6. RECOMMENDED PLATING ON MATING PADS. GOLD OVER NICKEL. 7. FOR OTHER TAN VERTICAL MATING WE RECOMMEND MATING WITH THE FIXED CONNECTOR, REFER TO PAGE 13. 041519 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 3 Two-Piece 4.0mm Pitch Battery 9155-400 4 WAY BATTERY CONNECTOR – SPRUNG HALF DETAIL A SECTION ON Z-Z SUGGESTED MATING PCB LAYOUT SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-14. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 6. RECOMMENDED PLATING ON MATING PADS. GOLD OVER NICKEL. 7. FOR OTHER TAN VERTICAL MATING WE RECOMMEND MATING WITH THE FIXED CONNECTOR, REFER TO PAGE 13. 4 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 5 WAY BATTERY CONNECTOR – SPRUNG HALF DETAIL A SECTION ON Z-Z SUGGESTED MATING PCB LAYOUT SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-14. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 6. RECOMMENDED PLATING ON MATING PADS. GOLD OVER NICKEL. 7. FOR OTHER TAN VERTICAL MATING WE RECOMMEND MATING WITH THE FIXED CONNECTOR, REFER TO PAGE 13. 041519 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 5 Two-Piece 4.0mm Pitch Battery 9155-400 6 WAY BATTERY CONNECTOR – SPRUNG HALF DETAIL A SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT SUGGESTED MATING PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-14. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 6. RECOMMENDED PLATING ON MATING PADS. GOLD OVER NICKEL. 7. FOR OTHER TAN VERTICAL MATING WE RECOMMEND MATING WITH THE FIXED CONNECTOR, REFER TO PAGE 13. 6 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 2 WAY BATTERY CONNECTOR – FIXED HALF OPTIONAL SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-13. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 041519 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 7 Two-Piece 4.0mm Pitch Battery 9155-400 3 WAY BATTERY CONNECTOR – FIXED HALF OPTIONAL SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-13. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 8 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 4 WAY BATTERY CONNECTOR – FIXED HALF OPTIONAL SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-13. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 041519 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 9 Two-Piece 4.0mm Pitch Battery 9155-400 5 WAY BATTERY CONNECTOR – FIXED HALF OPTIONAL SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT 10 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 6 WAY BATTERY CONNECTOR – FIXED HALF OPTIONAL SECTION ON Z-Z SUGGESTED SMT PCB LAYOUT NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. FOR FURTHER DETAILS REFER TO AVX SPECIFICATION 201-01-207. 3. |ADDITIONAL INFORMATION AND BASIC MATING DETAILS REFER TO PAGES 12-13. 4. PACKING DETAILS ON PAGE 15. 5. CONNECTOR OUTLINE. 041519 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 11 Two-Piece 4.0mm Pitch Battery 9155-400 BATTERY CONNECTOR - MATING DETAILS SPRUNG HALF MATED WITH FIXED HALF NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. INSULATION MATERIAL: LCP, GLASS FILLED, UL94 V-0, COLOR BLACK. 3. CONTACT MATERIAL SPRUNG HALF: BERYLLIUM COPPER. 4. CONTACT MATERIAL FIXED HALF: PHOSPHOR BRONZE. 5. 6. 7. 8. CONTACT PLATING: GOLD OVER NICKEL, PURE TIN TAILS. DURABILITY 5000 OPERATIONS. CURRENT RATING 5A. CONTACT RESISTANCE 25mΩ MAX. BATTERY CONNECTOR - MATING DETAILS DIRECTION OF MATING HORIZONTAL MATING - FROM EITHER END VERTICAL MATING BATTERY CONNECTOR - MATING DETAILS SPRUNG HALF MATED WITH PCB NOTES: 1. GENERAL TOLERANCE ±0.20 UNLESS OTHERWISE STATED. 2. SPRUNG HALF MATED WITH GOLD PLATED PAD ON PCB 3. VERTICAL MATING ONLY. 12 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 041519 Two-Piece 4.0mm Pitch Battery 9155-400 BI-DIRECTIONAL BATTERY CONNECTOR - PACKING DETAILS PACKING DETAILS SPRUNG CONNECTOR 041519 PACKING DETAILS FIXED CONNECTOR The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. – specialty connectors – 13
