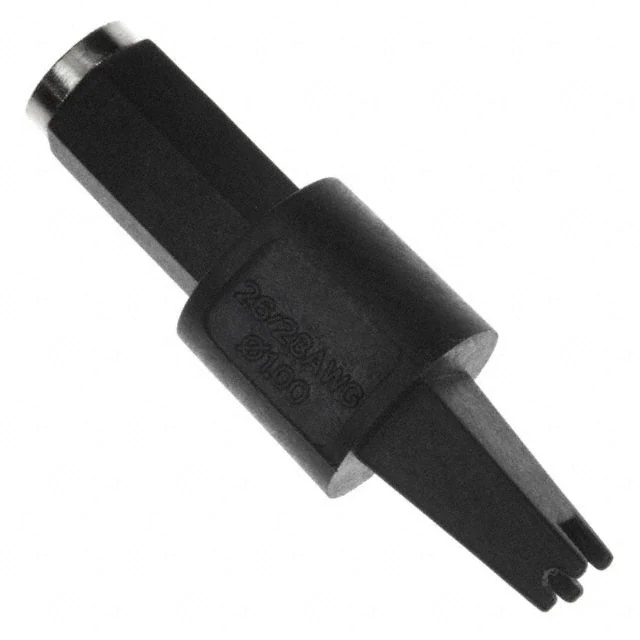

STANDARD IDC 26-28 AWG: 9175-000 General Information The 917X series of surface mount Insulation Displacement Connectors (IDC) were developed to meet the harsh requirements of automotive and industrial applications. This industry proven series of connectors provides a robust, reliable, and efficient method to connect individual wires ranging from 12 AWG to 30 AWG directly to a PCB. The single contact design can function as a standalone component. It provides our designers access to IDC technology in an easy-to-use form factor allowing them to bring power and signal to a PCB in a wide range of applications. These connectors have been tested to various levels of shock, vibration, and temperature cycling to prove their reliability and robustness. The simplicity of inserting a wire into an SMT contact with a small tool or optional retention / termination cap allows a wide range of devices to be connected to the PCB without soldering. The IDC contact provides a gas-tight connection to the wire and the optional cap provides a positive strain relief even in the harshest conditions. In case of repair, the wires can be removed and replaced up to three times. The 9175 series accepts 26 AWG to 28 AWG wires with an insulation diameter ranging from 0.7mm to 1.0mm. These connectors support a 1 amp current rating and have a split SMT tail design to provide maximum stability on the PCB. Available in a 2p and 3p configuration, these connectors can be end stackable for higher pin counts. FEATURES AND BENEFITS APPLICATIONS • Connecting discrete wire components directly to the PCB • Bringing power and signals onto a PCB • Daisy chaining PCB’s together to create a continuous string of boards • Application Notes: refer to 201-01-124 • Specification: refer to SPEC 201-01-100 • • • • • • IDC contact provides a gas-tight connection to the PCB for long term reliability Connector housing captures the wire insulation for positive strain relief Tested to various levels on shock, vibration and temperature cycling for reliability Low and high volume assembly tools to match production volumes Reduced total applied cost versus solder or crimp processes High temperature insulator capable to 260ºC reflow soldering processes ELECTRICAL ENVIRONMENTAL MECHANICAL • Current Rating: 1 Amp / Contact • Volatage Rating: 150 VAC (RMS) or DC Equivalent • Storage Temperature: -40°C to +70°C • Operating Temperature: -40ºC to +125ºC • • • • Insulator Material: Nylon 46: UL94V0 Contact Material: Phosphor Bronze Plating: Tin over Nickel Durability: 3 Cycles HOW TO ORDER 00 9175 00X Prefix Series Number of Ways No of Code Ways 002 2 003 3 00X Wire Gauge Size Details Page 4 Page 5 Code 001 002 Accepted Wire Gauge 28 Gauge Solid or Stranded 26 Gauge Solid or Stranded Wire Insulation Ø 0.70 to Ø 1.00 Ø 0.70 to Ø 1.00 X 06 Insulator Color 9 = UL White 8 = UL Black Special Order Plating Option 06 = Pure Tin all over CONNECTOR/TOOLING PART NUMBER MATRIX AWG 26 26 26 26 28 28 28 28 SERIES 9175 IDC Wire Positions Color Insulation Ø 0.7 - 1.0 2p White Ø 0.7 - 1.0 2p Black Ø 0.7 - 1.0 3p White Ø 0.7 - 1.0 3p Black Ø 0.7 - 1.0 2p White Ø 0.7 - 1.0 2p Black Ø 0.7 - 1.0 3p White Ø 0.7 - 1.0 3p Black Part Number 009175002002906 009175002002806 009175003002906 009175003002806 009175002001906 009175002001806 009175003001906 009175003001806 HAND INSERTION TOOLING* Plastic Metal Mass (medium volume) (high volume) Termination 069175701701002 069175701601000 069175701701000 069175701701003 069175701701002 069175701701003 ACCESSORY CAPS Though Wire Wire Stop 609175002010100 609175002010000 609175003010100 609175003010000 609175002010100 609175002010000 609175003010100 609175003010000 609175002010199 609175002010099 609175003010199 609175003010099 609175002010199 609175002010099 609175003010199 609175003010099 * Hand Insertion Tooling - Universal Hand Tool 067000773001000; Consult Application Notes 201-01-124 Safety Standards: UL 1977-File #E90723 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – 1 STANDARD IDC 26-28 AWG: 9175-000 2 Position 26-28 AWG 2 WAY IDC CONNECTOR NOTES: 1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION. 2. CONTACT MATERIAL: PHOSPHOR BRONZE. INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46. COLOR REFER TO PAGE 1. 3. CONNECTOR DESIGNED TO ACCEPT 26 AND 28 GAUGE SOLID OR STRANDED WIRE. 4. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED. 5. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS REFER TO ELCO SPEC 201-01-100, UL COMPONENTS REFER TO ELCO SPEC 201-01-100UL. 6. APPLICATION NOTES 201-01-124. 7. FOR UL PRODUCT CODES UL REFERENCE E90723 (US AND CANADA). 8. CONNECTOR OUTLINE. 9. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED. SMT PCB LAYOUT PURE TIN PADS Code 001 002 Wire Gauge 28AWG 26AWG A 0.20 0.28 PACKING DETAILS REEL QTY LEADER TRAILER 2 2000 500MM 500MM The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – STANDARD IDC 26-28 AWG: 9175-000 3 Position 26-28 AWG 3 WAY IDC CONNECTOR NOTES: 1. CONNECTOR FOR IDC WIRE TO BOARD CONNECTION. CONTACT MATERIAL: PHOSPHOR BRONZE. INSULATION MATERIAL: HIGH TEMPERATURE NYLON 46. COLOR REFER TO PAGE 1. 2. CONNECTOR DESIGNED TO ACCEPT 26 AND 28 GAUGE SOLID OR STRANDED WIRE. 3. ALL DIMENSIONS FOR REFERENCE UNLESS OTHERWISE STATED. 4. FOR FULL PRODUCT SPECIFICATION ON STANDARD CONNECTORS REFER TO ELCO SPEC 201-01-100, UL COMPONENTS REFER TO ELCO SPEC 201-01-100UL. 5. APPLICATION NOTES 201-01-124. 6. FOR UL PRODUCT CODES UL REFERENCE E90723 (US AND CANADA). 7. CONNECTOR OUTLINE. 8. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED. SMT PCB LAYOUT PURE TIN PADS Code 001 002 Wire Gauge 28AWG 26AWG A 0.20 0.28 PACKING DETAILS REEL QTY LEADER TRAILER 2000 500MM 500MM The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – 3 STANDARD IDC 26-28 AWG: 9175-000 Accessory Cap - Through Wire ACCESSORY CAP – THROUGH WIRE 60-9175-00X-010-X00 CODE NO OF WAYS CODE COLOUR 002 2 000 BLACK 003 3 100 WHITE ASSEMBLED DIMENSIONS NOTES: 1. CAP FOR IDC WIRE TO BOARD CONNECTION, 2 AND 3 WAY, THROUGH WIRE. 2. THROUGH WIRE CAP CAN BE USED AT ANY POSTION ALONG A WIRE. 3. FOR USE WITH STANDARD 9175 IDC CONNECTORS 4. CAP MATERIAL: GLASS FILLED NYLON 46, FOR COLORS SEE PAGE 1. 5. CAPS DESIGNED TO ACCOMMODATE WIRES WITH INSULATION UP TO 1.00MM DIAMETERS. 6. GENERAL TOLERANCE ±0.20. 7. PACKED IN BAGS, 1000 PIECES PER BAG. 8. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED. 4 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – STANDARD IDC 26-28 AWG: 9175-000 Accessory Cap - Wire Stop ACCESSORY CAP – WIRE STOP 60-9175-00X-0XX-010-X99 CODE NO OF WAYS CODE COLOUR 002 2 099 BLACK 003 3 199 WHITE ASSEMBLED DIMENSIONS NOTES: 1. CAP FOR IDC WIRE TO BOARD CONNECTION, 2 AND 3 WAY, WIRE STOP. 2. WIRE STOP CAP FOR USE AT WIRE ENDS, STOP FACE PROTECTS THE WIRE ENDS. 3. FOR USE WITH STANDARD 9175 IDC CONNECTORS 4. CAP MATERIAL: GLASS FILLED NYLON 46, FOR COLORS SEE PAGE 1. 5. CAPS DESIGNED TO ACCOMMODATE WIRES WITH INSULATION UP TO 1.00MM DIAMETERS. 6. GENERAL TOLERANCE ±0.20. 7. PACKED IN BAGS, 1000 PIECES PER BAG. 8. ALL DIMENSIONS ±0.20 UNLESS TOLERANCE SPECIFIED. The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – 5 STANDARD IDC 26-28 AWG: 9175-000 Hand Insertion Tooling / Clearance Area on PCB for Hand Tooling HAND INSERTION TOOLING SINGLE WIRE INSERTION TOOL FOR 26/28 GAUGE WIRE UNIVERSAL HANDLE Details Tool Part Number 6.35 A/F HEX 06-7000-7730-01-000 BIT HOLDER MEDIUM PRODUCTION HIGH PRODUCTION Metal Max Insulation Dia Ø 1.00 Metal/Plastic Max Insulation Dia Ø 1.00 Tool Part Number 06-9175-7017-01-000 Tool Part Number 06-9175-7016-01-000 CLEARANCE AREA ON PCB FOR HAND TOOLING 2 WAY 6 3 WAY The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – STANDARD IDC 26-28 AWG: 9175-000 Insertion Tooling Requires Hand Press with Flat Rock Plates INSERTION TOOLING REQUIRES HAND PRESS WITH FLAT ROCK PLATES 2 WAY TOOL TOOL NUMBER 06-9175-7017-01-002 SKETCH SHOWS PCB RESTRICTED AREAS FOR ASSEMBLY TOOLING 3 WAY TOOL TOOL NUMBER 06-9175-7017-01-003 SKETCH SHOWS PCB RESTRICTED AREAS FOR ASSEMBLY TOOLING NOTES: 1. DIMENSIONS SHOWN ARE REFERENCE DIMENSIONS. 2. MAXIMUM COMPONENT HEIGHT 0.80MM IN THIS AREA. 3. MAXIMUM COMPONENT HEIGHT 4.00MM IN THIS AREA. 4. THE SAME RESTRICTIONS APPLY TO ALL WIRE INSULATION DIAMETERS. ASSEMBLED CONNECTOR STANDARD CONNECTOR CONNECTOR WITH CAP NOTES: 1. ASSEMBLED HEIGHTS INCLUDE A 0.10MM ALLOWANCE FOR PAD AND SOLDER THICKNESS, NO ALLOWANCE HAS BEEN MADE FOR ANY SOLDER RESIST OR OTHER FEATURES. 2. WHEN THE WIRE IS ASSEMBLED THE INSULATION SHOULD BE TRAPPED BY THESE EDGES. The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. TDS-WTB-0021 | Rev 1 – wire-to-board connectors – 7
