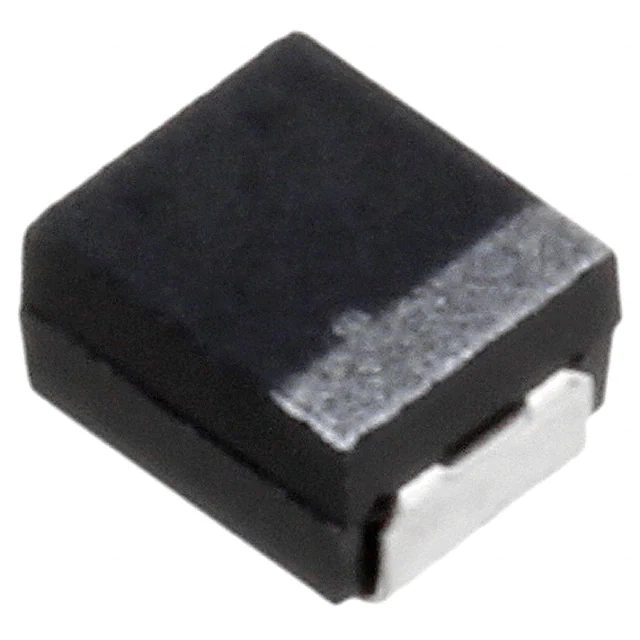

F931D685KBA

F93 Series F93 Series Resin-Molded Chip, Standard Tantalum J-Lead FEATURES • Compliant to the RoHS3 directive 2015/863/EU • SMD J-Lead • 100% Surge Current Tested LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS • Low Power DC/DC CASE DIMENSIONS: millimeters (inches) Code EIA Code EIA Metric L ± 0.20 (0.008) W ± 0.20 (0.008) -0.10 (0.004) H ± 0.20 (0.008) -0.10 (0.004) W1 ± 0.20 (0.008) A ± 0.30 (0.012) -0.20 (0.008) S Min. A 1206 1210 2312 2917 3216-18 3528-21 6032-28 7343-31 3.20 (0.126) 3.50 (0.138) 6.00 (0.236) 7.30 (0.287) 1.60 (0.063) 2.80 (0.110) 3.20 (0.126) 4.30 (0.169) 1.60 (0.063) 1.90 (0.075) 2.60 (0.102) 2.90 (0.114) 1.20 (0.047) 2.20 (0.087) 2.20 (0.087) 2.40 (0.094) 0.80 (0.031) 0.80 (0.031) 1.30 (0.051) 1.30 (0.051) 1.10 (0.043) 1.40 (0.055) 2.90 (0.114) 4.40 (0.173) B C N W1 dimension applies to the termination width for a dimensional area only A, B, C, N CASE Capacitance Value in pF 476 = 47μF LOGO 4V 6.3V 10V Rated Voltage Code A = 10V ID Code 476 A xxxxx Polarity Band (Anode+) G J A 16V 20V 25V C D E 35V V *Capacitance code of “P” case products are as shown below. HOW TO ORDER F93 1A 106 M A  Type Rated Voltage Capacitance Code pF code: 1st two digits represent significant figures, 3rd digit represents multiplier (number of zeros to follow) Tolerance K = ±10% M = ±20% Case Size See table above Packaging See Tape & Reel Packaging Section TECHNICAL SPECIFICATIONS Category Temperature Range Rated Temperature Capacitance Tolerance Dissipation Factor ESR 100kHz Leakage Current -55 to +125°C +85°C ±20%, ±10% at 120Hz Refer to next page Refer to next page After 1 minute’s application of rated voltage, leakage current at 20°C is not more than 0.01CV or 0.5μA, whichever is greater. After 1 minute’s application of rated voltage, leakage current at 85°C is not more than 0.1CV or 5μA, whichever is greater. After 1 minute’s application of derated voltage, leakage current at 125°C is not more than 0.125CV or 6.3μA, whichever is greater. Capacitance Change By Temperature +15% Max. at +125°C +10% Max. at +85°C -10% Max. at -55°C 30 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 090121 – polymer, tantalum and niobium oxide capacitors – F93 Series Resin-Molded Chip, Standard Tantalum J-Lead CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance μF Code 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 334 474 684 105 155 225 335 475 685 106 156 226 336 476 686 107 157 227 337 477 687 Rated Voltage 4V (0G) 6.3V (0J) 10V (1A) 16V (1C) 20V (1D) 25V (1E) A A A A A A/B A/B A/B/C B/C B/C/N C/N C/N N A A A A A/B B A/B/C B/C B/C/N N N N A A A A A/B B B/C C N N A A A A A/B A/B A(M)/B/C B/C C/N C/N C/N N N A A A A A A/B B B/C C C N N N A A A A A/B A A A/B A/B B C B/C C/N C/N 35V (1V) B/C C C/N N N N Released ratings (M tolerance only) Please contact to your local KYOCERA AVX sales office when these series are being designed in your application. RATINGS & PART NUMBER REFERENCE Part Number Case Size Capacitance (μF) Rated Voltage (V) DCL (μA) F930G226#AA F930G336#AA F930G476#AA F930G686#AA F930G107#AA F930G107#BA F930G157#BA F930G227#BA F930G227#CC F930G337#CC F930G477#NC F930G687#NC A A A A A B B B C C N N 22 33 47 68 100 100 150 220 220 330 470 680 4 4 4 4 4 4 4 4 4 4 4 4 0.9 1.3 1.9 2.7 4.0 4.0 6.0 8.8 8.8 13.2 18.8 27.2 F930J106#AA F930J156#AA F930J226#AA F930J336#AA F930J476#AA F930J476#BA F930J686#BA F930J107#AA F930J107#BA F930J107#CC F930J157#BA F930J157#CC F930J227#BA F930J227#CC F930J227#NC F930J337#NC F930J477#NC F930J687#NC A A A A A B B A B C B C B C N N N N 10 15 22 33 47 47 68 100 100 100 150 150 220 220 220 330 470 680 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 0.6 0.9 1.4 2.1 3.0 3.0 4.3 6.3 6.3 6.3 9.5 9.5 13.9 13.9 13.9 20.8 29.6 42.8 F931A475#AA F931A685#AA F931A106#AA F931A156#AA F931A226#AA A A A A A 4.7 6.8 10 15 22 10 10 10 10 10 0.5 0.7 1.0 1.5 2.2 DF @ 120Hz (%) 4 Volt 6 8 18 24 30 14 16 18 12 14 16 18 6.3 Volt 6 6 8 8 18 6 8 35 14 8 18 12 30 14 10 14 16 40 10 Volt 6 6 6 8 12 100kHz RMS Current (mA) ESR @ 100kHz (Ω) 125ºC *1 ΔC/C (%) 25ºC 85ºC MSL 2.5 2.5 2.5 2.5 2.0 0.9 0.7 0.7 0.7 0.7 0.3 0.3 173 173 173 173 194 307 348 348 396 396 707 707 156 156 156 156 174 277 314 314 357 357 636 636 69 69 69 69 77 123 139 139 159 159 283 283 * * * * * * * * * * * * 1 1 1 1 1 1 1 1 1 1 1 1 3.0 2.9 2.5 2.5 2.5 1.0 1.0 2.0 0.9 0.7 0.9 0.7 1.2 0.7 0.5 0.5 0.3 0.3 158 161 173 173 173 292 292 194 307 396 307 396 266 396 548 548 707 707 142 145 156 156 156 262 262 174 277 357 277 357 240 357 493 493 636 636 63 64 69 69 69 117 117 77 123 159 123 159 106 159 219 219 283 283 * * * * * * * ±15 * * * * ±15 * * * * ±15 1 1 1 1 1 1 1 1 1 1 1 1 3 1 1 1 1 3 4.0 3.5 3.0 2.9 2.5 137 146 158 161 173 123 132 142 145 156 55 59 63 64 69 * * * * * 1 1 1 1 1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 012622 – polymer, tantalum and niobium oxide capacitors – 31 F93 Series Resin-Molded Chip, Standard Tantalum J-Lead RATINGS & PART NUMBER REFERENCE 32 100kHz RMS Current (mA) Part Number Case Size Capacitance (μF) Rated Voltage (V) DCL (μA) DF @ 120Hz (%) ESR @ 100kHz (Ω) 25ºC 85ºC F931A226#BA F931A336#AA F931A336#BA F931A476#AA F931A476#BA F931A476#CC F931A686#BA F931A686#CC F931A107#BA F931A107#CC F931A107#NC F931A157#CC F931A157#NC F931A227#CC F931A227#NC F931A337#NC B A B A B C B C B C N C N C N N 22 33 33 47 47 47 68 68 100 100 100 150 150 220 220 330 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 2.2 3.3 3.3 4.7 4.7 4.7 6.8 6.8 10.0 10.0 10.0 15.0 15.0 22.0 22.0 33.0 6 18 8 40 8 6 12 8 18 10 8 14 10 40 12 18 1.9 2.5 1.4 2.0 1.0 0.9 0.9 0.8 1.2 0.7 0.6 0.7 0.6 0.9 0.5 0.5 212 173 246 194 292 350 307 371 266 396 500 396 500 350 548 548 F931C105#AA F931C225#AA F931C335#AA F931C475#AA F931C685#AA F931C106#AA F931C106#BA F931C156#AA F931C156#BA F931C226MAA F931C226#BA F931C226#CC F931C336#BA F931C336#CC F931C476#CC F931C476#NC F931C686#CC F931C686#NC F931C107#CC F931C107#NC F931C157#NC F931C227#NC A A A A A A B A B A B C B C C N C N C N N N 1 2.2 3.3 4.7 6.8 10 10 15 15 22 22 22 33 33 47 47 68 68 100 100 150 220 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 0.5 0.5 0.5 0.8 1.1 1.6 1.6 2.4 2.4 3.5 3.5 3.5 5.3 5.3 7.5 7.5 10.9 10.9 16.0 16.0 24.0 35.2 7.5 5.0 4.5 4.0 3.5 3.0 2.0 3.0 2.0 3.0 1.9 1.1 1.9 1.1 0.9 0.7 0.8 0.6 0.7 0.6 0.6 0.7 F931D225#AA F931D335#AA F931D475#AA F931D475#BA F931D685#AA F931D685#BA F931D106#BA F931D156#CC F931D226#BA F931D226#CC F931D336#CC F931D336#NC F931D476#CC F931D476#NC F931D107#NC A A A B A B B C B C C N C N N 2.2 3.3 4.7 4.7 6.8 6.8 10 15 22 22 33 33 47 47 100 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 0.5 0.7 0.9 0.9 1.4 1.4 2.0 3.0 4.4 4.4 6.6 6.6 9.4 9.4 20.0 F931E105#AA F931E155#AA F931E225#AA F931E335#AA F931E475#AA F931E475#BA F931E106#BA F931E106#CC F931E156#CC F931E226#CC F931E226#NC F931E336#NC F931E476#NC F931E226#NC F931E336#NC F931E476#NC A A A A A B B C C C N N N N N N 1 1.5 2.2 3.3 4.7 4.7 10 10 15 22 22 33 47 22 33 47 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 0.5 0.5 0.6 0.8 1.2 1.2 2.5 2.5 3.8 5.5 5.5 8.3 11.8 5.5 8.3 11.8 16 Volt 4 4 4 6 6 6 6 10 6 15 8 6 8 6 8 6 10 6 15 10 15 25 20 Volt 4 4 6 6 6 6 6 6 8 8 8 6 10 8 12 25 Volt 4 4 6 6 8 6 12 6 8 8 6 8 8 6 8 8 125ºC *1 ΔC/C (%) MSL 190 156 222 174 262 315 277 334 240 357 450 357 450 315 493 493 85 69 99 77 117 140 123 148 106 159 200 159 200 140 219 219 * * * ±15 * * ±15 * ±15 * * * * ±15 * * 1 1 1 1 1 1 1 1 1 1 3 1 1 1 3 1 100 122 129 137 146 158 206 158 206 158 212 316 212 316 350 463 371 500 396 500 500 463 90 110 116 123 132 142 186 142 186 142 190 285 190 285 315 417 334 450 357 450 450 417 40 49 52 55 59 63 82 63 82 63 85 126 85 126 140 185 148 200 159 200 200 185 * * * * * * * * * ±15 * * * * * * ±10 * ±10 * * ±10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 1 3 5.0 4.5 3.0 2.8 3.5 2.5 2.1 1.2 1.9 1.1 1.1 0.7 1.1 0.7 0.5 122 129 158 174 146 184 201 303 212 316 316 463 316 463 548 110 116 142 157 132 166 181 272 190 285 285 417 285 417 493 49 52 63 70 59 74 80 121 85 126 126 185 126 185 219 * * * * * * * * * * * * * * ±10 1 1 1 1 1 1 1 1 1 1 1 1 1 1 3 7.5 6.7 6.3 6.0 4.0 2.8 1.9 1.5 1.2 1.1 0.7 0.7 0.7 0.7 0.7 0.7 100 106 109 112 137 174 212 271 303 316 463 463 463 463 463 463 90 95 98 101 123 157 190 244 272 285 417 417 417 417 417 417 40 42 44 45 55 70 85 108 121 126 185 185 185 185 185 185 * * * * * * * * * * * * * * * * 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 011822 – polymer, tantalum and niobium oxide capacitors – F93 Series Resin-Molded Chip, Standard Tantalum J-Lead RATINGS & PART NUMBER REFERENCE Part Number Case Size Capacitance (μF) Rated Voltage (V) DCL (μA) F931V334#AA F931V474#AA F931V684#AA F931V105#AA F931V155#AA F931V225#AA F931V225#BA F931V335#BA F931V475#BA F931V475#CC F931V685#CC F931V106#CC F931V156#NC F931V226#NC F931V336#NC A A A A A A B B B C C C N N N 0.33 0.47 0.68 1 1.5 2.2 2.2 3.3 4.7 4.7 6.8 10 15 22 33 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 0.5 0.5 0.5 0.5 0.5 0.8 0.8 1.2 1.6 1.6 2.4 3.5 5.3 7.7 11.6 *1: ΔC/C Marked “*” DF @ 120Hz (%) 35 Volt 4 4 4 4 6 6 4 4 8 6 6 6 6 8 8 100kHz RMS Current (mA) ESR @ 100kHz (Ω) 25ºC 85ºC 12.0 10.0 7.6 7.5 7.5 7.0 3.8 3.5 3.1 1.8 1.8 1.6 0.7 0.7 0.7 79 87 99 100 100 104 150 156 166 247 247 262 463 463 463 71 78 89 90 90 93 135 140 149 222 222 236 417 417 417 125ºC *1 ΔC/C (%) MSL 32 35 40 40 40 41 60 62 66 99 99 105 185 185 185 * * * * * * * * * * * * * * * 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 #: "M" for ±20% tolerance, "K" for ± 10% tolerance. Moisture Sensitivity Level (MSL) is defined according to J-STD-020. Item Damp Heat Temperature cycles Resistance soldering heat Surge Endurance All Case (%) ±10 ±5 ±5 ±5 ±10 QUALIFICATION TABLE TEST F93 series (Temperature range -55ºC to +125ºC) Condition Damp Heat (Steady State) At 40°C, 90 to 95% R.H., 500 hours (No voltage applied) Capacitance Change ................... Refer to the table above (*1) Dissipation Factor ........................ Initial specified value or less Leakage Current ........................... Initial specified value or less Temperature Cycles -55°C / +125°C, 30 minutes each, 5 cycles Capacitance Change ................... Refer to the table above (*1) Dissipation Factor ........................ Initial specified value or less Leakage Current ........................... Initial specified value or less Resistance to Soldering Heat 10 seconds reflow at 260°C, 5 seconds immersion at 260°C. Capacitance Change ................... Refer to the table above (*1) Dissipation Factor ........................ Initial specified value or less Leakage Current ........................... Initial specified value or less Surge After application of surge voltage in series with a 33Ω resistor at the rate of 30 seconds ON, 30 seconds OFF, for 1000 successive test cycles at 85ºC, capacitors shall meet the characteristic requirements in the table above. Capacitance Change ................... Refer to the table above (*1) Dissipation Factor ........................ Initial specified value or less Leakage Current ........................... Initial specified value or less Endurance After 2000 hours’ application of rated voltage in series with a 3Ω resistor at 85°C, or derated voltage in series with a 3Ω resistor at 125°C, capacitors shall meet the characteristic requirements in the table above. Capacitance Change .....................Refer to the table above (*1) Dissipation Factor .. ........................Initial specified value or less Leakage Current ............................Initial specified value or less Shear Test After applying the pressure load of 5N for 10±1 seconds horizontally to the center of capacitor side body which has no electrode and has been soldered beforehand on a substrate, there shall be found neither exfoliation nor its sign at the terminal electrode. Terminal Strength Keeping a capacitor surface-mounted on a substrate upside down and supporting the substrate at both of the opposite bottom points 45mm apart from the center of capacitor, the pressure strength is applied with a specified jig at the center of substrate so that the substrate may bend by 1mm as illustrated. Then, there shall be found no remarkable abnormality on the capacitor terminals. Failure Rate 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level. We can supply the type of compliance to AEC-Q200. Please contact to your local KYOCERA AVX sales office when these series are being designed in your application. The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 081821 – polymer, tantalum and niobium oxide capacitors – 33 F93 Series Resin-Molded Chip, Standard Tantalum J-Lead SOLID ELECTROLYTIC CAPACITOR ROADMAP SERIES LINE UP: CONVENTIONAL SMD MnO2 TMJ High Rel. & Special High Temp THH ultra low DCL THJ 200°C THJ F97-HT3 175°C auto 135°C auto TRM TRJ Industrial & Automotive 230°C COTS+ Hermetic professional multianode professional TAJ F91-AJ6 auto TPS auto *T/*U F93-AJ6 auto *T/*U TPS F97 professional auto F98-AJ6 auto TPM multianode Standard TAJ Standard Low Profile High CV 34 TAJ TLN undertab F91 TAC Low Profile microchip TLJ microchip F93 TPC microchip Low ESR F98-AS1 TLC undertab, fused F92 F98 undertab The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 122820 – polymer, tantalum and niobium oxide capacitors –
