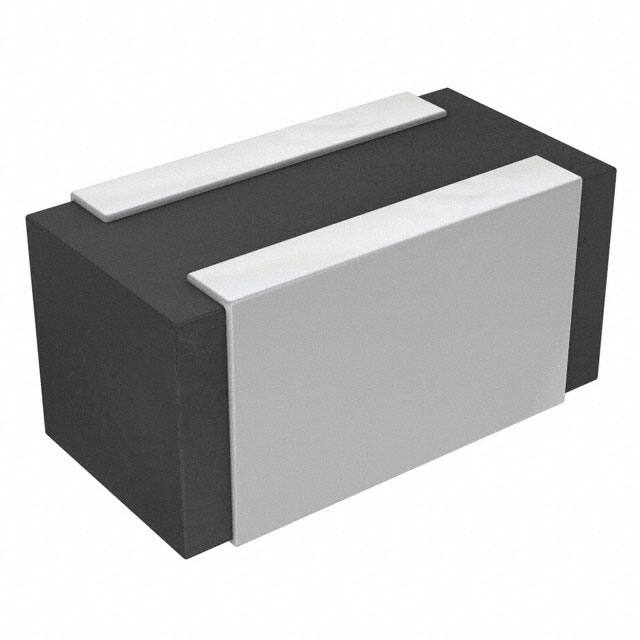

LG126Z223MAT2S1

LGA Low Inductance Capacitors 0204/0306 Land Grid Array Land Grid Array (LGA) capacitors are the latest family of low inductance MLCCs from AVX. These new LGA products are the third low inductance family developed by AVX. The innovative LGA technology sets a new standard for low inductance MLCC performance. Our initial 2 terminal versions of LGA technology deliver the performance of an 8 terminal IDC low inductance MLCC with a number of advantages including: • Simplified layout of 2 large solder pads compared to 8 small pads for IDCs • Opportunity to reduce PCB or substrate contribution to system ESL by using multiple parallel vias in solder pads • Advanced FCT manufacturing process used to create uniformly flat terminations on the capacitor that resist “tombstoning” • Better solder joint reliability APPLICATIONS Semiconductor Packages Board Level Device Decoupling • • • • • • • • • Microprocessors/CPUs Graphics Processors/GPUs Chipsets FPGAs ASICs Frequencies of 300 MHz or more ICs drawing 15W or more Low voltages High speed buses 0306 2 TERMINAL LGA COMPARISON WITH 0306 8 TERMINAL IDC Impedance (Ω) 1 0.1 0.01 0.001 1 10 100 1000 Frequency (MHz) 84 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 051316 LGA Low Inductance Capacitors 0204/0306 Land Grid Array SIZE LG12 (0204) Length mm (in.) 0.50 (0.020) Width mm (in.) 1.00 (0.039) Temp. Char. X5R (D) X7S (Z) Working Voltage 6.3 4 6.3 4 (6) (4) (6) (4) Cap (μF) 0.010 (103) 0.022 (223) 0.047 (473) 0.100 (104) 0.220 (224) 0.330 (334) 0.470 (474) 1.000 (105) 2.200 (225) = X7R LG22 (0306) X6S (W) 6.3 4 (6) (4) 10 (Z) X7R (C) 6.3 4 (6) (4) = X5R 0.76 (0.030) 1.60 (0.063) X5R (D) X7S (Z) 6.3 4 6.3 4 (6) (4) (6) (4) = X7S X6S (W) 6.3 4 (6) (4) = X6S HOW TO ORDER LG Style 1 2 6 Z 104 M A T 2 Case Number of Working Temperature Coded Cap Termination Termination Packaging 100% Sn* Terminals Voltage Characteristic Cap Tolerance Size Style Tape & Reel 2 1 = 0204 M = ±20% A = “U” Land *Contact factory for 2 = 7" Reel 4 = 4V C = X7R other termination 4 = 13" Reel 2 = 0306 6 = 6.3V D = X5R finishes Z = 10V Z = X7S W = X6S S 1 Thickness S = 0.55mm max Number of Capacitors Reverse Geometry LGA LG12, LG22 L iew pV BL To e2 e1 Sid Sid T BL BW W L PART DIMENSIONS MM (INCHES) Series L W T BW BL LG12 (0204) 0.5 ± 0.05 (0.020±0.002) 1.00 ± 0.10 (0.039 ± 0.004) 0.50 ± 0.05 (0.020 ± 0.002) 0.8 ± 0.10 (0.031 ± 0.004) 0.13 ± 0.08 (0.005 ± 0.003) LG22 (0306) 0.76 ± 0.10 (0.030 ± 0.004) 1.60 ± 0.10 (0.063 ± 0.004) 0.50 ± 0.05 (0.020 ± 0.002) 1.50 ±0.10 (0.059 ± 0.004) 0.28 ± 0.08 (0.011 ± 0.003) RECOMMENDED SOLDER PAD DIMENSIONS PL G MM (INCHES) Series PL PW1 G LG12 (0204) 0.50 (0.020) 1.00 (0.039) 0.20 (0.008) LG22 (0306) 0.65 (0.026) 1.50 (0.059) 0.20 (0.008) PW1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 051316 85
