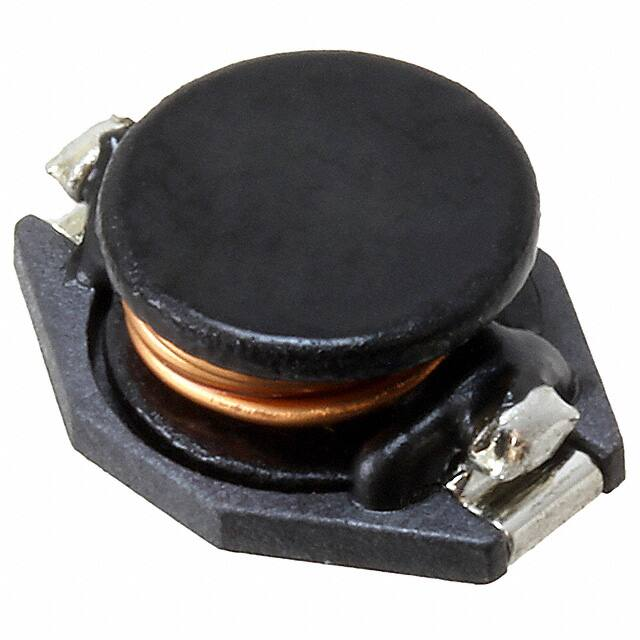

LMax SMD Power Inductor
LMXN Series – Non-Shielded Style C
FEATURES
CHARACTERISTICS
• High power, High saturation inductors
• Ideal inductors for DC-DC converters in notebook
computers, PDAs, Step-up or step-down converters, flash
memory programmers, etc.
• 0705 has ceramic base with gold-plating
• Others have LCP plastic base
• Saturation Rated Current: The current when the inductance becomes
10% lower than its initial value. (Ta=25°C)
• Operating temperature range: -40 ~ 125°C
INDUCTANCE AND RATED
CURRENT RANGES
•
•
•
•
•
•
APPLICATIONS
•
•
•
•
Portable Telephones
Personal Computers
DC/DC Converters
Various Electronic Appliances
0705 1.0μH ~ 1000μH
2.9 ~ 0.10A
1309 4.7μH ~ 1000μH
4.2 ~ 0.29A
13E9 1.0μH ~ 1000μH
9.0 ~ 0.30A
13L9 0.47μH ~ 1000μH 40 ~ 0.8A
1915 1.0μH ~ 1000μH
20 ~ 1.0A
Electrical specifications at 25°C
DIMENSIONS
A
4R7
C
B
EPOXY
D
E
J
F
I
H
mm (inches)
Type
0705
1309
13E9
13L9
1915
A max.
6.60
(0.260)
12.95
(0.510)
12.95
(0.510)
12.95
(0.510)
18.54
(0.730)
B max.
4.45
(0.175)
9.40
(0.370)
9.40
(0.370)
9.40
(0.370)
15.24
(0.600)
C max.
2.92
(0.115)
3.00
(0.118)
5.21
(0.205)
11.43
(0.450)
7.11
(0.280)
D
4.32
(0.170)
7.62
(0.300)
7.62
(0.300)
7.62
(0.300)
12.7
(0.500)
E
1.27
(0.050)
2.54
(0.100)
2.54
(0.100)
2.54
(0.100)
2.54
(0.100)
F
1.02
(0.040)
2.54
(0.100)
2.54
(0.100)
2.54
(0.100)
2.54
(0.100)
H
3.56
(0.140)
2.79
(0.110)
2.79
(0.110)
2.79
(0.110)
2.79
(0.110)
M
R04
C
T
Inductance
Style
Termination
I
1.40
(0.055)
2.92
(0.115)
2.92
(0.115)
2.92
(0.115)
2.92
(0.115)
J
4.06
(0.160)
7.37
(0.290)
7.37
(0.290)
7.37
(0.290)
12.45
(0.490)
HOW TO ORDER
LM
Family
LM = Power Inductor
XN
Series
XN = Non-Shielded
1309
Size
1309 = 13x9xh
13E9 = 13x9xE(h)
(h = see catalog)
Tolerance
M = ±20%
N = ±30%
R04 = 0.039μH
R39 = 0.390μH
3R9 = 3.900μH
390 = 39.00μH
391 = 390.0μH
392 = 3900μH
T = Sn Plate
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
A
S
Special
Packaging
A = Standard
S = 13" Reel
3
LMax SMD Power Inductor
LMXN Series – Non-Shielded Style C
ELECTRICAL CHARACTERISTICS
0705
Codes
1R0
1R5
2R2
3R3
4R7
6R8
8R2
100
150
220
330
470
680
101
151
221
331
471
681
102
L (μH)
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR (Ω) max.
0.05
0.06
0.07
0.08
0.09
0.13
0.16
0.16
0.23
0.37
0.51
0.64
0.86
1.27
2.00
3.11
3.80
5.06
9.20
13.8
I sat (A) max*
2.90
2.60
2.30
2.00
1.50
1.20
1.15
1.10
0.90
0.70
0.58
0.50
0.40
0.31
0.27
0.22
0.18
0.16
0.14
0.10
Codes
4R7
6R8
100
150
220
330
470
680
101
151
221
331
471
681
102
L (μH)
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR (Ω) max.
0.036
0.060
0.085
0.12
0.18
0.25
0.32
0.54
0.69
0.94
1.60
2.15
3.30
4.40
7.00
I sat (A) max*
4.20
3.90
2.70
2.30
1.80
1.60
1.30
1.10
0.87
0.74
0.56
0.50
0.40
0.33
0.29
10309
*Saturation Current: The current when the inductance becomes 10% lower than its initial value. (Ta=25°C)
4
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
LMax SMD Power Inductor
LMXN Series – Non-Shielded Style C
13E9
Codes
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
680
101
151
221
331
471
681
102
L (μH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR (Ω) max.
0.009
0.010
0.012
0.015
0.018
0.027
0.038
0.046
0.085
0.100
0.140
0.200
0.280
0.400
0.610
1.020
1.270
2.020
3.000
I sat (A) max*
9.00
8.00
7.00
6.40
5.40
4.60
3.80
3.00
2.60
2.00
1.60
1.40
1.20
1.00
0.80
0.60
0.50
0.40
0.30
Codes
R47
R82
1R2
1R5
2R2
3R5
4R7
5R6
6R8
8R2
100
150
220
330
470
680
101
151
221
331
471
681
102
L (μH)
0.47
0.82
1.2
1.5
2.2
3.5
4.7
5.6
6.8
8.2
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
N
N
N
N
N
N
N
N
N
N
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR (Ω) max.
0.008
0.009
0.010
0.010
0.012
0.015
0.020
0.022
0.030
0.033
0.040
0.050
0.066
0.080
0.11
0.17
0.22
0.34
0.44
0.70
0.95
1.20
2.00
I sat (A) max*
40.0
34.7
28.4
25.7
23.0
21.0
18.0
16.0
15.0
10.0
8.00
7.00
5.50
4.00
3.80
3.00
2.50
2.00
1.60
1.20
1.00
1.00
0.80
13L9
*Saturation Current: The current when the inductance becomes 10% lower than its initial value. (Ta=25°C)
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
5
LMax SMD Power Inductor
LMXN Series – Non-Shielded Style C
1915
Codes
1R0
2R2
3R3
5R6
100
150
220
330
470
680
101
151
221
331
471
681
102
L (μH)
1.0
2.2
3.3
5.6
10
15
22
33
47
68
100
150
220
330
470
680
1000
Tolerance
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR (Ω) max.
0.009
0.014
0.018
0.020
0.031
0.036
0.047
0.066
0.095
0.130
0.190
0.250
0.380
0.560
0.850
1.100
1.800
*Saturation Current: The current when the inductance becomes 10% lower than its initial value. (Ta=25°C)
6
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
I sat (A) max*
20
16
14
12
10
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
