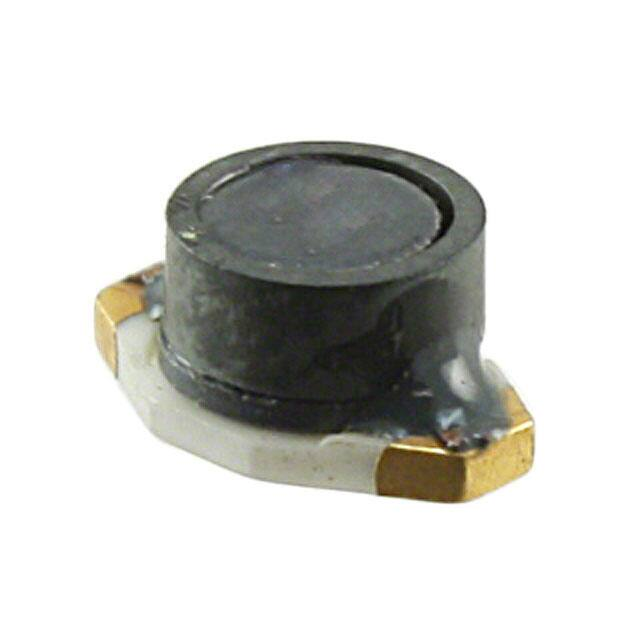

LMax SMD Power Inductor
LMXS Series – Shielded Style D
FEATURES
CHARACTERISTICS
• Magnetically shielded against radiation
• 0704 can help achieve longer battery life significantly in
handheld communication devices.
• 1309 / 1915 designed for the higher current
requirements of portable computers.
• 0704 hasceramic base with gold–plating
• 1309 / 1915 has LCP plastic base
• Saturation Rated Current (IDC): The DC current when the inductance
becomes 10% lower than its initial value. (Ta=25°C)
• Temperature Rise Current (I rms): The actual current when temperature
of coil becomes Δ40°C. (Ta=25°C)
• Operating temperature range: -40 ~ 85°C
INDUCTANCE AND RATED
CURRENT RANGES
APPLICATIONS
•
•
•
•
•
•
•
•
Portable Telephones
Personal Computers
Other Various Electronic Appliances
DC/DC Converters, etc.
0704 1.0 ~ 10000μH
3.0 ~ 0.02A
1309 1.0 ~ 1000μH
5.0 ~ 0.17A
1915 10 ~ 1000μH
3.9 ~ 0.53A
Electrical specifications at 25°C
DIMENSIONS
EPOXY
680
F
D
I
E
J
H
mm (inches)
Type
0704
1309
1915
A max.
6.60
(0.260)
12.95
(0.510)
18.54
(0.730)
B max.
4.45
(0.175)
9.40
(0.370)
15.24
(0.600)
C max.
2.92
(0.115)
5.21
(0.205)
7.62
(0.300)
D
4.32
(0.170)
7.62
(0.300)
12.70
(0.500)
E
1.27
(0.050)
2.54
(0.100)
2.54
(0.100)
F
1.02
(0.040)
2.54
(0.100)
2.54
(0.100)
H
3.56
(0.140)
2.79
(0.110)
2.79
(0.110)
I
1.40
(0.055)
2.92
(0.115)
2.92
(0.115)
J
4.06
(0.160)
7.37
(0.290)
12.45
(0.490)
HOW TO ORDER
LM
Family
LM = Power Inductor
XS
Series
XS = Shielded
0704
M
Size
Tolerance
0704 = 7x4xh
1309 = 13x9xh
(h = see catalog)
M = ±20%
R04
D
T
Inductance
Style
Termination
R04 = 0.039μH
R39 = 0.390μH
3R9 = 3.900μH
390 = 39.00μH
391 = 390.0μH
392 = 3900μH
T = Sn Plate
A
S
Special
Packaging
A = Standard
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
S = 13" Reel
19
LMax SMD Power Inductor
LMXS Series – Shielded Style D
ELECTRICAL CHARACTERISTICS
0704
Codes
L
(μH)
Tolerance
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
680
101
151
221
331
471
681
102
152
222
332
472
682
103
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
2200
3300
4700
6800
10000
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
Test Condition
L
Q
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
200KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR
(Ω) max.
0.040
0.045
0.050
0.055
0.060
0.065
0.075
0.090
0.11
0.19
0.23
0.29
0.48
0.59
0.90
1.40
1.80
2.20
3.40
4.20
8.50
11.0
13.9
25.0
32.8
SRF ref
(MHz)
Q min.
I rms
(A) max.
250
125
120
120
105
50
38
33
25
20
20
15
10
9
6
5
4
3
2
2
2
1
1
1
0.8
30
30
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
40
50
50
50
50
50
50
3.00
2.30
1.80
1.60
1.40
1.20
1.00
0.80
0.70
0.60
0.50
0.40
0.30
0.26
0.22
0.20
0.19
0.18
0.15
0.12
0.10
0.08
0.06
0.04
0.02
1309
20
Codes
L
(μH)
Tolerance
Test
Condition
1R0
1R5
2R2
3R3
4R7
6R8
100
150
220
330
470
680
101
151
221
102
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
1000
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
M
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR
(Ω) max.
0.021
0.022
0.032
0.039
0.054
0.075
0.101
0.150
0.207
0.334
0.472
0.660
1.110
1.550
2.000
8.300
SRF ref
(MHz)
IDC
(A) max
I rms
(A) max.
140
120
80
70
40
38
35
25
19
15
13
10
7
6
5
2
5.6
5.2
5.0
3.9
3.2
2.8
2.4
2.0
1.6
1.4
1.0
0.9
0.8
0.6
0.5
0.32
5.0
4.5
3.8
3.3
2.7
2.2
2.0
1.5
1.3
1.1
0.8
0.7
0.6
0.5
0.37
0.17
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
LMax SMD Power Inductor
LMXS Series – Shielded Style D
1915
Codes
L
(μH)
Tolerance
Test
Condition
100
150
220
330
470
680
101
151
221
331
471
681
102
10
15
22
33
47
68
100
150
220
330
470
680
1000
M
M
M
M
M
M
M
M
M
M
M
M
M
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
100KHz, 0.1V
DCR
(Ω) max.
0.040
0.048
0.059
0.075
0.097
0.138
0.207
0.293
0.470
0.780
1.080
1.400
2.010
SRF ref
(MHz)
30
20
18
14
10
9.0
7.0
6.0
5.0
4.0
3.0
2.5
2.0
IDC
(A) max.
8.0
7.00
6.00
5.00
4.00
3.00
2.40
2.10
1.90
1.10
1.10
0.96
0.80
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
102720
I rms
(A) max.
3.9
3.4
3.1
2.8
2.4
2.0
1.7
1.3
1.1
0.86
0.73
0.64
0.53
21
