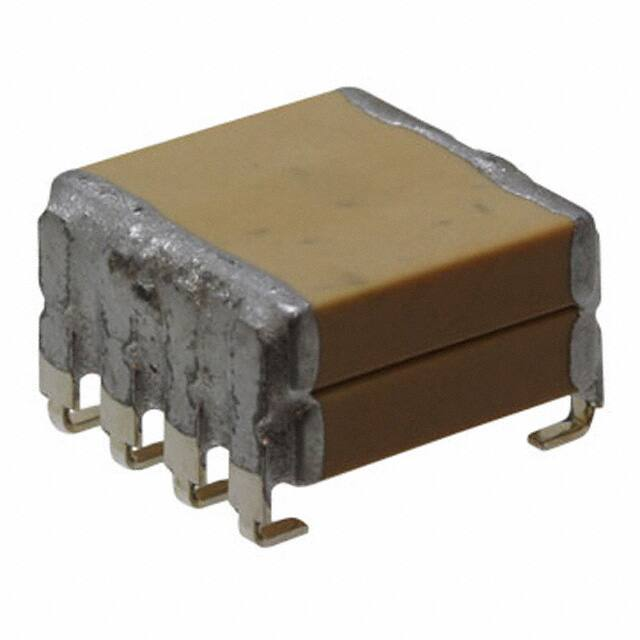

SMPS Capacitors RH Style - Surface Mount ‘J’ Lead Range The RH range uses high volumetric efficient X7R capacitors in a “J” style lead frame. The range of components are uncoated and are suitable for input or output filter capacitors in high frequency DC-DC convertor, automotive, telecom, industrial and military applications. When large ceramic capacitors are used in applications they can easily be affected by stresses caused by temperature variations, thermal shock, mechanical vibrations and PCB bend movement. The RH range is designed with a “J” type lead frame which greatly reduces all of these thermo mechanical stresses experienced by large capacitors. The RH range allows the capacitors to be doubled stacked so a higher volumetric efficiency can be achieved by the customer and this saves PCB space. FEATURES • • • • RH 21/22 are AEC-Q200 compliant. RH range has low ESR/ESL capability PCB space saving using double stacked MLCCs Enhanced thermo mechanical stress resistance Note: AVX does not recommend or advise the use of adhesives to secure the RH components to the PCB. ELECTRICAL SPECIFICATIONS Typical ESR (mΩ) 3 μF, 100V X7R ESR @ 100KHz Temperature Coefficient CECC 30 000, (4.24.1) X7R: C Temperature Characteristic - ± 15%, -55ºC to +125ºC Capacitance Test Measured at 1 VRMS max at 1KHz Life Test (1000 hrs) CECC 30 000 (4.23) 200% rated voltage at +125ºC. (500 Volt units @ 120% rated voltage) Thermal Shock IEC 68.2.14 -55ºC to +125ºC, 5 cycles Resistance to Solder Heat IEC 68.2.20 DIMENSIONS: MILLIMETERS (INCHES) 12 ESR @ 1MHz 14 DIMENSIONS Dissipation Factor 25°C 2.5% max at 1KHz, 1 VRMS max Insulation Resistance 25°C 100K megohms or 1000 megohms-μF, whichever is less Dielectric Withstanding Voltage 25°C (Flash Test) 250% rated voltage for 5 seconds with 50 mA charging current. (500 Volt units @ 150% rated voltage) 17 ESR @ 500KHz max millimeters (inches) Style L max W max H max S ± 0.1 (±0.004) RH21 7.20 (0.283) 5.40 (0.213) 4.60 (0.181) 2.50 (0.098) RH22 7.20 (0.283) 5.40 (0.213) 7.50 (0.295) 2.50 (0.098) RH31 7.62 (0.300) 7.00 (0.270) 5.08 (0.200) 5.08 (0.200) RH32 7.62 (0.300) 7.00 (0.270) 8.13 (0.320) 5.08 (0.200) RH41 9.20 (0.362) 8.70 (0.342) 4.90 (0.192) 5.08 (0.200) RH42 9.20 (0.362) 8.70 (0.342) 8.20 (0.323) 5.08 (0.200) RH51 10.7 (0.421) 10.7 (0.421) 4.90 (0.192) 7.62 (0.300) RH52 10.7 (0.421) 10.7 (0.421) 8.20 (0.323) 7.62 (0.300) RH61 14.9 (0.586) 13.6 (0.535) 4.90 (0.192) 10.2 (0.400) RH62 14.9 (0.586) 13.6 (0.535) 8.20 (0.323) 10.2 (0.400) h 1.50 ±0.30 (0.059 ±0.012) 1.50 ±0.30 (0.059 ±0.012) 1.78 ±0.25 (0.070 ±0.010) 1.78 ±0.25 (0.070 ±0.010) 1.60 ±0.10 (0.062 ±0.004) 1.60 ±0.10 (0.062 ±0.004) 1.60 ±0.10 (0.062 ±0.004) 1.60 ±0.10 (0.062 ±0.004) 1.60 ±0.10 (0.062 ±0.004) 1.60 ±0.10 (0.062 ±0.004) Performance of SMPS capacitors can be simulated by downloading SpiCalci software program http://www.avx.com/download/software/SpiCalci-AVX.zip Custom values, ratings and configurations are also available. 64 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 090518 No. of leads per side 2 2 3 3 3 3 4 4 5 5 SMPS Capacitors RH Style - Surface Mount ‘J’ Lead Range X7R STABLE DIELECTRIC RH21/RH22 Style RH31/RH32 Style RH41/RH42 Style RH51/RH52 Style RH61/RH62 Style Voltage DC Cap μF 0.047 0.056 0.068 0.082 0.1 0.12 0.15 0.18 0.22 0.27 0.33 0.39 0.47 0.56 0.68 0.78 0.82 1 1.2 1.5 1.8 2.2 3 3.3 3.9 4.7 5.6 6.8 8.2 10 12 15 18 22 33 47 68 25 50 100 200 500 50 100 200 500 50 100 200 500 50 100 200 500 100 200 500 RH31 RH32 RH41 RH31 RH41 RH42 RH51 RH32 RH52 RH31 RH41 RH32 RH21 RH52 RH32 RH42 RH22 DEV RH51 RH52 RH22 RH51 RH52 DEV DEV DEV BME PME PME PACKAGING Qty/Reel 13” RH52 RH61 RH51 RH62 RH52 BME Available in RoHS and Non-RoHS PME Available Only in Non-RoHS Max. Qty/Waffle Pack Please contact plant for details HOW TO ORDER RH 31 5 C 225 M A 3 Style Code Size Code Voltage Code Dielectric Code Capacitance Code Capacitance Tolerance Specification Code Package Code C = X7R (2 significant digits + no. of zeros) eg. 105 = 1 uF 104 = 0.1 uF RH62 DEV 800 270 500 270 800 108 500 108 see note 108 500 100 750 88 see note 88 500 42 see note 42 Note: T&R is not yet available. Contact manufacturing for further information as this will be available in the future. 3 = 25V 5 = 50V 1 = 100V 2 = 200V 7 = 500V RH61 BME Development For availability of further parts in the RH21/RH22 Series, contact manufacturing. Style RH21 RH22 RH31 RH32 RH41 RH42 RH51 RH52 RH61 RH62 RH62 RH62 RH51 RH21 RH22 RH61 RH41 RH42 RH21 RH61 RH51 RH42 RH31 BME (see table above) 50 K = ±10% M = ±20% A = N o n customized 3 = Waffle Pack A = Tape & Reel 0 Lead Dia. Code 0 = Standard R = RoHS Compliant The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 072221 A 3 Lead Space Code A = Standard Lead Style Code 3 = ‘J’ Lead 65
