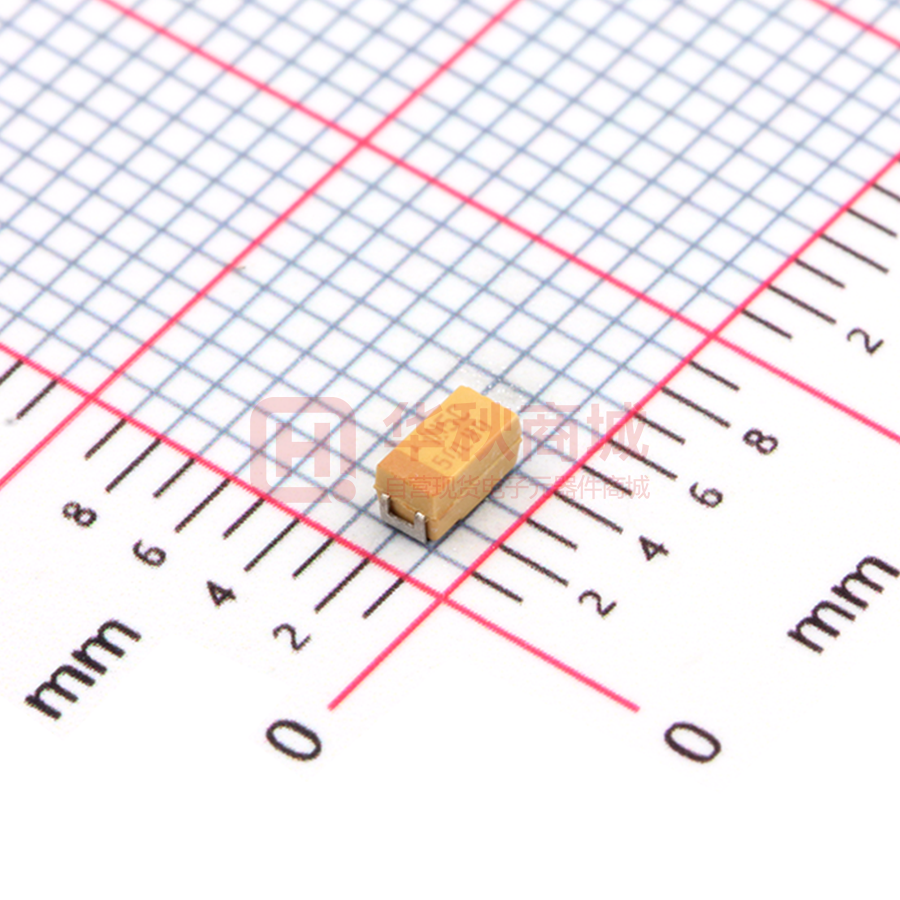

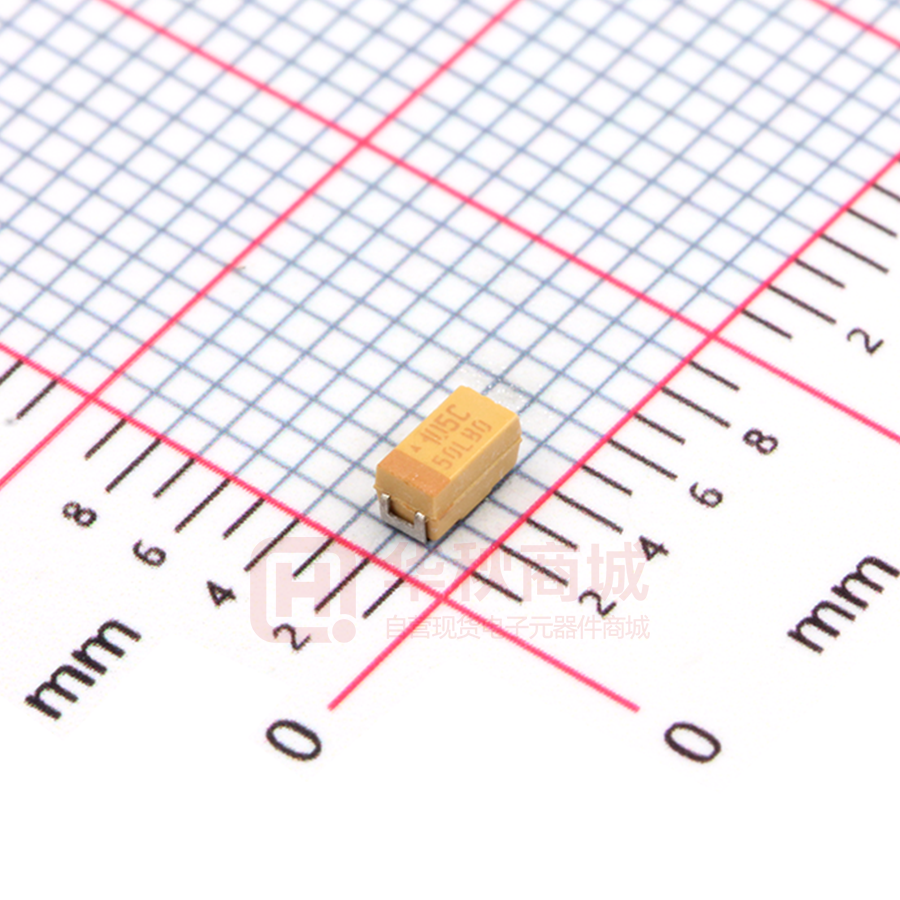

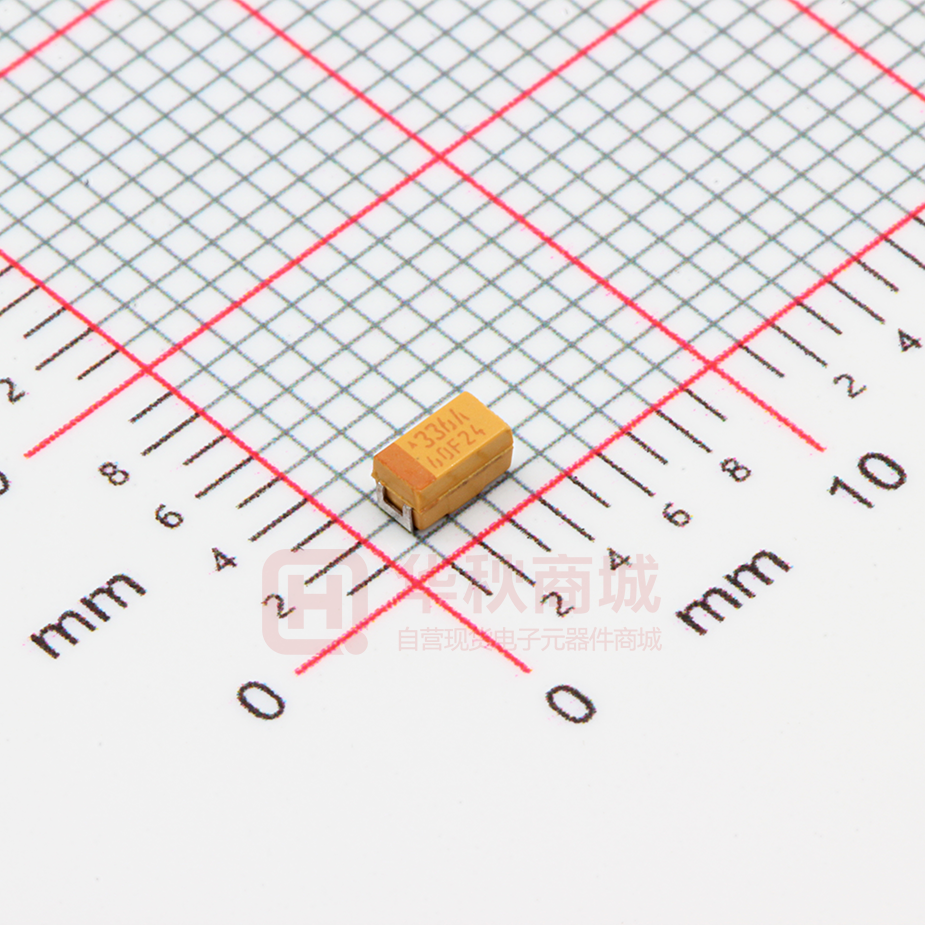

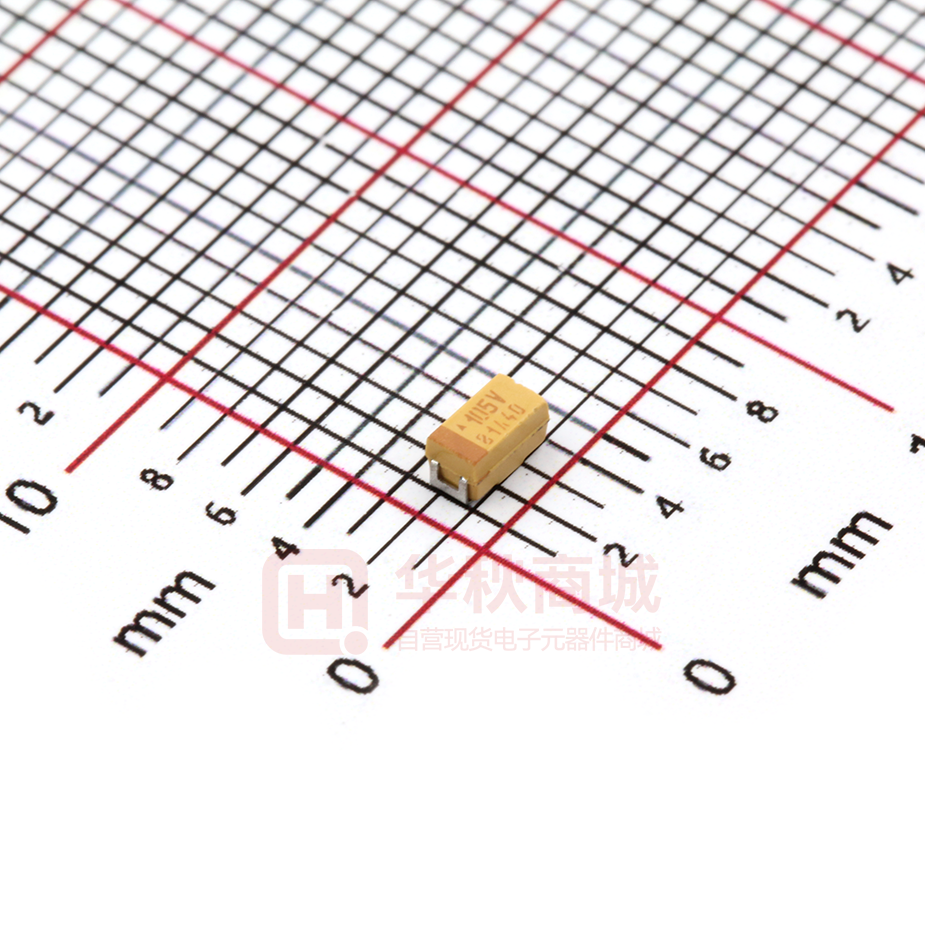

TAJA105K016RNJ

Resin Molded Solid Tantalum Chip, J-Lead TAJ – Standard & Low Profile TAJ Series Standard and Low Profile Tantalum Capacitors FEATURES • General Purpose SMT Chip Tantalum Series • 100% Surge Current Tested • 17 Case Sizes Available, Standard and Low Profile Down to 1mm Maximum Height • CV Range: 0.10 - 2200μF / 2.5 - 50V • J-Lead Construction APPLICATIONS • General Low Power DC/DC and LDO • Entertainment / Infotainment Systems • Height Restricted Design STANDARD CASE DIMENSIONS: MARKING A, B, C, D, E, F, H, K, S, T, U, V, W, X, Y CASE AVX LOGO Rated Voltage Code A = 10V XXXXX Capacitance Value in pF 106 = 10µF 106 J C Type Case Size See table above F H K EIA Metric 6032-20 3528-15 3216-10 L±0.20 (0.008) 6.00 (0.236) 3.50 (0.138) 3.20 (0.126) W+0.20 (0.008) -0.10 (0.004) 3.20 (0.126) 2.80 (0.110) 1.60 (0.063) 2.00 (0.079) 1.50 (0.059) 1.00 (0.039) P 0805 2012-15 2.05 (0.081) 1.35 (0.053) 1.50 (0.059) R 0805 2012-12 2.05 (0.081) 1.30 (0.051) 1.20 (0.047) H Max. S 1206 3216-12 3.20 (0.126) 1.60 (0.063) 1.20 (0.047) T 1210 3528-12 3.50 (0.138) 2.80 (0.110) 1.20 (0.047) W 2312 6032-15 6.00 (0.236) 3.20 (0.126) 1.50 (0.059) X 2917 7343-15 7.30 (0.287) 4.30 (0.169) 1.50 (0.059) Y 2917 7343-20 7.30 (0.287) 4.30 (0.169) 2.00 (0.079) W1 dimension applies to the termination width for A dimensional area only. Rated Voltage Code J = 6.3V HOW TO ORDER TAJ 106 M 035 Capacitance Code Tolerance Rated DC Voltage pF code: 1st two digits represent significant figures 3rd digit represents multiplier (number of zeros to follow) K = ±10% M = ±20% TECHNICAL SPECIFICATIONS 002 = 2.5Vdc 004 = 4Vdc 006 = 6.3Vdc 010 = 10Vdc 016 = 16Vdc 020 = 20Vdc 025 = 25Vdc 035 = 35Vdc 050 = 50Vdc W1±0.20 (0.008) 2.20 (0.087) 2.20 (0.087) 1.20 (0.047) 1.00 ±0.10 (0.039±0.004) 1.00 ±0.10 (0.039±0.004) 1.20 (0.047) 2.20 (0.087) 2.20 (0.087) 2.40 (0.094) 2.40 (0.094) A+0.30 (0.012) -0.20 (0.008) 1.30 (0.051) 0.80 (0.031) 0.80 (0.031) 2.90 (0.114) 1.40 (0.055) 1.10 (0.043) 0.50 (0.020) 0.85 (0.033) 0.50 (0.020) 0.85 (0.033) 0.80 (0.031) 0.80 (0.031) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.10 (0.043) 1.40 (0.055) 2.90 (0.114) 4.40 (0.173) 4.40 (0.173) – Packaging Specification Suffix Additional characters may be added for special requirements R = Pure Tin 7" Reel S = Pure Tin 13" Reel A = Gold Plating 7" Reel B = Gold Plating 13" Reel H = Tin Lead 7" Reel K = Tin Lead 13" Reel H, K = Non RoHS A, B, H, K = please contact manufacturer All technical data relate to an ambient temperature of +25°C 0.10 μF to 2200 μF NJ = Standard Suffix V = Dry pack Option (selected ratings only) ±10%; ±20% ≤ +85°C: 2.5 4 6.3 10 16 20 25 35 ≤ +125°C: 1.7 2.7 4 7 10 13 17 23 33 Surge Voltage (VS) ≤ +85°C: 3.3 5.2 8 13 20 26 32 46 65 Surge Voltage (VS) ≤ +125°C: 2.2 3.4 5 8 13 16 20 28 40 Category Voltage (VC) S Min. NJ Capacitance Range: Capacitance Tolerance: S Min. 1.10 (0.043) 1.40 (0.055) 2.90 (0.114) 4.40 (0.173) 4.40 (0.173) 4.40 (0.173) 4.40 (0.173) R Technical Data: Rated Voltage (VR) A+0.30 (0.012) -0.20 (0.008) 0.80 (0.031) 0.80 (0.031) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) millimeters (inches) EIA Code 2312 1210 1206 Code ID Code P, R CASE Polarity Band (Anode+) W1±0.20 (0.008) 1.20 (0.047) 2.20 (0.087) 2.20 (0.087) 2.40 (0.094) 2.40 (0.094) 3.10 (0.122) 3.10 (0.122) LOW PROFILE CASE DIMENSIONS: Capacitance Value in pF 227 = 220µF 227 A Polarity Band (Anode+) millimeters (inches) EIA EIA L±0.20 W+0.20 (0.008) H+0.20 (0.008) Code Code Metric (0.008) -0.10 (0.004) -0.10 (0.004) A 1206 3216-18 3.20 (0.126) 1.60 (0.063) 1.60 (0.063) B 1210 3528-21 3.50 (0.138) 2.80 (0.110) 1.90 (0.075) C 2312 6032-28 6.00 (0.236) 3.20 (0.126) 2.60 (0.102) D 2917 7343-31 7.30 (0.287) 4.30 (0.169) 2.90 (0.114) E 2917 7343-43 7.30 (0.287) 4.30 (0.169) 4.10 (0.162) U 2924 7361-43 7.30 (0.287) 6.10 (0.240) 4.10 (0.162) V 2924 7361-38 7.30 (0.287) 6.10 (0.240) 3.55 (0.140) W1 dimension applies to the termination width for A dimensional area only. Temperature Range: -55°C to +125°C Reliability: 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level Qualification: CECC 30801 - 005 issue 2 EIA 535BAAC for standard case sizes Termination Finished: Sn Plating (standard), Gold and SnPb Plating upon request 50 For AEC-Q200 availability, please contact AVX The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 102020 5 TAJ Series Standard and Low Profile Tantalum Capacitors STANDARD TANTALUMS CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance μF Code 0.10 0.15 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 1500 2200 104 154 224 334 474 684 105 155 225 335 475 685 106 156 226 336 476 686 107 157 227 337 477 687 108 158 228 2.5V (e) A A A A/B B B/D D C/D C/D/E D(M)/E D/E/V(M) V(M) 4V (G) A A A A/B A/B A/B A/B/C B/C B/C/D C/D C/D/E D/E D/E/V E/V(M) 6.3V (J) A A A A/B A/B A/B A/B/C A/B/C A/B/C/D B/C/D B/C/D B(M)/C/D C/D/E C/D/E D/E/V D/E/V E(M)/V(M) Rated voltage DC (VR) to 85°C 10V (A) 16V (C) 20V (D) A A A A/B A/B A/B/C A/B/C A/B/C A/B/C/D B/C/D B/C/D B/C/D/E C/D/E C/D/E D/E/V E/U/V E(M)/V(M) A A A/B A/B A/B A/B/C A/B/C A/B/C A(M)/B/C/D B/C/D C/D C/D C/D/E D/E/V D(M)/E/V E(M) A A A/B A/B A/B/C A/B/C B/C B/C/D B/C/D C/D C/D/E C(M)/D/E D/E/V E/V 25V (E) A A A A/B A/B A/B/C A/B/C B/C B/C/D C/D C/D C/D/E D/E D/E/V E/V V(M) 35V (V) 50V (T) 35V (V) 50V (T) A A A A A/B A/B A/B A/B/C A/B/C B/C B/C/D C/D C/D/E C/D D/E D/E/V D/E/V V A A/B A/B A/B A/B/C A/B/C A/B/C B/C/D B/C/D C/D C/D C/D D/E/V D/E/V V LOW PROFILE TANTALUMS CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance μF Code 0.10 0.15 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 104 154 224 334 474 684 105 155 225 335 475 685 106 156 226 336 476 686 107 157 227 337 477 687 108 2.5V (e) R R R/S R P/R K/P/S P(M)/S T T/W TM/W W/Y W(M)/Y F/Y Y Y(M) 4V (G) R/S R/S R/S R/S/T R/S/T R/S/T K/P/R/S/T K/P(M)/S/T/W T/W T/W T(M)/W W/Y W/X/Y F/X/Y Y Y(M) 6.3V (J) R/S R/S R/S R/S/T R/S/T P/R/S/T K/P/R/S/T K/P(M)/S/T/W T/W T/W W W/Y W/X/Y F/X/Y Y Y Rated voltage DC (VR) to 85°C 10V (A) 16V (C) 20V (D) R/S R/S R/S K/R/S/T R/S/T P/R/S/T K/P/R(M)/S/T S/T/W T/W W H/W/Y W/Y W/X/Y F/XM/Y Y R/S R/S/T R/S R/S/T R/S/T K/P/S/T S/T T/W T(M)/W W W/Y W/X/Y F/X/Y F(M)/Y Y(M) R/S R/S R/S R/S R/S R/S/T R/S/T P/R/S/T P/R/S/T T T T W W W/Y X/Y X/Y Y 25V (E) R R R R/S R/S P/R/S P/S/T T T/W T/W W W Y F/Y F/Y Y R/S R/S R/S R/S R/S/T P/S/T P/S/T T T W W Y X/Y Y Y Released ratings (M tolerance only) Note: Voltage ratings are minimum values. AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards. 6 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 S S P/R/S P/R(M)/S/T S/T W W W Y X/Y Y TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) AVX Part No. Case Size Capacitance (μF) TAJR475*002#NJ TAJR685*002#NJ TAJR106*002#NJ TAJS106*002#NJ TAJR156*002#NJ TAJP226*002#NJ TAJR226*002#NJ TAJA336*002#NJ TAJK336*002#NJ TAJP336*002#NJ TAJS336*002#NJ TAJA476*002#NJ TAJP476M002#NJ TAJS476*002#NJ TAJA686*002#NJ TAJT686*002#NJ TAJA107*002#NJ TAJB107*002#NJ TAJT107*002#NJ TAJW107*002#NJ TAJB157*002#NJ TAJT157M002#NJ TAJW157*002#NJ TAJB227*002#NJ TAJD227*002#NJ TAJW227*002#NJ TAJY227*002#NJ TAJD337*002#NJ TAJW337M002#NJ TAJY337*002#NJ TAJC477*002#NJ TAJD477*002#NJ TAJF477*002#NJ TAJY477*002#NJ TAJC687*002#NJ TAJD687*002#NJ TAJE687*002#NJ TAJY687*002#NJ TAJD108M002#NJ TAJE108*002#NJ TAJY108M002#NJ TAJD158*002#NJ TAJE158*002#NJ TAJV158M002#NJ TAJV228M002#NJ R R R S R P R A K P S A P S A T A B T W B T W B D W Y D W Y C D F Y C D E Y D E Y D E V V 4.7 6.8 10 10 15 22 22 33 33 33 33 47 47 47 68 68 100 100 100 100 150 150 150 220 220 220 220 330 330 330 470 470 470 470 680 680 680 680 1000 1000 1000 1500 1500 1500 2200 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR225*004#NJ TAJS225*004#NJ TAJR335*004#NJ TAJS335*004#NJ TAJR475*004#NJ TAJS475*004#NJ TAJR685*004#NJ TAJS685*004#NJ TAJT685*004#NJ TAJA106*004#NJ TAJR106*004#NJ TAJS106*004#NJ TAJT106*004#NJ TAJA156*004#NJ TAJR156*004#NJ TAJS156*004#NJ TAJT156*004#NJ TAJA226*004#NJ TAJK226*004#NJ TAJP226*004#NJ TAJR226*004#NJ TAJS226*004#NJ TAJT226*004#NJ TAJA336*004#NJ R S R S R S R S T A R S T A R S T A K P R S T A 2.2 2.2 3.3 3.3 4.7 4.7 6.8 6.8 6.8 10 10 10 10 15 15 15 15 22 22 22 22 22 22 33 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 2.5 Volt @ 85°C DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) 100kHz RMS Current (mA) 25ºC 85ºC 125ºC MSL 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.7 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.7 0.7 0.9 1.2 1.2 1.4 1.4 2.5 2.5 2.5 2.5 3 3.8 3.8 4.4 5.5 5.5 5.5 8.2 8.2 8.2 9.4 11.6 11.8 11 17 17 17 17 25 20 25 37.5 37 30 55 6 6 8 6 8 8 8 8 8 8 8 6 12 8 8 8 30 8 15 8 10 18 8 16 8 8 8 8 12 8 12 8 12 12 18 16 10 12 20 14 30 60 20 20 50 20 20 4.5 8 4.1 3.5 3.8 1.7 1.7 3.5 1.5 3 3.2 1.6 1.5 1.5 1.4 1.4 1.3 0.4 1.6 1.2 0.3 1.6 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.3 0.2 0.2 0.2 0.2 0.2 0.2 0.4 0.2 0.2 0.2 0.2 0.2 52 52 111 90 116 131 120 210 196 131 208 158 137 202 224 231 231 246 248 474 230 258 548 230 707 548 645 707 548 645 742 866 577 791 742 866 908 791 866 642 791 866 908 1118 1118 47 47 99 81 104 118 108 189 176 118 187 142 123 181 201 208 208 222 223 427 207 232 493 207 636 493 581 636 493 581 667 779 520 712 667 779 817 712 779 578 712 779 817 1006 1006 21 21 44 36 46 52 48 84 78 52 83 63 55 81 89 92 93 99 99 190 92 103 219 92 283 219 258 283 219 258 297 346 231 316 297 346 363 316 346 257 316 346 363 447 447 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 11) 1 1 1 11) 1 1 11) 11) 1 11) 11) 1 11) 11) 11) 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 2.7 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.9 0.9 0.9 0.9 0.9 0.9 1.3 6 6 6 6 6 6 6 6 6 6 6 6 6 6 8 8 6 6 8 8 8 8 6 6 25 25 20 18 12 10 5.2 8 6 6 7 6 5 4 4 4 2 3.5 1.8 4 3.8 3.5 1.9 3 47 51 52 60 68 81 103 90 115 112 89 104 126 137 117 127 200 146 190 122 120 136 205 158 42 46 47 54 61 73 93 81 104 101 80 94 114 123 106 115 180 132 171 110 108 123 185 142 19 20 21 24 27 32 41 36 46 45 35 42 51 55 47 51 80 59 76 49 48 55 82 63 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 4 Volt @ 85°C The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 7 TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE 8 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) AVX Part No. Case Size Capacitance (μF) TAJB336*004#NJ TAJK336*004#NJ TAJP336M004#NJ TAJS336*004#NJ TAJT336*004#NJ TAJW336*004#NJ TAJA476*004#NJ TAJB476*004#NJ TAJT476*004#NJ TAJW476*004#NJ TAJA686*004#NJ TAJB686*004#NJ TAJT686*004#NJ TAJW686*004#NJ TAJA107*004#NJ TAJB107*004#NJ TAJC107*004#NJ TAJT107M004#NJ TAJW107*004#NJ TAJB157*004#NJ TAJC157*004#NJ TAJW157*004#NJ TAJY157*004#NJ TAJB227*004#NJ TAJC227*004#NJ TAJD227*004#NJ TAJW227*004#NJ TAJX227*004#NJ TAJY227*004#NJ TAJC337*004#NJ TAJD337*004#NJ TAJF337*004#NJ TAJX337*004#NJ TAJY337*004#NJ TAJC477*004#NJ TAJD477*004#NJ TAJE477*004#NJ TAJY477*004#NJ TAJD687*004#NJ TAJE687*004#NJ TAJY687M004#NJ TAJD108*004#NJ TAJE108*004#NJ TAJV108*004#NJ TAJE158*004#NJ TAJV158M004#NJ B K P S T W A B T W A B T W A B C T W B C W Y B C D W X Y C D F X Y C D E Y D E Y D E V E V 33 33 33 33 33 33 47 47 47 47 68 68 68 68 100 100 100 100 100 150 150 150 150 220 220 220 220 220 220 330 330 330 330 330 470 470 470 470 680 680 680 1000 1000 1000 1500 1500 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR155*006#NJ TAJS155*006#NJ TAJA225*006#NJ TAJR225*006#NJ TAJS225*006#NJ TAJA335*006#NJ TAJR335*006#NJ TAJS335*006#NJ TAJA475*006#NJ TAJR475*006#NJ TAJS475*006#NJ TAJT475*006#NJ TAJA685*006#NJ TAJB685*006#NJ TAJR685*006#NJ TAJS685*006#NJ TAJT685*006#NJ TAJA106*006#NJ TAJB106*006#NJ TAJP106*006#NJ TAJR106*006#NJ TAJS106*006#NJ TAJT106*006#NJ TAJA156*006#NJ R S A R S A R S A R S T A B R S T A B P R S T A 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 6.8 10 10 10 10 10 10 15 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 6.3 Volt @ 85°C 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 DCL Max. (μA) DF Max. (%) 1.3 1.3 1.3 1.3 1.3 1.3 1.9 1.9 1.9 1.9 2.7 2.7 2.7 2.7 4 4 4 4 4 6 6 6 6 8.8 8.8 8.8 8.8 8.8 8.8 13.2 13.2 13.2 13.2 13.2 18.8 18.8 18.8 18.8 27.2 27.2 27.2 40 40 40 60 60 6 10 8 8 6 6 8 6 10 6 10 6 15 6 30 8 6 14 6 10 6 6 6 12 8 8 8 8 8 8 8 10 8 12 14 12 10 14 14 14 25 60 14 16 30 30 ESR Max. @ 100kHz (Ω) 2.8 1.7 2.8 1.7 1.7 0.6 2.6 2.4 1.6 0.5 1.5 1.8 1.5 0.4 1.4 0.9 1.3 1.4 0.4 1.5 0.3 0.5 0.4 1.1 1.2 0.9 0.3 0.9 0.3 0.3 0.9 0.3 0.3 0.4 0.3 0.9 0.5 0.4 0.5 0.9 0.2 0.2 0.4 0.2 0.2 0.2 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.9 6 6 6 6 6 6 6 6 6 6 6 6 6 6 8 6 6 6 6 8 8 8 6 6 25 25 9 20 18 7 12 9 6 7 7.5 6 5 5 7 2.6 5 4 3 6 6 4 4 3.5 100kHz RMS Current (mA) 85ºC 125ºC 174 196 146 196 217 387 170 188 224 424 224 217 231 474 231 307 291 239 474 238 606 424 559 278 303 408 548 577 645 606 408 577 577 559 606 408 574 559 548 428 791 866 642 1118 908 1118 157 176 132 176 195 349 153 169 201 382 201 196 208 427 208 277 262 215 427 214 545 382 503 250 272 367 493 520 581 545 367 520 520 503 545 367 517 503 493 385 712 779 578 1006 817 1006 70 78 59 78 87 155 68 75 89 170 89 87 92 190 93 123 116 96 190 95 242 170 224 111 121 163 219 231 258 242 163 231 231 224 242 163 230 224 219 171 316 346 257 447 363 447 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 1 1 11) 11) 1 1 1 11) 11) 1 1 11) 11) 1 11) 11) 1 11) 11) 11) 11) 47 51 91 52 60 104 68 85 112 89 93 115 122 130 89 158 126 137 168 100 96 127 141 146 42 46 82 47 54 93 61 76 101 80 84 104 110 117 80 142 114 123 151 90 86 115 127 132 19 20 37 21 24 41 27 34 45 35 37 46 49 52 35 63 51 55 67 40 38 51 57 59 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 25ºC TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) AVX Part No. Case Size Capacitance (μF) TAJB156*006#NJ TAJK156*006#NJ TAJP156*006#NJ TAJR156*006#NJ TAJS156*006#NJ TAJT156*006#NJ TAJA226*006#NJ TAJB226*006#NJ TAJC226*006#NJ TAJK226*006#NJ TAJP226M006#NJ TAJS226*006#NJ TAJT226*006#NJ TAJW226*006#NJ TAJA336*006#NJ TAJB336*006#NJ TAJC336*006#NJ TAJT336*006#NJ TAJW336*006#NJ TAJA476*006#NJ TAJB476*006#NJ TAJC476*006#NJ TAJD476*006#NJ TAJT476*006#NJ TAJW476*006#NJ TAJB686*006#NJ TAJC686*006#NJ TAJD686*006#NJ TAJW686*006#NJ TAJB107*006#NJ TAJC107*006#NJ TAJD107*006#NJ TAJW107*006#NJ TAJY107*006#NJ TAJB157M006#NJ TAJC157*006#NJ TAJD157*006#NJ TAJW157*006#NJ TAJX157*006#NJ TAJY157*006#NJ TAJC227*006#NJ TAJD227*006#NJ TAJE227*006#NJ TAJF227*006#NJ TAJX227*006#NJ TAJY227*006#NJ TAJC337*006#NJ TAJD337*006#NJ TAJE337*006#NJ TAJY337*006#NJ TAJD477*006#NJ TAJE477*006#NJ TAJV477*006#NJ TAJY477*006#NJ TAJD687*006#NJV TAJE687*006#NJ TAJV687*006#NJ TAJE108M006#NJ TAJV108M006#NJ B K P R S T A B C K P S T W A B C T W A B C D T W B C D W B C D W Y B C D W X Y C D E F X Y C D E Y D E V Y D E V E V 15 15 15 15 15 15 22 22 22 22 22 22 22 22 33 33 33 33 33 47 47 47 47 47 47 68 68 68 68 100 100 100 100 100 150 150 150 150 150 150 220 220 220 220 220 220 330 330 330 330 470 470 470 470 680 680 680 1000 1000 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR105*010#NJ TAJS105*010#NJ TAJA155*010#NJ TAJR155*010#NJ TAJS155*010#NJ TAJA225*010#NJ TAJR225*010#NJ TAJS225*010#NJ TAJA335*010#NJ TAJK335*010#NJ TAJR335*010#NJ TAJS335*010#NJ R S A R S A R S A K R S 1 1 1.5 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 3.3 10 10 10 10 10 10 10 10 10 10 10 10 85 85 85 85 85 85 85 85 85 85 85 85 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 10 Volt @ 85°C 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 DCL Max. (μA) DF Max. (%) 0.9 0.9 0.9 0.9 0.9 0.9 1.4 1.4 1.4 1.3 1.3 1.3 1.4 1.3 2.1 2.1 2.1 2.1 2 2.8 3 3 3 2.8 2.8 4 4.3 4.3 4.3 6.3 6.3 6.3 6.3 6.3 9.5 9.5 9.5 9 9 9.5 13.9 13.9 13.9 13.2 13.2 13.9 19.8 20.8 20.8 20.8 28 28 28 28.2 40.8 42.8 42.8 60 60 6 6 8 8 8 6 6 6 6 10 8 10 8 6 8 6 6 10 6 10 6 6 6 10 6 8 6 6 6 10 6 6 6 6 10 6 6 8 6 6 8 8 8 10 8 8 12 8 8 12 12 10 10 20 20 10 10 20 16 ESR Max. @ 100kHz (Ω) 2 2 3.5 4.1 3.5 3.5 3 2.5 2 1.8 3.3 1.8 2.5 0.6 2.2 2.2 1.8 2.5 0.5 1.6 2 1.6 1.1 1.6 0.5 0.9 1.5 0.9 1.5 1.7 0.9 0.9 0.9 0.7 1.2 1.3 0.9 0.3 0.4 0.4 1.2 0.4 0.4 0.3 0.3 0.7 0.5 0.4 0.4 0.4 0.4 0.4 0.4 0.2 0.5 0.5 0.5 0.2 0.2 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 4 4 6 6 6 6 6 6 6 6 6 6 25 25 10 20 20 7 15 12 5.5 5.5 8 8 100kHz RMS Current (mA) 85ºC 125ºC 206 180 131 116 136 151 158 184 235 190 135 190 179 387 185 197 247 179 424 217 206 262 369 224 424 307 271 408 245 224 350 408 316 423 266 291 408 548 500 559 303 612 642 577 577 423 469 612 642 559 612 642 791 791 548 574 707 908 1118 186 162 118 104 123 136 142 166 211 171 121 171 161 349 166 177 222 161 382 195 186 236 332 201 382 277 244 367 220 201 315 367 285 380 240 262 367 493 450 503 272 551 578 520 520 380 422 551 578 503 551 578 712 712 493 517 636 817 1006 82 72 52 46 55 60 63 74 94 76 54 76 72 155 74 79 99 72 170 87 82 105 148 89 170 123 108 163 98 89 140 163 126 169 106 116 163 219 200 224 121 245 257 231 231 169 188 245 257 224 245 257 316 316 219 230 283 363 447 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 1 1 11) 11) 1 1 11) 1 11) 11) 1 1 11) 11) 1 11) 11) 11) 3 11) 11) 11) 11) 47 51 87 52 57 104 61 74 117 109 83 90 42 46 78 47 51 93 54 66 105 98 75 81 19 20 35 21 23 41 24 29 47 43 33 36 1 1 1 1 1 1 1 1 1 1 1 1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 25ºC 9 TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE 10 AVX Part No. Case Size Capacitance (μF) TAJT335*010#NJ TAJA475*010#NJ TAJB475*010#NJ TAJR475*010#NJ TAJS475*010#NJ TAJT475*010#NJ TAJA685*010#NJ TAJB685*010#NJ TAJP685*010#NJ TAJR685*010#NJ TAJS685*010#NJ TAJT685*010#NJ TAJA106*010#NJ TAJB106*010#NJ TAJC106*010#NJ TAJK106*010#NJ TAJP106*010#NJ TAJR106M010#NJ TAJS106*010#NJ TAJT106*010#NJ TAJA156*010#NJ TAJB156*010#NJ TAJC156*010#NJ TAJS156*010#NJ TAJT156*010#NJ TAJW156*010#NJ TAJA226*010#NJ TAJB226*010#NJ TAJC226*010#NJ TAJT226*010#NJ TAJW226*010#NJ TAJA336*010#NJ TAJB336*010#NJ TAJC336*010#NJ TAJD336*010#NJ TAJW336*010#NJ TAJB476*010#NJ TAJC476*010#NJ TAJD476*010#NJ TAJH476*006#NJ TAJW476*010#NJ TAJY476*010#NJ TAJB686*010#NJ TAJC686*010#NJ TAJD686*010#NJ TAJW686*010#NJ TAJY686*010#NJ TAJB107*010#NJ TAJC107*010#NJ TAJD107*010#NJ TAJE107*010#NJ TAJW107*010#NJ TAJX107*010#NJ TAJY107*010#NJ TAJC157*010#NJ TAJD157*010#NJ TAJE157*010#NJ TAJF157*010#NJ TAJX157M010#NJ TAJY157*010#NJ TAJC227*010#NJ TAJD227*010#NJ TAJE227*010#NJ TAJY227*010#NJ TAJD337*010#NJ TAJE337*010#NJ TAJV337*010#NJ TAJE477*010#NJ TAJU477*010RNJ TAJV477*010#NJ TAJE687M010#NJV TAJV687M010#NJV T A B R S T A B P R S T A B C K P R S T A B C S T W A B C T W A B C D W B C D H W Y B C D W Y B C D E W X Y C D E F X Y C D E Y D E V E U V E V 3.3 4.7 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 6.8 6.8 10 10 10 10 10 10 10 10 15 15 15 15 15 15 22 22 22 22 22 33 33 33 33 33 47 47 47 47 47 47 68 68 68 68 68 100 100 100 100 100 100 100 150 150 150 150 150 150 220 220 220 220 330 330 330 470 470 470 680 680 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 7 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 DCL Max. (μA) DF Max. (%) 0.5 0.5 0.5 0.5 0.5 0.5 0.7 0.7 0.6 0.7 0.7 0.7 1 1 1 1 1 1 1 1 1.5 1.5 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2 3.3 3.3 3.3 3.3 3.3 4.7 4.7 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 6.8 10 10 10 10 10 10 10 15 15 15 15 15 15 22 22 22 22 33 33 33 47 47 47 68 68 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 8 20 8 6 6 6 6 6 8 6 8 6 6 8 6 8 6 6 6 6 8 6 6 8 6 6 6 6 6 6 6 8 8 6 6 6 8 6 8 8 8 10 6 6 16 8 8 10 8 8 10 10 12 10 18 18 ESR Max. @ 100kHz (Ω) 6 5 4 9 5 5 4 3 5 5.2 4 4 3 2.1 2.5 2.2 6 6 3 3 3.2 2.8 2 2 2.8 0.7 3 2.4 1.8 2.2 0.6 1.7 1.8 1.6 1.1 1.6 1 1.2 0.4 1.0 1.4 0.5 1.4 1.3 0.9 1.2 0.9 1.4 1.2 0.9 0.9 0.4 0.9 0.9 0.9 0.9 0.9 0.3 0.3 1.2 0.5 0.5 0.5 0.5 0.9 0.9 0.9 0.5 0.5 0.5 0.4 0.4 100kHz RMS Current (mA) 25ºC 85ºC 125ºC 115 122 146 78 114 126 137 168 110 103 127 141 158 201 210 172 100 96 147 163 153 174 235 180 169 359 158 188 247 191 387 210 217 262 369 237 292 303 612 283 254 500 246 291 408 274 373 246 303 408 428 474 333 373 350 408 428 577 577 323 469 548 574 500 408 428 572 574 574 707 642 791 104 110 131 70 103 114 123 151 99 93 115 127 142 181 189 155 90 86 132 147 138 157 211 162 152 323 142 169 222 172 349 189 196 236 332 213 262 272 551 255 228 450 222 262 367 246 335 222 272 367 385 427 300 335 315 367 385 520 520 290 422 493 517 450 367 385 474 517 517 636 578 712 46 49 58 31 46 51 55 67 44 41 51 57 63 80 84 69 40 38 59 65 61 70 94 72 68 143 63 75 99 76 155 84 87 105 148 95 117 121 245 113 101 200 99 116 163 110 149 99 121 163 171 190 133 149 140 163 171 231 231 129 188 219 230 200 163 171 211 230 230 283 257 316 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 1 1 11) 1 1 1 11) 1 11) 11) 1 1 11) 1 11) 11) 1 1 11) 11) 1 11) 11) 11) 11) 11) 3 3 TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Size Capacitance (μF) TAJR684*016#NJ TAJS684*016#NJ TAJA105*016#NJ TAJR105*016#NJ TAJS105*016#NJ TAJT105*016#NJ TAJA155*016#NJ TAJR155*016#NJ TAJS155*016#NJ TAJA225*016#NJ TAJB225*016#NJ TAJR225*016#NJ TAJS225*016#NJ TAJT225*016#NJ TAJA335*016#NJ TAJB335*016#NJ TAJR335*016#NJ TAJS335*016#NJ TAJT335*016#NJ TAJA475*016#NJ TAJB475*016#NJ TAJK475*016#NJ TAJP475*016#NJ TAJS475*016#NJ TAJT475*016#NJ TAJA685*016#NJ TAJB685*016#NJ TAJC685*016#NJ TAJS685*016#NJ TAJT685*016#NJ TAJA106*016#NJ TAJB106*016#NJ TAJC106*016#NJ TAJT106*016#NJ TAJW106*016#NJ TAJA156*016#NJ TAJB156*016#NJ TAJC156*016#NJ TAJT156M016#NJ TAJW156*016#NJ TAJA226M016#NJ TAJB226*016#NJ TAJC226*016#NJ TAJD226*016#NJ TAJW226*016#NJ TAJB336*016#NJ TAJC336*016#NJ TAJD336*016#NJ TAJW336*016#NJ TAJY336*016#NJ TAJC476*016#NJ TAJD476*016#NJ TAJW476*016#NJ TAJX476*016#NJ TAJY476*016#NJ TAJC686*016#NJ TAJD686*016#NJ TAJF686*016#NJ TAJX686*016#NJ TAJY686*016#NJ TAJC107*016#NJ TAJD107*016#NJ TAJE107*016#NJ TAJF107M016#NJ TAJY107*016#NJ TAJD157*016#NJ TAJE157*016#NJ TAJV157*016#NJ TAJY157M016#NJ TAJD227M016#NJV TAJE227*016#NJ TAJV227*016#NJ TAJE337M016#NJ R S A R S T A R S A B R S T A B R S T A B K P S T A B C S T A B C T W A B C T W A B C D W B C D W Y C D W X Y C D F X Y C D E F Y D E V Y D E V E 0.68 0.68 1 1 1 1 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2 3.3 3.3 3.3 3.3 3.3 4.7 4.7 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 6.8 10 10 10 10 10 15 15 15 15 15 22 22 22 22 22 33 33 33 33 33 47 47 47 47 47 68 68 68 68 68 100 100 100 100 100 150 150 150 150 220 220 220 330 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 16 Volt @ 85°C 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) 25ºC 85ºC 125ºC 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 0.8 0.8 1.1 1.1 1.1 1.1 1.1 1.6 1.6 1.6 1.6 1.6 2.4 2.4 2.4 2.4 2.4 3.5 3.5 3.5 3.5 3.5 5.3 5.3 5.3 5.3 5.3 7.5 7.5 7.5 7.5 7.5 10.9 10.9 10.9 10.9 10.9 16 16 16 16 16 24 24 24 24 35.2 35.2 35.2 52.8 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 8 6 6 6 6 6 8 8 6 6 6 6 8 6 6 6 6 8 6 6 6 6 6 6 10 6 6 6 6 8 6 6 6 6 6 6 6 6 6 6 6 10 8 6 8 6 6 10 8 6 8 8 15 10 10 8 30 25 25 11 20 15 5 8 10 12 6.5 2.3 6.5 6 6.5 5 4.5 5 5 5 4 3.5 3.1 5 4 3.1 3.5 2.5 2.5 2.4 3.5 3 2.8 2 2.2 2 2 2.5 1.8 2 0.7 2.3 2.3 1 1.1 1.6 2.1 1.5 0.9 1.5 0.9 0.5 0.9 0.4 0.75 0.7 1.3 0.9 0.4 0.6 0.9 1 0.6 0.9 0.4 0.9 0.9 0.3 0.5 0.3 0.5 0.5 0.9 0.4 47 51 83 52 66 126 97 74 74 107 192 92 104 111 122 137 105 114 126 137 156 145 110 127 161 146 184 210 165 151 158 174 235 191 212 194 184 247 200 359 181 192 332 369 237 201 271 408 245 373 469 408 474 365 423 291 408 500 408 373 332 500 428 500 373 408 742 707 645 548 574 527 642 42 46 74 47 59 114 87 67 66 97 173 83 94 100 110 124 94 103 114 123 140 130 99 115 145 132 166 189 148 136 142 157 211 172 191 174 166 222 180 323 163 173 298 332 213 181 244 367 220 335 422 367 427 329 380 262 367 450 367 335 298 450 385 450 335 367 667 636 581 493 517 474 578 19 20 33 21 26 51 39 30 29 43 77 37 42 44 49 55 42 46 51 55 62 58 44 51 64 59 74 84 66 60 63 70 94 76 85 77 74 99 80 143 72 77 133 148 95 80 108 163 98 149 188 163 190 146 169 116 163 200 163 149 133 200 171 200 149 163 297 283 258 219 230 211 257 100kHz RMS Current (mA) The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 1 11) 11) 1 1 1 11) 11) 1 1 11) 1 11) 1 11) 11) 11) 3 11) 11) 11) 11 TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE 12 AVX Part No. Case Size Capacitance (μF) TAJR104*020#NJ TAJS104*020#NJ TAJR154*020#NJ TAJS154*020#NJ TAJR224*020#NJ TAJS224*020#NJ TAJR334*020#NJ TAJS334*020#NJ TAJR474*020#NJ TAJS474*020#NJ TAJR684*020#NJ TAJS684*020#NJ TAJT684*020#NJ TAJA105*020#NJ TAJR105*020#NJ TAJS105*020#NJ TAJT105*020#NJ TAJA155*020#NJ TAJP155*020#NJ TAJR155*020#NJ TAJS155*020#NJ TAJT155*020#NJ TAJA225*020#NJ TAJB225*020#NJ TAJP225*020#NJ TAJR225*020#NJ TAJS225*020#NJ TAJT225*020#NJ TAJA335*020#NJ TAJB335*020#NJ TAJT335*020#NJ TAJA475*020#NJ TAJB475*020#NJ TAJC475*020#NJ TAJT475*020#NJ TAJA685*020#NJ TAJB685*020#NJ TAJC685*020#NJ TAJT685*020#NJ TAJB106*020#NJ TAJC106*020#NJ TAJW106*020#NJ TAJB156*020#NJ TAJC156*020#NJ TAJD156*020#NJ TAJW156*020#NJ TAJB226*020#NJ TAJC226*020#NJ TAJD226*020#NJ TAJW226*020#NJ TAJY226*020#NJ TAJC336*020#NJ TAJD336*020#NJ TAJX336*020#NJ TAJY336*020#NJ TAJC476*020#NJ TAJD476*020#NJ TAJE476*020#NJ TAJX476*020#NJ TAJY476*020#NJ TAJC686M020#NJ TAJD686*020#NJ TAJE686*020#NJ TAJY686*020#NJ TAJD107*020#NJ TAJE107*020#NJ TAJV107*020#NJ TAJE157*020#NJ TAJV157*020#NJ R S R S R S R S R S R S T A R S T A P R S T A B P R S T A B T A B C T A B C T B C W B C D W B C D W Y C D X Y C D E X Y C D E Y D E V E V 0.1 0.1 0.15 0.15 0.22 0.22 0.33 0.33 0.47 0.47 0.68 0.68 0.68 1 1 1 1 1.5 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 6.8 6.8 10 10 10 15 15 15 15 22 22 22 22 22 33 33 33 33 47 47 47 47 47 68 68 68 68 100 100 100 150 150 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 20 Volt @ 85°C 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) 25ºC 85ºC 125ºC 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.7 0.7 0.7 0.9 0.9 0.9 0.9 1.4 1.4 1.4 1.4 2 2 2 3 3 3 3 4.4 4.4 4.4 4.4 4.4 6.6 6.6 6.6 6.6 9.4 9.4 9.4 9.4 9.4 13.6 13.6 13.6 13.6 20 20 20 30 30 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 8 6 6 6 6 6 8 8 8 25 25 25 25 25 25 25 25 25 25 20 25 15 9 20 12 9 6.5 9.6 9.6 5.4 6.5 5.3 3.5 8.3 6 4.5 6 4.5 3 3 4 3 2.8 3.1 2.4 2.5 2 2.6 2.1 1.2 1.9 2 1.7 1.1 1.7 1.8 1.6 0.9 1.6 0.9 1.5 0.9 0.5 0.6 0.5 0.9 0.9 0.4 0.9 0.5 0.4 0.9 0.9 0.5 0.4 0.9 0.3 0.3 47 51 47 51 47 51 47 51 47 51 52 51 73 91 52 74 94 107 79 76 110 111 119 156 85 96 120 115 129 168 163 137 168 198 161 177 184 235 175 201 303 218 206 254 369 230 217 262 408 237 373 271 408 447 456 469 408 428 500 373 469 612 428 373 548 642 527 742 913 42 46 42 46 42 46 42 46 42 46 47 46 66 82 47 66 85 97 71 68 99 100 107 140 77 86 108 104 116 151 147 123 151 178 145 159 166 211 158 181 272 196 186 229 332 207 196 236 367 213 335 244 367 402 411 422 367 385 450 335 422 551 385 335 493 578 474 667 822 19 20 19 20 19 20 19 20 19 20 21 20 29 37 21 29 38 43 32 30 44 44 48 62 34 38 48 46 52 67 65 55 67 79 64 71 74 94 70 80 121 87 82 102 148 92 87 105 163 95 149 108 163 179 183 188 163 171 200 149 188 245 171 149 219 257 211 297 365 100kHz RMS Current (mA) The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 11) 11) 1 1 11) 11) 11) 1 1 11) 11) 1 11) 11) 11) 11) TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) AVX Part No. Case Size Capacitance (μF) TAJR154*025#NJ TAJR224*025#NJ TAJR334*025#NJ TAJA474*025#NJ TAJR474*025#NJ TAJS474*025#NJ TAJA684*025#NJ TAJR684*025#NJ TAJS684*025#NJ TAJA105*025#NJ TAJP105*025#NJ TAJR105*025#NJ TAJS105*025#NJ TAJA155*025#NJ TAJB155*025#NJ TAJP155*025#NJ TAJS155*025#NJ TAJT155*025#NJ TAJA225*025#NJ TAJB225*025#NJ TAJT225*025#NJ TAJA335*025#NJ TAJB335*025#NJ TAJC335*025#NJ TAJT335*025#NJ TAJW335*025#NJ TAJA475*025#NJ TAJB475*025#NJ TAJC475*025#NJ TAJT475*025#NJ TAJW475*025#NJ TAJB685*025#NJ TAJC685*025#NJ TAJW685*025#NJ TAJB106*025#NJ TAJC106*025#NJ TAJD106*025#NJ TAJW106*025#NJ TAJC156*025#NJ TAJD156*025#NJ TAJY156*025#NJ TAJC226*025#NJ TAJD226*025#NJ TAJF226*025#NJ TAJY226*025#NJ TAJC336*025#NJ TAJD336*025#NJ TAJE336*025#NJ TAJF336*025#NJ TAJY336*025#NJ TAJD476*025#NJ TAJE476*025#NJ TAJY476*025#NJ TAJD686*025#NJ TAJE686*025#NJ TAJV686*025#NJ TAJE107*025#NJ TAJV107*025#NJ TAJV157M025#NJ R R R A R S A R S A P R S A B P S T A B T A B C T W A B C T W B C W B C D W C D Y C D F Y C D E F Y D E Y D E V E V V 0.15 0.22 0.33 0.47 0.47 0.47 0.68 0.68 0.68 1 1 1 1 1.5 1.5 1.5 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 3.3 3.3 4.7 4.7 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 10 15 15 15 22 22 22 22 33 33 33 33 33 47 47 47 68 68 68 100 100 150 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJA104*035#NJ TAJR104*035#NJ TAJS104*035#NJ TAJA154*035#NJ TAJR154*035#NJ TAJS154*035#NJ TAJA224*035#NJ TAJR224*035#NJ TAJS224*035#NJ TAJA334*035#NJ TAJR334*035#NJ A R S A R S A R S A R 0.1 0.1 0.1 0.15 0.15 0.15 0.22 0.22 0.22 0.33 0.33 35 35 35 35 35 35 35 35 35 35 35 85 85 85 85 85 85 85 85 85 85 85 25 Volt @ 85°C 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 35 Volt @ 85°C 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) 25ºC 85ºC 125ºC 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.8 0.8 0.8 0.8 0.8 1.2 1.2 1.2 1.2 1.2 1.7 1.7 1.7 2.5 2.5 2.5 2.5 3.8 3.8 3.8 5.5 5.5 5.5 5.5 8.3 8.3 8.3 8.3 8.3 11.8 11.8 11.8 17 17 17 25 25 37.5 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 10 8 10 24 21 17 14 15 9 10 13 8 8 11 8 8 7.5 5 9.6 5.4 5 7 4.5 4.5 3.7 3.5 2.8 3.5 1.6 3.1 1.5 2.4 3.1 1.2 2.8 2 2 2.5 1.8 1.2 1.8 1.6 1 1 1.4 0.9 1 0.8 0.9 0.9 0.9 0.9 0.5 0.9 0.9 0.9 0.9 0.9 0.9 0.3 0.4 0.4 48 51 57 73 61 85 87 65 90 97 74 83 90 100 130 79 110 126 104 137 133 142 156 198 151 237 156 238 214 161 274 174 235 212 184 247 354 224 262 387 354 280 408 316 395 350 408 428 333 500 408 428 373 408 428 527 742 791 791 43 46 51 66 54 76 78 59 81 87 66 75 81 90 117 71 99 114 93 124 120 128 140 178 136 213 140 214 193 145 246 157 211 191 166 222 318 201 236 349 318 252 367 285 356 315 367 385 300 450 367 385 335 367 385 474 667 712 712 19 20 23 29 24 34 35 26 36 39 30 33 36 40 52 32 44 51 41 55 53 57 62 79 60 95 62 95 86 64 110 70 94 85 74 99 141 89 105 155 141 112 163 126 158 140 163 171 133 200 163 171 149 163 171 211 297 316 316 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 1 11) 1 1 11) 1 11) 1 11) 11) 1 11) 11) 11) 11) 11) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 4 4 4 4 4 4 4 4 4 4 4 24 29 24 21 24 21 18 21 18 15 17 56 44 52 60 48 56 65 51 60 71 57 50 39 47 54 43 50 58 46 54 64 51 22 17 21 24 19 22 26 20 24 28 23 1 1 1 1 1 1 1 1 1 1 1 100kHz RMS Current (mA) The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 13 TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE 14 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) AVX Part No. Case Size Capacitance (μF) TAJS334*035#NJ TAJA474*035#NJ TAJB474*035#NJ TAJR474*035#NJ TAJS474*035#NJ TAJT474*035#NJ TAJA684*035#NJ TAJB684*035#NJ TAJP684*035#NJ TAJS684*035#NJ TAJT684*035#NJ TAJA105*035#NJ TAJB105*035#NJ TAJP105*035#NJ TAJS105*035#NJ TAJT105*035#NJ TAJA155*035#NJ TAJB155*035#NJ TAJC155*035#NJ TAJT155*035#NJ TAJA225*035#NJ TAJB225*035#NJ TAJC225*035#NJ TAJT225*035#NJ TAJB335*035#NJ TAJC335*035#NJ TAJW335*035#NJ TAJB475*035#NJ TAJC475*035#NJ TAJD475*035#NJ TAJW475*035#NJ TAJC685*035#NJ TAJD685*035#NJ TAJY685*035#NJ TAJC106*035#NJ TAJD106*035#NJ TAJE106*035#NJ TAJX106*035#NJ TAJY106*035#NJ TAJC156*035#NJ TAJD156*035#NJ TAJY156*035#NJ TAJD226*035#NJ TAJE226*035#NJ TAJY226*035#NJ TAJD336*035#NJ TAJE336*035#NJ TAJV336*035#NJ TAJD476*035#NJV TAJE476*035#NJ TAJV476*035#NJ TAJV686*035#NJ S A B R S T A B P S T A B P S T A B C T A B C T B C W B C D W C D Y C D E X Y C D Y D E Y D E V D E V V 0.33 0.47 0.47 0.47 0.47 0.47 0.68 0.68 0.68 0.68 0.68 1 1 1 1 1 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 10 10 15 15 15 22 22 22 33 33 33 47 47 47 68 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJA104*050#NJ TAJS104*050#NJ TAJA154*050#NJ TAJB154*050#NJ TAJS154*050#NJ TAJA224*050#NJ TAJB224*050#NJ TAJP224*050#NJ TAJR224*050#NJ TAJS224*050#NJ TAJA334*050#NJ TAJB334*050#NJ TAJP334*050#NJ TAJR334M050#NJ TAJS334*050#NJ TAJT334*050#NJ TAJA474*050#NJ TAJB474*050#NJ TAJC474*050#NJ A S A B S A B P R S A B P R S T A B C 0.1 0.1 0.15 0.15 0.15 0.22 0.22 0.22 0.22 0.22 0.33 0.33 0.33 0.33 0.33 0.33 0.47 0.47 0.47 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 50 Volt @ 85°C 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 33 125 DCL Max. (μA) DF Max. (%) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 1.2 1.2 1.2 1.6 1.6 1.6 1.6 2.4 2.4 2.3 3.5 3.5 3.5 3.5 3.5 5.3 5.3 5.3 7.7 7.7 7.7 11.6 11.6 11.6 16.5 16.5 16.5 23.8 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 ESR Max. @ 100kHz (Ω) 15 12 10 15 12 10 8 8 13 8 8 7.5 6.5 11 7.5 6.5 7.5 5.2 4.5 5.2 4.5 4.2 3.5 4.2 3.5 2.5 1.6 3.1 2.2 1.5 2.2 1.8 1.3 0.9 1.6 1 0.9 0.7 1 1.4 0.9 0.6 0.9 0.5 0.5 0.9 0.9 0.5 0.9 0.9 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 22 19 15 17 16 18 14 17 17 13 17 12 17 17 11 11 9.5 9.5 8 100kHz RMS Current (mA) 85ºC 125ºC 66 79 92 61 74 89 97 103 68 90 100 100 114 74 93 111 100 128 156 124 129 142 177 138 156 210 237 166 224 316 202 247 340 373 262 387 428 378 354 280 408 456 408 574 500 408 428 707 408 428 791 707 59 71 83 54 66 80 87 93 61 81 90 90 103 66 84 100 90 115 141 112 116 128 160 124 140 189 213 149 201 285 182 222 306 335 236 349 385 340 318 252 367 411 367 517 450 367 385 636 367 385 712 363 26 32 37 24 29 36 39 41 27 36 40 40 46 30 37 44 40 51 63 50 52 57 71 55 62 84 95 66 89 126 81 99 136 149 105 155 171 151 141 112 163 183 163 230 200 163 171 283 163 171 316 283 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 11) 11) 11) 1 1 11) 1 11) 11) 1 11) 11) 3 11) 11) 11) 58 58 71 71 64 65 78 59 57 71 66 84 59 57 77 85 89 95 117 53 53 64 64 57 58 70 53 51 64 60 76 53 51 69 77 80 85 106 23 23 28 28 25 26 31 24 23 28 27 34 24 23 31 34 36 38 47 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 MSL 25ºC TAJ Series Standard and Low Profile Tantalum Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Size Capacitance (μF) TAJS474*050#NJ TAJT474*050#NJ TAJA684*050#NJ TAJB684*050#NJ TAJC684*050#NJ TAJA105*050#NJ TAJB105*050#NJ TAJC105*050#NJ TAJW105*050#NJ TAJB155*050#NJ TAJC155*050#NJ TAJD155*050#NJ TAJW155*050#NJ TAJB225*050#NJ TAJC225*050#NJ TAJD225*050#NJ TAJW225*050#NJ TAJC335*050#NJ TAJD335*050#NJ TAJY335*050#NJ TAJC475*050#NJ TAJD475*050#NJ TAJX475*050#NJV TAJY475*050#NJ TAJC685*050#NJ TAJD685*050#NJ TAJY685*050#NJ TAJD106*050#NJ TAJE106*050#NJ TAJV106*050#NJ TAJD156*050#NJ TAJE156*050#NJ TAJV156*050#NJ TAJV226*050#NJ S T A B C A B C W B C D W B C D W C D Y C D X Y C D Y D E V D E V V 0.47 0.47 0.68 0.68 0.68 1 1 1 1 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 15 15 15 22 Rated Rated Category Category Voltage Temperature Voltage Temperature (V) (ºC) (V) (ºC) 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 33 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 DCL Max. (μA) DF Max. (%) 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 1.1 1.1 1.1 1.1 1.6 1.7 1.7 2.4 2.4 2.4 2.4 3.4 3.4 3.4 5 5 5 7.5 7.5 7.5 11 4 4 4 4 4 4 6 4 6 8 6 6 6 8 8 6 8 6 6 4 6 6 6 6 6 6 6 6 6 6 6 6 6 8 ESR Max. @ 100kHz (Ω) 9.5 9.5 7.9 8 7 6.6 7 5.5 4.4 5.4 4.5 4 3.1 4.5 2.5 2.5 2.5 2.5 2 1.5 1.4 1.4 1.0 1.2 1 1 0.9 0.8 0.8 0.65 0.6 0.6 0.6 0.6 100kHz RMS Current (mA) 25ºC 85ºC 125ºC 83 92 97 103 125 107 110 141 143 125 156 194 170 137 210 245 190 210 274 289 280 327 316 323 332 387 373 433 454 620 500 524 645 645 74 83 88 93 113 96 99 127 129 113 141 174 153 124 189 220 171 189 246 260 252 295 285 290 298 349 335 390 409 558 450 472 581 581 33 37 39 41 50 43 44 57 57 50 63 77 68 55 84 98 76 84 110 115 112 131 126 129 133 155 149 173 182 248 200 210 258 258 MSL 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 1 3 11) 1 1 11) 1 11) 11) 1 11) 11) 11) 11) – Dry pack option (see How to order) is recommended for reduction of stress during soldering. Dry pack parts should be treated as MSL 3. Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. For typical weight and composition see page 274. NOTE: AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards. *Initial Limit The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 15 TAJ Series Standard and Low Profile Tantalum Capacitors QUALIFICATION TABLE TAJ series (Temperature range -55ºC to +125ºC) TEST Endurance Humidity Temperature Stability Surge Voltage Mechanical Shock Vibration 16 Condition Characteristics Apply rated voltage (Ur) at 85ºC and / or category voltage (Uc) at 125ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Store at 65ºC and 95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Step 1 2 3 4 5 6 Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x category voltage (Uc) at 125ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω MIL-STD-202, Method 213, Condition C MIL-STD-202, Method 204, Condition D Visual examination no visible damage DCL 1.25 x initial limit ΔC/C within ±10% of initial value DF initial limit Visual examination no visible damage DCL 1.5 x initial limit ΔC/C within ±10% of initial value DF 1.2 x initial limit +20ºC -55ºC +20ºC +85ºC +125ºC +20ºC DCL IL* n/a IL* 10 x IL* 12.5 x IL* IL* ΔC/C n/a +0/-10% ±5% +10/-0% +12/-0% ±5% IL* 1.5 x IL* IL* 1.5 x IL* 2 x IL* IL* DF Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit ESR initial limit Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit ESR initial limit The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 032720 TAJ Series Standard and Low Profile Tantalum Capacitors AVX SOLID ELECTROLYTIC CAPACITOR ROADMAP CONDUCTIVE POLYMER CONVENTIONAL TANTALUM NIOBIUM OXIDE TC Series T Cx T Series T xx N Series N xx F Series F38 F Series F xx CATHODE – DIELECTRIC ANODE – conductive polymer Ta2O5 + – MnO2 MnO2 Ta2O5 + Tantalum Nb2O5 Niobium Oxide + Tantalum FIVE CAPACITOR CONSTRUCTION STYLES J-lead Undertab SERIES LINE UP: CONVENTIONAL SMD MnO THJ 200°C Industrial & Automotive THJ 175°C auto TMJ professional low DCL TACmicrochip® Hermetic Conformal 2 F97-HT3 THH 230°C Hermetic TRM TRJ low DCL multianode professional TAJ F91-AJ6 auto TPS auto *T/*U F9H 135°C auto F97 professional F98-AJ6 auto F93-AJ6 auto *T / *U TPS 150°C auto auto TPM multianode F93-BE low DCL Standard TAJ Standard Low Profile High CV TAJ TLN undertab F91 TAC Low Profile microchip TLJ microchip F93 TPC microchip TLC Low ESR F98-AS1 undertab, fused F92 F98 undertab The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 042120 17
