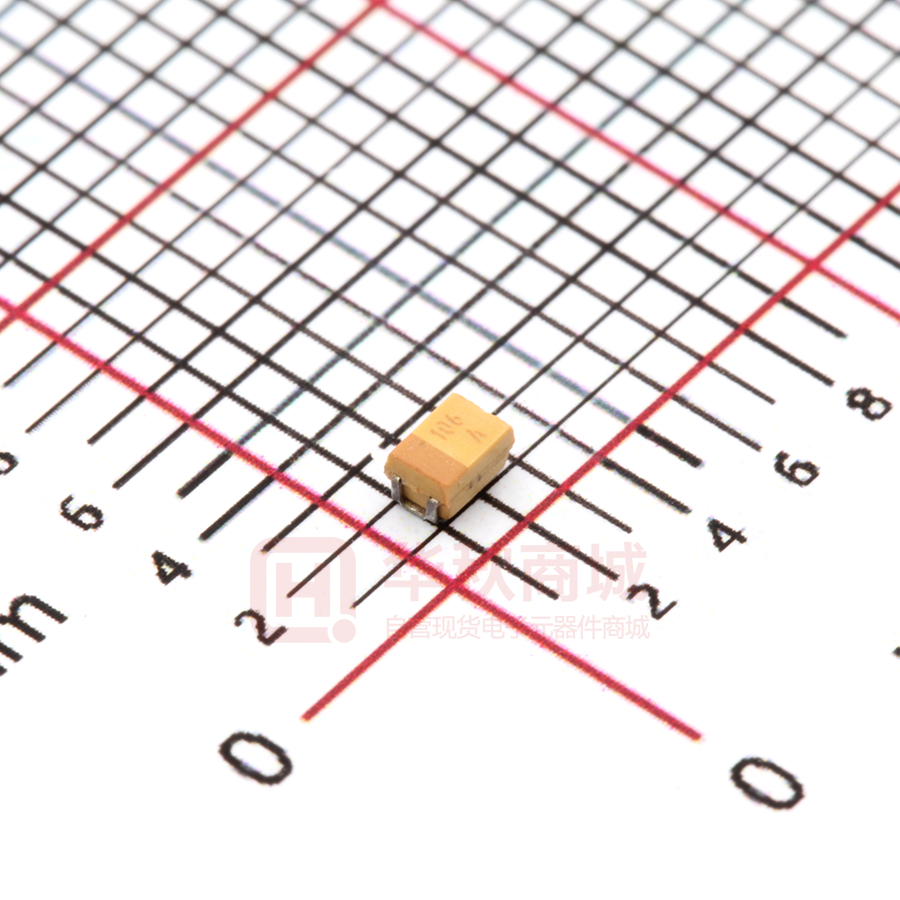

TAJR106M010RNJ

TAJ Series Low Profile FEATURES • General purpose SMT chip tantalum series • CV range: 0.10-1000μF / 2.5-50V • 10 case sizes in low profile option available LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS • Entertainment/Infotainment systems CASE DIMENSIONS: millimeters (inches) Code EIA Code EIA Metric L±0.20 (0.008) W+0.20 (0.008) -0.10 (0.004) F 2312 6032-20 6.00 (0.236) 3.20 (0.126) H Max. W1±0.20 (0.008) A+0.30 (0.012) -0.20 (0.008) S Min. 1.30 (0.051) 2.90 (0.114) 2.00 (0.079) 2.20 (0.087) H 1210 3528-15 3.50 (0.138) 2.80 (0.110) 1.50 (0.059) 2.20 (0.087) 0.80 (0.031) 1.40 (0.055) MARKING K 1206 3216-10 3.20 (0.126) 1.60 (0.063) 1.00 (0.039) 1.20 (0.047) 0.80 (0.031) 1.10 (0.043) F, H, K, S, T, W, X, Y CASE P 0805 2012-15 2.05 (0.081) 1.35 (0.053) 1.50 (0.059) 1.00 ±0.10 (0.039±0.004) 0.50 (0.020) 0.85 (0.033) R 0805 2012-12 2.05 (0.081) 1.30 (0.051) 1.20 (0.047) 1.00 ±0.10 (0.039±0.004) 0.50 (0.020) 0.85 (0.033) S 1206 3216-12 3.20 (0.126) 1.60 (0.063) 1.20 (0.047) 1.20 (0.047) 0.80 (0.031) 1.10 (0.043) T 1210 3528-12 3.50 (0.138) 2.80 (0.110) 1.20 (0.047) 2.20 (0.087) 0.80 (0.031) 1.40 (0.055) W 2312 6032-15 6.00 (0.236) 3.20 (0.126) 1.50 (0.059) 2.20 (0.087) 1.30 (0.051) 2.90 (0.114) X 2917 7343-15 7.30 (0.287) 4.30 (0.169) 1.50 (0.059) 2.40 (0.094) 1.30 (0.051) 4.40 (0.173) Y 2917 7343-20 7.30 (0.287) 4.30 (0.169) 2.00 (0.079) 2.40 (0.094) 1.30 (0.051) 4.40 (0.173) AVX LOGO Polarity Band (Anode+) Capacitance Value in pF 227 = 220µF 227 A Rated Voltage Code A = 10V XXXXX ID Code P, R CASE Capacitance Value in pF 106 = 10µF Polarity Band (Anode+) W1 dimension applies to the termination width for A dimensional area only. 106 J Rated Voltage Code J = 6.3V HOW TO ORDER TAJ C 107 Type Case Size See table above Capacitance Code pF code: 1st two digits represent significant figures 3rd digit represents multiplier (number of zeros to follow) M 010 Tolerance K = ±10% M = ±20% Rated DC Voltage 002 = 2.5Vdc 004 = 4Vdc 006 = 6.3Vdc 010 = 10Vdc 016 = 16Vdc 020 = 20Vdc 025 = 25Vdc 035 = 35Vdc 050 = 50Vdc R NJ Packaging Specification Suffix R = Pure Tin 7" Reel NJ = Standard S = Pure Tin 13" Reel Suffix A = Gold Plating 7" Reel B = Gold Plating 13" Reel A, B = on selected codes, please contact manufacturer — Additional characters may be added for special requirements V = Dry pack Option (selected codes only) TECHNICAL SPECIFICATIONS Technical Data: Capacitance Range: Capacitance Tolerance: Rated Voltage (VR) Category Voltage (VC) Surge Voltage (VS) Surge Voltage (VS) Temperature Range: Reliability: Termination Finished: 030917 ⱕ +85°C: ⱕ +125°C: ⱕ +85°C: ⱕ +125°C: All technical data relate to an ambient temperature of +25°C 0.10 μF to 1000 μF ±10%; ±20% 2.5 4 6.3 10 16 20 25 1.7 2.7 4 7 10 13 17 3.3 5.2 8 13 20 26 32 2.2 3.4 5 8 13 16 20 -55°C to +125°C 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level Sn Plating (standard), Gold and SnPb Plating upon request For AEC-Q200 availability, please contact AVX 35 23 46 28 50 33 65 40 37 TAJ Series Low Profile CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance μF Code 0.10 0.15 0.22 0.33 0.47 0.68 1.0 1.5 2.2 3.3 4.7 6.8 10 15 22 33 47 68 100 150 220 330 470 680 1000 Available Ratings 104 154 224 334 474 684 105 155 225 335 475 685 106 156 226 336 476 686 107 157 227 337 477 687 108 2.5V (e) R R R/S R P/R K/P/S P(M)/S T T/W T(M)/W W/Y W(M)/Y F/Y Y Y(M) 4V (G) 6.3V (J) Rated voltage DC (VR ) to 85°C 10V (A) 16V (C) 20V (D) R/S R/S R/S R/S R/S R/S R/S R/S R/S/T R/S R/S/T R/S/T R/S/T R/S/T P/R/S/T R/S/T P/R/S/T K/P/R(M)/S/T R/S/T K/P/R/S/T S/T/W K/P/R/S/T K/P(M)/S/T/W T/W K/P(M)/S/T/W T/W W T/W T/W H/W/Y T/W W W/Y T(M)/W W/Y W/X/Y W/Y W/X/Y F/X(M)/Y W/X/Y F/X/Y Y F/X/Y Y Y Y Y(M) R/S R/S/T R/S R/S/T R/S/T K/P/S/T S/T T/W T(M)/W W W/Y W/X/Y F/X/Y F(M)/Y Y(M) R/S R/S R/S R/S R/S R/S/T R/S/T P/R/S/T P/R/S/T T T T W W W/Y X/Y X/Y Y 25V (E) R R R R/S R/S P/R/S P/S/T T T/W T/W W W Y F/Y Y Y 35V (V) 50V (T) R/S R/S R/S R/S R/S/T P/S/T P/S/T T T W W Y X/Y Y Y S S P/R/S P/R(M)/S/T S/T W W W Y X/Y Y (M tolerance only) Note: Voltage ratings are minimum values. AVX reserves the right to supply higher ratings in the same case size, to the same reliability standards. 38 030917 TAJ Series Low Profile RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Temperature Voltage Temperature (ºC) (V) (ºC) TAJR475*002#NJ TAJR685*002#NJ TAJR106*002#NJ TAJS106*002#NJ TAJR156*002#NJ TAJP226*002#NJ TAJR226*002#NJ TAJK336*002#NJ TAJP336*002#NJ TAJS336*002#NJ TAJP476M002#NJ TAJS476*002#NJ TAJT686*002#NJ TAJT107*002#NJ TAJW107*002#NJ TAJT157M002#NJ TAJW157*002#NJ TAJW227*002#NJ TAJY227*002#NJ TAJW337M002#NJ TAJY337*002#NJ TAJF477*002#NJ TAJY477*002#NJ TAJY687*002#NJ TAJY108M002#NJ R R R S R P R K P S P S T T W T W W Y W Y F Y Y Y 4.7 6.8 10 10 15 22 22 33 33 33 47 47 68 100 100 150 150 220 220 330 330 470 470 680 1000 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR225*004#NJ TAJS225*004#NJ TAJR335*004#NJ TAJS335*004#NJ TAJR475*004#NJ TAJS475*004#NJ TAJR685*004#NJ TAJS685*004#NJ TAJT685*004#NJ TAJR106*004#NJ TAJS106*004#NJ TAJT106*004#NJ TAJR156*004#NJ TAJS156*004#NJ TAJT156*004#NJ TAJK226*004#NJ TAJP226*004#NJ TAJR226*004#NJ TAJS226*004#NJ TAJT226*004#NJ TAJK336*004#NJ TAJP336M004#NJ TAJS336*004#NJ TAJT336*004#NJ TAJW336*004#NJ TAJT476*004#NJ TAJW476*004#NJ TAJT686*004#NJ TAJW686*004#NJ TAJT107M004#NJ TAJW107*004#NJ TAJW157*004#NJ TAJY157*004#NJ TAJW227*004#NJ TAJX227*004#NJ TAJY227*004#NJ TAJF337*004#NJ TAJX337*004#NJ TAJY337*004#NJ TAJY477*004#NJ TAJY687M004#NJ R S R S R S R S T R S T R S T K P R S T K P S T W T W T W T W W Y W X Y F X Y Y Y 2.2 2.2 3.3 3.3 4.7 4.7 6.8 6.8 6.8 10 10 10 15 15 15 22 22 22 22 22 33 33 33 33 33 47 47 68 68 100 100 150 150 220 220 220 330 330 330 470 680 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR155*006#NJ TAJS155*006#NJ R S 1.5 1.5 6.3 6.3 85 85 030917 2.5 Volt @ 85°C 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 1.7 125 4 Volt @ 85°C 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 2.7 125 6.3 Volt @ 85°C 4 125 4 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) MSL 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.7 0.7 1.2 1.2 1.4 2.5 2.5 3.8 3.8 5.5 5.5 8.2 8.2 11.8 11 17 25 6 6 8 6 8 8 8 8 8 8 12 8 8 15 8 18 8 8 8 12 8 12 12 12 30 20 20 4.5 8 4.1 3.5 3.8 1.7 3.5 1.5 3.2 1.6 1.5 1.3 0.4 1.2 0.3 0.3 0.3 0.3 0.3 0.3 0.2 0.2 0.2 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.9 0.9 0.9 0.9 0.9 1.3 1.3 1.3 1.3 1.3 1.9 1.9 2.7 2.7 4 4 6 6 8.8 8.8 8.8 13.2 13.2 13.2 18.8 27.2 6 6 6 6 6 6 6 6 6 6 6 6 8 8 6 8 8 8 8 6 10 8 8 6 6 10 6 15 6 14 6 6 6 8 8 8 10 8 12 14 25 0.5 0.5 6 6 100kHz RMS Current (mA) 25ºC 85ºC 125ºC 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 11) 1 11) 11) 11) 52 52 111 90 116 131 120 188 131 208 137 202 231 248 474 258 548 548 645 548 645 577 791 791 791 47 47 99 81 104 118 108 169 118 187 123 181 208 223 427 232 493 493 581 493 581 520 712 712 712 21 21 44 36 46 52 48 75 52 83 55 81 92 99 190 103 219 219 258 219 258 231 316 316 316 25 25 20 18 12 10 5.2 8 6 7 6 5 4 4 2 1.8 4 3.8 3.5 1.9 1.7 2.8 1.7 1.7 0.6 1.6 0.5 1.5 0.4 1.4 0.4 0.5 0.4 0.3 0.9 0.3 0.3 0.3 0.4 0.4 0.2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 11) 11) 1 11) 11) 11) 11) 47 51 52 60 68 81 103 90 115 89 104 126 117 127 200 183 122 120 136 205 188 146 196 217 387 224 424 231 474 239 474 424 559 548 577 645 577 577 559 559 791 42 46 47 54 61 73 93 81 104 80 94 114 106 115 180 164 110 108 123 185 169 132 176 195 349 201 382 208 427 215 427 382 503 493 520 581 520 520 503 503 712 19 20 21 24 27 32 41 36 46 35 42 51 47 51 80 73 49 48 55 82 75 59 78 87 155 89 170 92 190 96 190 170 224 219 231 258 231 231 224 224 316 25 25 1 1 47 51 42 46 19 20 39 TAJ Series Low Profile RATINGS & PART NUMBER REFERENCE AVX Part No. 40 Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Temperature Voltage Temperature (ºC) (V) (ºC) TAJR225*006#NJ TAJS225*006#NJ TAJR335*006#NJ TAJS335*006#NJ TAJR475*006#NJ TAJS475*006#NJ TAJT475*006#NJ TAJR685*006#NJ TAJS685*006#NJ TAJT685*006#NJ TAJP106*006#NJ TAJR106*006#NJ TAJS106*006#NJ TAJT106*006#NJ TAJK156*006#NJ TAJP156*006#NJ TAJR156*006#NJ TAJS156*006#NJ TAJT156*006#NJ TAJK226*006#NJ TAJP226M006#NJ TAJS226*006#NJ TAJT226*006#NJ TAJW226*006#NJ TAJT336*006#NJ TAJW336*006#NJ TAJT476*006#NJ TAJW476*006#NJ TAJW686*006#NJ TAJW107*006#NJ TAJY107*006#NJ TAJW157*006#NJ TAJX157*006#NJ TAJY157*006#NJ TAJF227*006#NJ TAJX227*006#NJ TAJY227*006#NJ TAJY337*006#NJ TAJY477*006#NJ R S R S R S T R S T P R S T K P R S T K P S T W T W T W W W Y W X Y F X Y Y Y 2.2 2.2 3.3 3.3 4.7 4.7 4.7 6.8 6.8 6.8 10 10 10 10 15 15 15 15 15 22 22 22 22 22 33 33 47 47 68 100 100 150 150 150 220 220 220 330 470 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR105*010#NJ TAJS105*010#NJ TAJR155*010#NJ TAJS155*010#NJ TAJR225*010#NJ TAJS225*010#NJ TAJR335*010#NJ TAJS335*010#NJ TAJT335*010#NJ TAJR475*010#NJ TAJS475*010#NJ TAJT475*010#NJ TAJP685*010#NJ TAJR685*010#NJ TAJS685*010#NJ TAJT685*010#NJ TAJK106*010#NJ TAJP106*010#NJ TAJR106M010#NJ TAJS106*010#NJ TAJT106*010#NJ TAJS156*010#NJ TAJT156*010#NJ TAJW156*010#NJ TAJT226*010#NJ TAJW226*010#NJ TAJW336*010#NJ TAJH476*006#NJ TAJW476*010#NJ TAJY476*010#NJ TAJW686*010#NJ R S R S R S R S T R S T P R S T K P R S T S T W T W W H W Y W 1 1 1.5 1.5 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 6.8 6.8 6.8 6.8 10 10 10 10 10 15 15 15 22 22 33 47 47 47 68 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 4 125 10 Volt @ 85°C 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) MSL 25ºC 85ºC 125ºC 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.9 0.9 0.9 0.9 0.9 1.3 1.3 1.3 1.4 1.3 2.1 2 2.8 2.8 4.3 6.3 6.3 9 9 9.5 13.2 13.2 13.9 20.8 28.2 6 6 6 6 6 6 6 8 6 6 8 8 8 6 6 8 8 8 6 10 8 10 8 6 10 6 10 6 6 6 6 8 6 6 10 8 8 12 20 20 18 12 9 7 7.5 6 7 2.6 5 6 6 4 4 2 3.5 4.1 3.5 3.5 1.8 3.3 1.8 2.5 0.6 2.5 0.5 1.6 0.5 1.5 0.9 0.7 0.3 0.4 0.4 0.3 0.3 0.7 0.4 0.2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 11) 11) 1 11) 11) 11) 11) 52 60 68 85 89 93 115 89 158 126 100 96 127 141 173 131 116 136 151 183 135 190 179 387 179 424 224 424 245 316 423 548 500 559 577 577 423 559 791 47 54 61 76 80 84 104 80 142 114 90 86 115 127 156 118 104 123 136 164 121 171 161 349 161 382 201 382 220 285 380 493 450 503 520 520 380 503 712 21 24 27 34 35 37 46 35 63 51 40 38 51 57 69 52 46 55 60 73 54 76 72 155 72 170 89 170 98 126 169 219 200 224 231 231 169 224 316 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.7 0.7 0.7 1 1 1 1 1 1.5 1.5 1.5 2.2 2.2 3.3 4.7 4.7 4.7 6.8 4 4 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 8 20 8 6 6 8 6 8 6 6 8 6 6 6 25 25 20 20 15 12 8 8 6 9 5 5 5 5.2 4 4 2.2 6 6 3 3 2 2.8 0.7 2.2 0.6 1.6 1.0 1.4 0.5 1.2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 47 51 52 57 61 74 83 90 115 78 114 126 110 103 127 141 165 100 96 147 163 180 169 359 191 387 237 283 254 500 274 42 46 47 51 54 66 75 81 104 70 103 114 99 93 115 127 149 90 86 132 147 162 152 323 172 349 213 255 228 450 246 19 20 21 23 24 29 33 36 46 31 46 51 44 41 51 57 66 40 38 59 65 72 68 143 76 155 95 113 101 200 110 100kHz RMS Current (mA) 030917 TAJ Series Low Profile RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Temperature Voltage Temperature (ºC) (V) (ºC) TAJY686*010#NJ TAJW107*010#NJ TAJX107*010#NJ TAJY107*010#NJ TAJF157*010#NJ TAJX157M010#NJ TAJY157*010#NJ TAJY227*010#NJ Y W X Y F X Y Y 68 100 100 100 150 150 150 220 10 10 10 10 10 10 10 10 85 85 85 85 85 85 85 85 TAJR684*016#NJ TAJS684*016#NJ TAJR105*016#NJ TAJS105*016#NJ TAJT105*016#NJ TAJR155*016#NJ TAJS155*016#NJ TAJR225*016#NJ TAJS225*016#NJ TAJT225*016#NJ TAJR335*016#NJ TAJS335*016#NJ TAJT335*016#NJ TAJK475*016#NJ TAJP475*016#NJ TAJS475*016#NJ TAJT475*016#NJ TAJS685*016#NJ TAJT685*016#NJ TAJT106*016#NJ TAJW106*016#NJ TAJT156M016#NJ TAJW156*016#NJ TAJW226*016#NJ TAJW336*016#NJ TAJY336*016#NJ TAJW476*016#NJ TAJX476*016#NJ TAJY476*016#NJ TAJF686*016#NJ TAJX686*016#NJ TAJY686*016#NJ TAJF107M016#NJ TAJY107*016#NJ TAJY157M016#NJ R S R S T R S R S T R S T K P S T S T T W T W W W Y W X Y F X Y F Y Y 0.68 0.68 1 1 1 1.5 1.5 2.2 2.2 2.2 3.3 3.3 3.3 4.7 4.7 4.7 4.7 6.8 6.8 10 10 15 15 22 33 33 47 47 47 68 68 68 100 100 150 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR104*020#NJ TAJS104*020#NJ TAJR154*020#NJ TAJS154*020#NJ TAJR224*020#NJ TAJS224*020#NJ TAJR334*020#NJ TAJS334*020#NJ TAJR474*020#NJ TAJS474*020#NJ TAJR684*020#NJ TAJS684*020#NJ TAJT684*020#NJ TAJR105*020#NJ TAJS105*020#NJ TAJT105*020#NJ TAJP155*020#NJ TAJR155*020#NJ TAJS155*020#NJ TAJT155*020#NJ TAJP225*020#NJ TAJR225*020#NJ TAJS225*020#NJ TAJT225*020#NJ TAJT335*020#NJ TAJT475*020#NJ R S R S R S R S R S R S T R S T P R S T P R S T T T 0.1 0.1 0.15 0.15 0.22 0.22 0.33 0.33 0.47 0.47 0.68 0.68 0.68 1 1 1 1.5 1.5 1.5 1.5 2.2 2.2 2.2 2.2 3.3 4.7 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 030917 7 125 7 125 7 125 7 125 7 125 7 125 7 125 7 125 16 Volt @ 85°C 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 10 125 20 Volt @ 85°C 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) MSL 25ºC 85ºC 125ºC 6.8 10 10 10 15 15 15 22 6 6 8 6 10 6 6 10 0.9 0.4 0.9 0.9 0.3 0.3 1.2 0.5 11) 1 11) 11) 1 11) 11) 11) 373 474 333 373 577 577 323 500 335 427 300 335 520 520 290 450 149 190 133 149 231 231 129 200 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.8 0.8 0.8 0.8 1.1 1.1 1.6 1.6 2.4 2.4 3.5 5.3 5.3 7.5 7.5 7.5 10.9 10.9 10.9 16 16 24 4 4 4 4 4 6 6 6 6 6 8 6 6 6 8 8 6 8 6 8 6 6 6 6 6 6 6 6 6 10 8 6 10 8 15 25 25 20 15 5 10 12 6.5 6 6.5 5 5 5 3.1 5 4 3.1 2.4 3.5 2.2 2 2 0.7 1.6 1.5 0.9 0.4 0.75 0.7 0.4 0.6 0.9 0.4 0.9 0.3 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 11) 11) 1 11) 11) 1 11) 11) 47 51 52 66 126 74 74 92 104 111 105 114 126 139 110 127 161 165 151 191 212 200 359 237 245 373 474 365 423 500 408 373 500 373 645 42 46 47 59 114 67 66 83 94 100 94 103 114 125 99 115 145 148 136 172 191 180 323 213 220 335 427 329 380 450 367 335 450 335 581 19 20 21 26 51 30 29 37 42 44 42 46 51 56 44 51 64 66 60 76 85 80 143 95 98 149 190 146 169 200 163 149 200 149 258 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.7 0.9 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 25 25 25 25 25 25 25 25 25 25 20 25 15 20 12 9 9.6 9.6 5.4 6.5 8.3 6 4.5 6 3 3.1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 47 51 47 51 47 51 47 51 47 51 52 51 73 52 74 94 79 76 110 111 85 96 120 115 163 161 42 46 42 46 42 46 42 46 42 46 47 46 66 47 66 85 71 68 99 100 77 86 108 104 147 145 19 20 19 20 19 20 19 20 19 20 21 20 29 21 29 38 32 30 44 44 34 38 48 46 65 64 100kHz RMS Current (mA) 41 TAJ Series Low Profile RATINGS & PART NUMBER REFERENCE AVX Part No. 42 Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Temperature Voltage Temperature (ºC) (V) (ºC) TAJT685*020#NJ TAJW106*020#NJ TAJW156*020#NJ TAJW226*020#NJ TAJY226*020#NJ TAJX336*020#NJ TAJY336*020#NJ TAJX476*020#NJ TAJY476*020#NJ TAJY686*020#NJ T W W W Y X Y X Y Y 6.8 10 15 22 22 33 33 47 47 68 20 20 20 20 20 20 20 20 20 20 85 85 85 85 85 85 85 85 85 85 TAJR154*025#NJ TAJR224*025#NJ TAJR334*025#NJ TAJR474*025#NJ TAJS474*025#NJ TAJR684*025#NJ TAJS684*025#NJ TAJP105*025#NJ TAJR105*025#NJ TAJS105*025#NJ TAJP155*025#NJ TAJS155*025#NJ TAJT155*025#NJ TAJT225*025#NJ TAJT335*025#NJ TAJW335*025#NJ TAJT475*025#NJ TAJW475*025#NJ TAJW685*025#NJ TAJW106*025#NJ TAJY156*025#NJ TAJF226*025#NJ TAJY226*025#NJ TAJY336*025#NJ TAJY476*025#NJ R R R R S R S P R S P S T T T W T W W W Y F Y Y Y 0.15 0.15 0.15 0.47 0.47 0.68 0.68 1 1 1 1.5 1.5 1.5 2.2 3.3 3.3 4.7 4.7 6.8 10 15 22 22 33 47 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJR104*035#NJ TAJS104*035#NJ TAJR154*035#NJ TAJS154*035#NJ TAJR224*035#NJ TAJS224*035#NJ TAJR334*035#NJ TAJS334*035#NJ TAJR474*035#NJ TAJS474*035#NJ TAJT474*035#NJ TAJP684*035#NJ TAJS684*035#NJ TAJT684*035#NJ TAJP105*035#NJ TAJS105*035#NJ TAJT105*035#NJ TAJT155*035#NJ TAJT225*035#NJ TAJW335*035#NJ TAJW475*035#NJ TAJY685*035#NJ TAJX106*035#NJ TAJY106*035#NJ TAJY156*035#NJ TAJY226*035#NJ R S R S R S R S R S T P S T P S T T T W W Y X Y Y Y 0.1 0.1 0.15 0.15 0.22 0.22 0.33 0.33 0.47 0.47 0.47 0.68 0.68 0.68 1 1 1 1.5 2.2 3.3 4.7 6.8 10 10 15 22 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 85 TAJS104*050#NJ TAJS154*050#NJ TAJP224*050#NJ TAJR224*050#NJ TAJS224*050#NJ TAJP334*050#NJ TAJR334M050#NJ S S P R S P R 0.1 0.15 0.22 0.22 0.22 0.33 0.33 50 50 50 50 50 50 50 85 85 85 85 85 85 85 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 13 125 25 Volt @ 85°C 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 17 125 35 Volt @ 85°C 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 23 125 50 Volt @ 85°C 33 125 33 125 33 125 33 125 33 125 33 125 33 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) MSL 25ºC 85ºC 125ºC 1.4 2 3 4.4 4.4 6.6 6.6 9.4 9.4 13.6 6 6 6 6 6 6 6 6 6 6 2.6 1.9 1.7 1.6 0.9 0.5 0.6 0.4 0.9 0.9 1 1 1 1 11) 11) 11) 11) 11) 11) 175 218 230 237 373 447 456 500 373 373 158 196 207 213 335 402 411 450 335 335 70 87 92 95 149 179 183 200 149 149 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.8 0.8 1.2 1.2 1.7 2.5 3.8 5.5 5.5 8.3 11.8 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 6 6 6 6 6 6 24 21 17 15 9 13 8 11 8 8 9.6 5.4 5 4.5 3.5 1.6 3.1 1.2 2 1.8 1 1 0.8 0.5 0.9 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 1 11) 11) 11) 48 51 57 61 85 65 90 74 83 90 79 110 126 133 151 237 161 274 212 224 354 316 395 500 373 43 46 51 54 76 59 81 66 75 81 71 99 114 120 136 213 145 246 191 201 318 285 356 450 335 19 20 23 24 34 26 36 30 33 36 32 44 51 53 60 95 64 110 85 89 141 126 158 200 149 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 5 0.5 0.8 1.2 1.6 2.3 3.5 3.5 5.3 7.7 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 6 6 6 6 6 6 6 6 6 29 24 24 21 21 18 17 15 15 12 10 13 8 8 11 7.5 6.5 5.2 4.2 1.6 2.2 0.9 0.7 1 0.6 0.5 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 11) 11) 11) 11) 11) 44 52 48 56 51 60 57 66 61 74 89 68 90 100 74 93 111 124 138 237 202 373 378 354 456 500 39 47 43 50 46 54 51 59 54 66 80 61 81 90 66 84 100 112 124 213 182 335 340 318 411 450 17 21 19 22 20 24 23 26 24 29 36 27 36 40 30 37 44 50 55 95 81 149 151 141 183 200 0.5 0.5 0.5 0.5 0.5 0.5 0.5 4 4 4 4 4 4 4 19 16 17 17 13 17 17 1 1 1 1 1 1 1 58 64 59 57 71 59 57 53 57 53 51 64 53 51 23 25 24 23 28 24 23 100kHz RMS Current (mA) 030917 TAJ Series Low Profile RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) TAJS334*050#NJ TAJT334*050#NJ TAJS474*050#NJ TAJT474*050#NJ TAJW105*050#NJ TAJW155*050#NJ TAJW225*050#NJ TAJY335*050#NJ TAJX475*050#NJV TAJY475*050#NJ TAJY685*050#NJ S T S T W W W Y X Y Y 0.33 0.33 0.47 0.47 1 1.5 2.2 3.3 4.7 4.7 6.8 Rated Voltage (V) Rated Category Category Temperature Voltage Temperature (ºC) (V) (ºC) 50 50 50 50 50 50 50 50 50 50 50 85 85 85 85 85 85 85 85 85 85 85 33 33 33 33 33 33 33 33 33 33 33 125 125 125 125 125 125 125 125 125 125 125 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (Ω) MSL 0.5 0.5 0.5 0.5 0.5 0.8 1.1 1.7 2.4 2.4 3.4 4 4 4 4 6 6 8 4 6 6 6 11 11 9.5 9.5 4.4 3.1 2.5 1.5 1.0 1.2 0.9 1 1 1 1 1 1 1 11) 3 11) 11) 100kHz RMS Current (mA) 25ºC 85ºC 125ºC 77 85 83 92 143 170 190 289 316 323 373 69 77 74 83 129 153 171 260 285 290 335 31 34 33 37 57 68 76 115 126 129 149 11) – Dry pack option (see How to order) recommended for reduction of stress during soldering. Dry pack parts should be treated as MSL 3. Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. For typical weight and composition see page 227. NOTE: AVX reserves the right to supply a higher voltage rating or tighter tolerance part in the same case size, to the same reliability standards. QUALIFICATION TABLE TAJ low profile series (Temperature range -55ºC to +125ºC) Condition Characteristics TEST Endurance Humidity Determine after application of rated voltage for 2000 +48/-0 hours at 85±2ºC and then leaving 1-2 hours at room temperature. Also determine of 125ºC temperature, category voltage for 2000 +48/-0 hours and then leaving 1-2 hours at room temperature. Power supply impedance to be ≤0.1Ω/V. Determine after storage without applied voltage at 65±2ºC and 95±2% relative humidity for 500 hours and then recovery 1-2 hours at room temperature. Visual examination no visible damage DCL 1.25 x initial limit ΔC/C within ±10% of initial value DF initial limit Visual examination no visible damage DCL initial limit ΔC/C within ±10% of initial value DF Temperature Stability Surge Voltage Step 1 2 3 4 5 6 Temperature°C +20±2 -55+0/-3 +20±2 +85+3/-0 +125+3/-0 +20±2 Duration(min) 15 15 15 15 15 15 Test temperature: 125ºC+3/0ºC Test voltage: Category voltage at 125ºC Surge voltage: 1.3 x category voltage at 125ºC Series protection resistance 1000±100Ω Discharge resistance: 1000Ω Number of cycles: 1000x Cycle duration: 6 min; 30 sec charge, 5 min 30 sec discharge 1.2 x initial limit +20ºC -55ºC +20ºC +85ºC DCL IL* n/a IL* ΔC/C n/a +0/-10% ±5% DF IL* 1.5 x IL* IL* Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit +125ºC +20ºC 10 x IL* 12.5 x IL* IL* +10/-0% +12/-0% ±5% 1.5 x IL* 2 x IL* IL* *Initial Limit 030917 43
