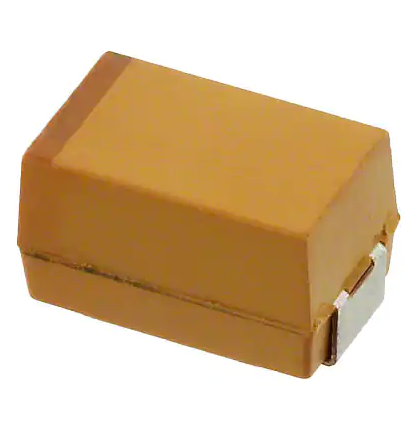

TCJB685M025R0150

TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors FEATURES • Conductive polymer electrode • Benign failure mode under recommended use conditions • Lower ESR • 3x reflow 260°C compatible • CV range: 0.47-470μF / 2.5-125V • 18 case sizes available LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS Elektra Award 2010 • Smart phone, Tablets, Notebook, LCD TV, Power supplies CASE DIMENSIONS: millimeters (inches) A B C D E G H K N EIA Code 1206 1210 2312 2917 2917 1206 1210 1206 0805 EIA Metric 3216-18 3528-21 6032-28 7343-31 7343-43 3216-15 3528-15 3216-10 2012-10 L±0.20 W+0.20 (0.008) H+0.20 (0.008) (0.008) -0.10 (0.004) -0.10 (0.004) 3.20 (0.126) 1.60 (0.063) 1.60 (0.063) 3.50 (0.138) 2.80 (0.110) 1.90 (0.075) 6.00 (0.236) 3.20 (0.126) 2.60 (0.102) 7.30 (0.287) 4.30 (0.169) 2.90 (0.114) 7.30 (0.287) 4.30 (0.169) 4.10 (0.162) 3.20 (0.126) 1.60 (0.063) 1.50 (0.059) max 3.50 (0.138) 2.80 (0.110) 1.50 (0.059) max 3.20 (0.126) 1.60 (0.063) 1.00 (0.039) max 2.05 (0.081) 1.30 (0.051) 1.00 (0.039) max P 0805 2012-15 2.05 (0.081) 1.35 (0.053) 1.50 (0.059) max R 0805 2012-12 2.05 (0.081) 1.30 (0.051) 1.20 (0.047) max S T U W X Y 5 1206 1210 2924 2312 2917 2917 2917 3216-12 3528-12 7361-43 6032-15 7343-15 7343-20 7343-40 3.20 (0.126) 3.50 (0.138) 7.30 (0.287) 6.00 (0.236) 7.30 (0.287) 7.30 (0.287) 7.30 (0.287) 1.60 (0.063) 2.80 (0.110) 6.10 (0.240) 3.20 (0.126) 4.30 (0.169) 4.30 (0.169) 4.30 (0.169) 1.20 (0.047) max 1.20 (0.047) max 4.10 (0.162) 1.50 (0.059) max 1.50 (0.059) max 2.00 (0.079) max 3.80 (0.150) Code MARKING A, B, C, D, E, G, H, K, S, T, U, W, X, Y, 5 CASE AVX LOGO Polymer Polarity Band (Anode+) Capacitance Value in pF 156 = 15µF 156 J XXXXX AVX LOGO Polymer Polarity Band (Anode+) Rated Voltage J = 6.3V ID Code Capacitance Value in pF 476 = 47µF 476 E XXXXX Rated Voltage E = 25V ID Code N, P, R CASE Capacitance Value in pF 106 = 10µF Polarity Band (Anode+) 106 J Rated Voltage Code J = 6.3V W1±0.20 (0.008) 1.20 (0.047) 2.20 (0.087) 2.20 (0.087) 2.40 (0.094) 2.40 (0.094) 1.20 (0.047) 2.20 (0.087) 1.20 (0.047) 1.00 (0.039) 1.00±0.10 (0.039±0.004) 1.00±0.10 (0.039±0.004) 1.20 (0.047) 2.20 (0.087) 3.10 (0.120) 2.20 (0.087) 2.40 (0.094) 2.40 (0.094) 2.40 (0.094) A+0.30 (0.012) -0.20 (0.008) 0.80 (0.031) 0.80 (0.031) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 0.80 (0.031) 0.80 (0.031) 0.80 (0.031) 0.50 (0.020) 1.10 (0.043) 1.40 (0.055) 2.90 (0.114) 4.40 (0.173) 4.40 (0.173) 1.10 (0.043) 1.40 (0.055) 1.10 (0.043) 0.85 (0.033) 0.50 (0.020) 0.85 (0.033) 0.50 (0.020) 0.85 (0.033) 0.80 (0.031) 0.80 (0.031) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.30 (0.051) 1.10 (0.043) 1.40 (0.055) 4.40 (0.173) 2.90 (0.114) 4.40 (0.173) 4.40 (0.173) 4.40 (0.173) S Min. W1 dimension applies to the termination width for A dimensional area only. AVX LOGO Polymer HOW TO ORDER TCJ A 226 Type Case Size See table above Capacitance Code pF code: 1st two digits represent significant figures, 3rd digit represents multiplier (number of zeros to follow) M 004 Tolerance M = ±20% Rated DC Voltage 002 = 2.5Vdc 004 = 4Vdc 006 = 6.3Vdc 010 = 10Vdc 016 = 16Vdc 020 = 20Vdc 025 = 25Vdc 035 = 35Vdc 050 = 50Vdc 063 = 63Vdc 075 = 75Vdc 100 = 100Vdc 125 = 125Vdc R 0300 E Packaging ESR in mΩ Additional R = Pure Tin 7" Reel Character E = Black resin S = Pure Tin 13" Reel TECHNICAL SPECIFICATIONS (Common for all TCJ series) Technical Data: Capacitance Tolerance: Leakage Current DCL: Reliability: Resistance to soldering heat: All technical data relate to an ambient temperature of +25°C ±20% 0.1CV 1% per 1000 hours at 85°C, VR with 0.1Ω/V series impedance, 60% confidence level 3x260°C peak for max. 10s reflow NOTE: Conductive Polymer Capacitors are designed to operate within the limits of the environmental conditions specified for each series. If operated continuously at their maximum temperature and / or humidity limit, or beyond these limits, capacitors may exhibit a parametric shift in capacitance and increases in ESR. These changes may occur earlier if the specified environmental conditions are exceeded. Similarly, their normal operational time period will be significantly extended if their general duty cycle includes operation below maximum temperature within humidity controlled environments. Careful attention should be paid to maximum temperature with associated high humidity environments as well as voltage derating, ripple current and current surges. Please reference the AVX Conductive Polymer Capacitor Guidelines for more information or contact factory for application assistance. 071119 199 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Cap μF Code 0.47 474 0.68 684 Rated Voltage DC (VR) to 85°C 2.5V (e) 4V (G) 6.3V (J) 10V (A) 16V (C) 20V (D) 25V (E) 35V (V) 50V (T) 63V (J) 75V (P) 100V (A) 125V (B) B(400) P(500) B(400) B(300) B(300) B(300) C(300) 1.0 105 1.5 155 B(200) B(300) C(300) C(300) 2.2 225 B(200) C(300) C(200) 3.3 335 B(200) C(200) C(200) B(100,150) B(200) C(200) C(200) X(250) Y(250) C(200) D(120) D(150) A(150), B(90,150) T(100,150) C(200) C(200) D(120) D(120) E(100,150) D(120) A(150) B(90,100,150) B(200) C(200) Y(70) D(90,120) E(70,100) E(100,150) B(100,150) Y(90) B(200), C(200) D(70,100) Y(70,100) E(70,100) 4.7 475 6.8 685 10 106 15 156 22 K(300,500) R(500) A(200) A(300) N(200,250,500) R(500) A(200,300) A(200) B(100,200) T(100,150,200) A(300) A(300) A(200) B(150) 226 A(300) A(300), K(400) N(500), R(500) S(400), T(150) B(300) T(70,150) A(300) B(150) B(90,150) Y(70) B(100,150), C(100) D(60,100) Y(70) D(70,100) Y(150) 33 336 A(300) A(200) B(70,200) T(150) B(70,200) C(100) T(70,150) A(200) H(150) Y(45,60,70) Y(70) D(60,100) X(70,100) Y(60,70,100) D(70,100) E(55,70) U(70), Y(100) 47 476 A(200) T(80) A(70,100,200), B(70) K(150,200,400) P(500), R(500) T(55,70,80,120) B(70) C(100) H(100) X(45,70) Y(45,70) D(55) X(55,70) Y(70) D(60,100) E(50) Y(100) E(55), U(70) Y(100) 68 686 A(250) A(250) B(70) T(80) B(55,70) C(100), H(100) T(200), W(70) D(45,55) Y(45,55) D(50) Y(50) D(55) E(45) Y(50) D(70) E(50) Y(100) 100 107 A(200), B(70) A(200) B(40,70) G(300) T(70,150) A(100,150) B(40,45,55,70) T(70,200) D(18,25,45,55,80) Y(18,25,45,55) D(50), E(40) Y(50) D(55) E(45) Y(55) D(55,70) E(80) U(70) 150 157 B(70) B(70), D(15) Y(15,25,45) B(25,35,45,55,70) D(12,15,25,40) H(200), W(40,70) Y(15,25,40) D(25,40,45,55) Y(25,40,45,55) D(40,50,70) E(40) Y(40,50,70) 220 227 B(35,45,70) B(35,45,55,60,70) D(12,15,25,40) Y(15,25,40) B(70,200) D(12,15,25,35,40,50) H(170) Y(15,25,35,40,50) D(15,25,40,50) Y(15,25,40,50) D(50 330 337 B(35,45,70) Y(25,40) D(15,25,40,50) Y(15,25,40,50) D(12,15,18,25,40,50) Y(15,25,40,50) D(25) 5(35,100) E(50,70) 5(100) 470 477 D(12,15,25,40,50) D(10,12,15,25,40,50) Y(15,25,40,50) Y(15,25,40,50) D(25) X(50,55,100) Released ratings, (ESR ratings in mOhms in parentheses) Engineering samples - please contact AVX 200 A(150) D(250) D(250) U(70) U(70) 5(100) Note: Voltage ratings are minimum values. AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards. 071119 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Maximum Operating Temperature (ºC) TCJA686M002#0250E TCJA107M002#0200E TCJB107M002#0070E TCJB157M002#0070E TCJB227M002#0035E TCJB227M002#0045E TCJB227M002#0070E TCJB337M002#0035E TCJB337M002#0045E TCJB337M002#0070E TCJY337M002#0025E TCJY337M002#0040E TCJD477M002#0012 TCJD477M002#0015E TCJD477M002#0025E TCJD477M002#0040E TCJD477M002#0050E TCJY477M002#0015 TCJY477M002#0025E TCJY477M002#0040E TCJY477M002#0050E A A B B B B B B B B Y Y D D D D D Y Y Y Y 68 100 100 150 220 220 220 330 330 330 330 330 470 470 470 470 470 470 470 470 470 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 2.5 105 105 125 105 105 105 105 105 105 105 105 105 105 105 105 105 105 85 105 105 105 TCJA156M004#0300E TCJA226M004#0300E TCJA336M004#0300E TCJA476M004#0200E TCJT476M004#0080E TCJA686M004#0250E TCJB686M004#0070E TCJT686M004#0080E TCJA107M004#0200E TCJB107M004#0040E TCJB107M004#0070E TCJG107M004#0300E TCJT107M004#0070E TCJT107M004#0150E TCJB157M004#0070E TCJD157M004#0015 TCJY157M004#0015 TCJY157M004#0025E TCJY157M004#0045E TCJB227M004#0035E TCJB227M004#0045E TCJB227M004#0055 TCJB227M004#0060E TCJB227M004#0070E TCJD227M004#0012 TCJD227M004#0015E TCJD227M004#0025E TCJD227M004#0040E TCJY227M004#0015 TCJY227M004#0025E TCJY227M004#0040E TCJD337M004#0015E TCJD337M004#0025E TCJD337M004#0040E TCJD337M004#0050E TCJY337M004#0015 TCJY337M004#0025E TCJY337M004#0040E TCJY337M004#0050E TCJD477M004#0010 TCJD477M004#0012 TCJD477M004#0015E TCJD477M004#0025E TCJD477M004#0040E TCJD477M004#0050E TCJY477M004#0015 TCJY477M004#0025E TCJY477M004#0040E TCJY477M004#0050E A A A A T A B T A B B G T T B D Y Y Y B B B B B D D D D Y Y Y D D D D Y Y Y Y D D D D D D Y Y Y Y 15 22 33 47 47 68 68 68 100 100 100 100 100 100 150 150 150 150 150 220 220 220 220 220 220 220 220 220 220 220 220 330 330 330 330 330 330 330 330 470 470 470 470 470 470 470 470 470 470 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 125 125 125 105 105 105 125 105 105 105 125 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 85 105 105 105 105 105 105 105 105 105 85 105 105 105 TCJA106M006#0300E TCJN106M006#0200E TCJN106M006#0250E TCJN106M006#0500E TCJR106M006#0500E A N N N R 10 10 10 10 10 6.3 6.3 6.3 6.3 6.3 125 105 105 105 105 071119 DCL Max. (μA) DF Max. (%) 2.5 Volt @ 85°C 17 6 25 6 25 6 37.5 6 55 8 55 8 55 8 82.5 8 82.5 8 82.5 8 82.5 6 82.5 6 117.5 6 117.5 6 117.5 6 117.5 6 117.5 6 117.5 6 117.5 6 117.5 6 117.5 6 4 Volt @ 85°C 6 6 8.8 6 13.2 6 18.8 6 18.8 8 27.2 6 27.2 6 27.2 8 40 6 40 8 40 8 40 10 40 8 40 8 60 6 60 6 60 6 60 6 60 6 88 10 88 10 88 10 88 10 88 10 88 6 88 6 88 6 88 6 88 6 88 6 88 6 132 6 132 6 132 6 132 6 132 6 132 6 132 6 132 6 188 6 188 6 188 6 188 6 188 6 188 6 188 6 188 6 188 6 188 6 6.3 Volt @ 85°C 6 6 6 6 6 6 6 6 6 6 ESR Max. @ 100kHz (mΩ) 45ºC 85ºC 105ºC 125ºC 250 200 70 70 35 45 70 35 45 70 25 40 12 15 25 40 50 15 25 40 50 600 700 1300 1300 1900 1700 1300 1900 1700 1300 2700 2200 4300 3900 3000 2400 2100 3500 2700 2200 1900 400 500 900 900 1300 1200 900 1300 1200 900 1900 1500 3000 2700 2100 1700 1500 2500 1900 1500 1300 300 300 600 600 900 800 600 900 800 600 1200 1000 1900 1800 1400 1100 900 – 1200 1000 900 300 300 300 200 80 250 70 80 200 40 70 300 70 150 70 15 15 25 45 35 45 55 60 70 12 15 25 40 15 25 40 15 25 40 50 15 25 40 50 10 12 15 25 40 50 15 25 40 50 600 600 600 700 1100 600 1300 1100 700 1800 1300 600 1200 800 1300 3900 3500 2700 2000 1900 1700 1500 1400 1300 4300 3900 3000 2400 3500 2700 2200 3900 3000 2400 2100 3500 2700 2200 1900 4700 4300 3900 3000 2400 2100 3500 2700 2200 1900 400 400 400 500 800 400 900 800 500 1300 900 400 800 600 900 2700 2500 1900 1400 1300 1200 1100 1000 900 3000 2700 2100 1700 2500 1900 1500 2700 2100 1700 1500 2500 1900 1500 1300 3300 3000 2700 2100 1700 1500 2500 1900 1500 1300 300 200 250 500 500 600 600 600 400 400 400 400 400 300 300 100kHz RMS Current (mA) Product Category MSL – – 300 – – – – – – – – – – – – – – – – – – 3 3 1 3 3 3 3 3 3 3 2 3 2 2 2 3 3 5 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 300 300 300 300 500 300 600 500 300 800 600 300 500 400 600 1800 1600 1200 900 900 800 700 600 600 1900 1800 1400 1100 1600 1200 1000 1800 1400 1100 900 – 1200 1000 900 2100 1900 1800 1400 1100 900 – 1200 1000 900 200 200 200 – – – 300 – – – 300 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 1 1 1 3 3 3 1 3 3 3 1 3 3 3 3 2 2 2 3 3 3 3 3 3 2 2 2 2 2 2 3 2 2 3 3 5 3 3 3 2 2 2 2 2 2 5 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 300 300 300 200 200 200 – – – – 1 3 3 3 3 3 3 3 3 3 201 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. TCJA156M006#0300E TCJA226M006#0300E TCJK226M006#0400E TCJN226M006#0500E TCJR226M006#0500E TCJS226M006#0400E TCJT226M006#0150E TCJA336M006#0200E TCJB336M006#0070E TCJB336M006#0200E TCJT336M006#0150E TCJA476M006#0070E TCJA476M006#0100E TCJA476M006#0200E TCJB476M006#0070E TCJK476M006#0150E TCJK476M006#0200E TCJK476M006#0400E TCJP476M006#0500E TCJR476M006#0500E TCJT476M006#0055E TCJT476M006#0070E TCJT476M006#0080E TCJT476M006#0120E TCJB686M006#0055E TCJB686M006#0070E TCJC686M006#0100E TCJH686M006#0100E TCJT686M006#0200E TCJW686M006#0070E TCJA107M006#0100E TCJA107M006#0150E TCJB107M006#0040E TCJB107M006#0045E TCJB107M006#0055E TCJB107M006#0070E TCJT107M006#0070E TCJT107M006#0200E TCJB157M006#0025E TCJB157M006#0035E TCJB157M006#0045E TCJB157M006#0055E TCJB157M006#0070E TCJD157M006#0012 TCJD157M006#0015E TCJD157M006#0025E TCJD157M006#0040E TCJH157M006#0200E TCJW157M006#0040E TCJW157M006#0070E TCJY157M006#0015 TCJY157M006#0025E TCJY157M006#0040E TCJB227M006#0070E TCJB227M006#0200E TCJD227M006#0012 TCJD227M006#0015E TCJD227M006#0025E TCJD227M006#0035E TCJD227M006#0040E TCJD227M006#0050E TCJH227M006#0170E TCJY227M006#0015 TCJY227M006#0025E TCJY227M006#0035E TCJY227M006#0040E TCJY227M006#0050E TCJD337M006#0012 TCJD337M006#0015E TCJD337M006#0018E TCJD337M006#0025E TCJD337M006#0040E TCJD337M006#0050E TCJY337M006#0015 TCJY337M006#0025E TCJY337M006#0040E TCJY337M006#0050E TCJD477M006#0025E TCJX477M006#0050 TCJX477M006#0055E TCJX477M006#0100E 202 Case Capacitance Size (μF) A A K N R S T A B B T A A A B K K K P R T T T T B B C H T W A A B B B B T T B B B B B D D D D H W W Y Y Y B B D D D D D D H Y Y Y Y Y D D D D D D Y Y Y Y D X X X 15 22 22 22 22 22 22 33 33 33 33 47 47 47 47 47 47 47 47 47 47 47 47 47 68 68 68 68 68 68 100 100 100 100 100 100 100 100 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 220 220 220 220 220 220 220 220 220 220 220 220 220 220 330 330 330 330 330 330 330 330 330 330 470 470 470 470 Rated Voltage (V) Maximum Operating Temperature (ºC) DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (mΩ) 45ºC 85ºC 105ºC 125ºC 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 125 125 105 105 105 105 105 105 125 125 105 105 105 105 125 105 105 105 105 105 105 105 105 105 125 125 125 105 105 125 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 85 105 105 105 105 105 105 105 105 105 105 85 105 105 105 105 105 105 105 9 13.2 13.2 13.2 13.2 13.2 13.2 19.8 19.8 19.8 19.8 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 28.2 40.8 40.8 40.8 40.8 40.8 40.8 60 60 60 60 60 60 60 60 90 90 90 90 90 90 90 90 90 90 90 90 90 90 90 132 132 132 132 132 132 132 132 132 132 132 132 132 132 198 198 198 198 198 198 198 198 198 198 282 282 282 282 6 6 8 10 10 8 6 6 6 6 8 6 6 6 6 6 6 6 10 10 8 8 8 8 8 8 6 6 8 8 10 10 10 10 10 10 10 10 10 10 10 10 10 6 6 6 6 6 6 6 6 6 6 10 10 6 6 6 6 6 6 10 6 6 6 6 6 6 6 6 6 6 6 12 12 12 12 6 6 6 6 300 300 400 500 500 400 150 200 70 200 150 70 100 200 70 150 200 400 500 500 55 70 80 120 55 70 100 100 200 70 100 150 40 45 55 70 70 200 25 35 45 55 70 12 15 25 40 200 40 70 15 25 40 70 200 12 15 25 35 40 50 170 15 25 35 40 50 12 15 18 25 40 50 15 25 40 50 25 50 55 100 600 600 500 400 400 500 800 700 1300 800 800 1200 1000 700 1300 800 700 500 400 400 1300 1200 1100 900 1500 1300 1300 1000 700 1400 1000 800 1800 1700 1500 1300 1200 700 2200 1900 1700 1500 1300 4300 3900 3000 2400 700 1800 1400 3500 2700 2200 1300 800 4300 3900 3000 2500 2400 2100 800 3500 2700 2300 2200 1900 4300 3900 3500 3000 2400 2100 3500 2700 2200 1900 3000 1900 1800 1300 400 400 400 300 300 400 600 500 900 600 600 800 700 500 900 600 500 400 300 300 900 800 800 600 1100 900 900 700 500 1000 700 600 1300 1200 1100 900 800 500 1500 1300 1200 1100 900 3000 2700 2100 1700 500 1300 1000 2500 1900 1500 900 600 3000 2700 2100 1800 1700 1500 600 2500 1900 1600 1500 1300 3000 2700 2500 2100 1700 1500 2500 1900 1500 1300 2100 1300 1300 900 300 300 200 200 200 200 400 300 600 400 400 500 500 300 600 400 300 200 200 200 600 500 500 400 700 600 600 500 300 600 500 400 800 800 700 600 500 300 1000 900 800 700 600 1900 1800 1400 1100 300 800 600 1600 1200 1000 600 400 1900 1800 1400 1100 1100 900 400 – 1200 1000 1000 900 1900 1800 1600 1400 1100 900 – 1200 1000 900 1400 900 800 600 200 200 – – – – – – 300 200 – – – – 300 – – – – – – – – – 400 300 300 – – 400 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 100kHz RMS Current (mA) Product Category MSL 1 1 3 3 3 3 3 3 1 1 3 3 3 3 1 3 3 3 3 3 3 3 3 3 1 1 1 3 3 1 3 3 3 3 3 3 3 3 3 3 3 3 3 2 2 2 2 3 3 3 2 2 3 3 3 2 2 2 3 3 3 3 5 2 2 2 2 3 3 3 3 2 2 5 3 3 3 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 071119 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Maximum Operating Temperature (ºC) TCJK475M010#0300E TCJK475M010#0500E TCJR475M010#0500E TCJA106M010#0200E TCJA106M010#0300E TCJA156M010#0200E TCJB226M010#0300E TCJT226M010#0070E TCJT226M010#0150E TCJB336M010#0070E TCJB336M010#0200E TCJC336M010#0100E TCJT336M010#0070E TCJT336M010#0150E TCJB476M010#0070E TCJC476M010#0100E TCJH476M010#0100E TCJD686M010#0045E TCJD686M010#0055E TCJY686M010#0045E TCJY686M010#0055E TCJD107M010#0018 TCJD107M010#0025E TCJD107M010#0045E TCJD107M010#0055E TCJD107M010#0080E TCJY107M010#0018 TCJY107M010#0025E TCJY107M010#0045E TCJY107M010#0055E TCJD157M010#0025E TCJD157M010#0040E TCJD157M010#0045E TCJD157M010#0055E TCJY157M010#0025E TCJY157M010#0040E TCJY157M010#0045E TCJY157M010#0055E TCJD227M010#0015 TCJD227M010#0025E TCJD227M010#0040E TCJD227M010#0050E TCJY227M010#0015 TCJY227M010#0025E TCJY227M010#0040E TCJY227M010#0050E TCJD337M010#0025E TCJ5337M010#0035E TCJ5337M010#0100E K K R A A A B T T B B C T T B C H D D Y Y D D D D D Y Y Y Y D D D D Y Y Y Y D D D D Y Y Y Y D 5 5 4.7 4.7 4.7 10 10 15 22 22 22 33 33 33 33 33 47 47 47 68 68 68 68 100 100 100 100 100 100 100 100 100 150 150 150 150 150 150 150 150 220 220 220 220 220 220 220 220 330 330 330 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 105 105 105 125 125 125 125 105 105 125 125 125 105 105 105 125 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 85 105 105 105 105 105 105 TCJA685M016#0200E TCJA106M016#0200E TCJB106M016#0100E TCJB106M016#0200E TCJT106M016#0100E TCJT106M016#0150E TCJT106M016#0200E TCJB156M016#0150E TCJA226M016#0300E TCJB226M016#0150E TCJA336M016#0200E TCJH336M016#0150E TCJY336M016#0045E TCJY336M016#0060E TCJY336M016#0070E TCJX476M016#0045E TCJX476M016#0070E TCJY476M016#0045E TCJY476M016#0070E TCJD686M016#0050E TCJY686M016#0050E TCJD107M016#0050E TCJE107M016#0040E TCJY107M016#0050E TCJD157M016#0040E TCJD157M016#0050E TCJD157M016#0070E TCJE157M016#0040E TCJY157M016#0040E TCJY157M016#0050E TCJY157M016#0070E A A B B T T T B A B A H Y Y Y X X Y Y D Y D E Y D D D E Y Y Y 6.8 10 10 10 10 10 10 15 22 22 33 33 33 33 33 47 47 47 47 68 68 100 100 100 150 150 150 150 150 150 150 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 125 125 125 125 125 125 125 125 105 125 105 105 105 105 105 105 105 105 105 105 105 105 105 105 85 85 105 105 85 85 105 071119 DCL Max. (μA) DF Max. (%) 10 Volt @ 85°C 4.7 6 4.7 6 4.7 6 10 6 10 6 15 6 22 6 22 6 22 6 33 6 33 6 33 6 33 6 33 6 47 6 47 6 47 6 68 6 68 6 68 6 68 6 100 6 100 6 100 6 100 6 100 6 100 6 100 6 100 6 100 6 150 6 150 6 150 6 150 6 150 6 150 6 150 6 150 6 220 6 220 6 220 6 220 6 220 6 220 6 220 6 220 6 330 6 330 10 330 10 16 Volt @ 85°C 10.9 6 16 6 16 6 16 6 16 6 16 6 16 6 24 6 35.2 10 35.2 6 52.8 10 52.8 6 52.8 6 52.8 6 52.8 6 75.2 6 75.2 6 75.2 6 75.2 6 108.8 6 108.8 6 160 6 160 6 160 6 240 6 240 6 240 6 240 6 240 6 240 6 240 6 ESR Max. @ 100kHz (mΩ) 45ºC 85ºC 105ºC 125ºC 300 500 500 200 300 200 300 70 150 70 200 100 70 150 70 100 100 45 55 45 55 18 25 45 55 80 18 25 45 55 25 40 45 55 25 40 45 55 15 25 40 50 15 25 40 50 25 35 100 500 400 400 700 600 700 600 1200 800 1300 800 1300 1200 800 1300 1300 1000 2200 2000 2000 1800 3500 3000 2200 2000 1700 3200 2700 2000 1800 3000 2400 2200 2000 2700 2200 2000 1800 3900 3000 2400 2100 3500 2700 2200 1900 3000 2600 1500 400 300 300 500 400 500 400 800 600 900 600 900 800 600 900 900 700 1500 1400 1400 1300 2500 2100 1500 1400 1200 2200 1900 1400 1300 2100 1700 1500 1400 1900 1500 1400 1300 2700 2100 1700 1500 2500 1900 1500 1300 2100 1800 1100 200 200 200 300 300 300 300 500 400 600 400 600 500 400 600 600 500 1000 900 900 800 1600 1400 1000 900 800 1400 1200 900 800 1400 1100 1000 900 1200 1000 900 800 1800 1400 1100 900 – 1200 1000 900 1400 1200 700 200 200 100 200 100 150 200 150 300 150 200 150 45 60 70 45 70 45 70 50 50 50 40 50 40 50 70 40 40 50 70 700 700 1100 800 1000 800 700 900 600 900 700 800 2000 1800 1600 2000 1600 2000 1600 2100 1900 2100 2500 1900 2400 2100 1800 2500 2200 1900 1600 500 500 800 600 700 600 500 600 400 600 500 600 1400 1300 1100 1400 1100 1400 1100 1500 1300 1500 1800 1300 1700 1500 1300 1800 1500 1300 1100 300 300 500 400 500 400 300 400 300 400 300 400 900 800 700 900 700 900 700 900 900 900 1100 900 – – 800 1100 – – 700 100kHz RMS Current (mA) Product Category MSL – – – 200 200 200 200 – – 300 200 300 – – – 300 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 3 3 3 1 1 1 1 3 3 1 1 1 3 3 3 1 3 3 3 3 3 2 2 3 3 3 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 5 3 3 3 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 200 200 300 200 300 200 200 200 – 200 – – – – – – – – – – – – – – – – – – – – – 1 1 1 1 1 1 1 1 3 1 3 3 2 2 2 2 2 2 2 2 2 2 2 2 5 5 3 2 5 5 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 203 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Maximum Operating Temperature (ºC) TCJD227M016#0050E TCJE337M016#0050E TCJE337M016#0070E TCJ5337M016#0100E TCJ5477M016R0100E D E E 5 5 220 330 330 330 470 16 16 16 16 16 105 105 105 105 105 TCJA106M020#0150E TCJB226M020#0090E TCJB226M020#0150E TCJY226M020#0070E TCJY336M020#0070E TCJD476M020#0055E TCJX476M020#0055E TCJX476M020#0070E TCJY476M020#0070E TCJD686M020#0055E TCJE686M020#0045E TCJY686M020#0050E TCJD107M020#0055E TCJE107M020#0045E TCJY107M020#0055E TCJU227M020R0070E A B B Y Y D X X Y D E Y D E Y U 10 22 22 22 33 47 47 47 47 68 68 68 100 100 100 220 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 TCJP105M025#0500E TCJB475M025#0100E TCJB475M025#0150E TCJA685M025#0150E TCJB685M025#0090E TCJB685M025#0150E TCJT685M025#0100E TCJT685M025#0150E TCJA106M025#0150E TCJB106M025#0090E TCJB106M025#0100E TCJB106M025#0150E TCJB156M025#0100E TCJB156M025#0150E TCJY156M025#0090E TCJB226M025#0100E TCJB226M025#0150E TCJC226M025#0100E TCJD226M025#0060E TCJD226M025#0100E TCJY226M025#0070E TCJD336M025#0060E TCJD336M025#0100E TCJX336M025#0070E TCJX336M025#0100E TCJY336M025#0060E TCJY336M025#0070E TCJY336M025#0100E TCJD476M025#0060E TCJD476M025#0100E TCJE476M025#0050E TCJY476M025#0100E TCJD686M025#0070E TCJE686M025#0050E TCJY686M025#0100E TCJD107M025#0055E TCJD107M025#0070E TCJE107M025#0080E TCJU107M025R0070E TCJU157M025R0070E P B B A B B T T A B B B B B Y B B C D D Y D D X X Y Y Y D D E Y D E Y D D E U U 1.0 4.7 4.7 6.8 6.8 6.8 6.8 6.8 10 10 10 10 15 15 15 22 22 22 22 22 22 33 33 33 33 33 33 33 47 47 47 47 68 68 68 100 100 100 100 150 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 125 105 TCJB155M035#0200E TCJB225M035#0200E TCJB335M035#0200E TCJB475M035#0200E TCJC475M035#0200E TCJC685M035#0200E TCJB106M035#0200E TCJC106M035#0200E TCJY106M035#0070E TCJB156M035#0200E TCJC156M035#0200E TCJD156M035#0070E TCJD156M035#0100E TCJY156M035#0070E TCJY156M035#0100E TCJD226M035#0070E B B B B C C B C Y B C D D Y Y D 1.5 2.2 3.3 4.7 4.7 6.8 10 10 10 15 15 15 15 15 15 22 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 204 DCL Max. (μA) DF Max. (%) 352 10 528 10 528 10 528 10 752 10 20 Volt @ 85°C 20 6 44 6 44 6 44 6 66 6 94 6 94 6 94 6 94 6 136 6 136 6 136 6 200 6 200 6 200 6 440 12 25 Volt @ 85°C 2.5 6 11.8 6 11.8 6 17 6 17 6 17 6 17 6 17 6 25 6 25 6 25 6 25 6 37.5 6 37.5 6 37.5 6 55 6 55 6 55 6 55 6 55 6 55 6 82.5 6 82.5 6 82.5 6 82.5 6 82.5 6 82.5 6 82.5 6 117.5 6 117.5 6 117.5 6 117.5 6 170 6 170 6 170 6 250 6 250 6 250 6 250 12 375 12 35 Volt @ 85°C 5.3 6 7.7 6 11.6 6 16.5 6 16.5 6 23.8 6 35 6 35 6 35 6 52.5 6 52.5 6 52.5 6 52.5 6 52.5 6 52.5 6 77 6 ESR Max. @ 100kHz (mΩ) 45ºC 85ºC 105ºC 125ºC 50 50 70 100 100 2100 2200 1900 1500 1500 1500 1500 1300 1100 1100 900 1000 900 700 700 150 90 150 70 70 55 55 70 70 55 45 50 55 45 55 70 800 1200 900 1600 1600 2000 1800 1600 1600 2000 2400 1900 2000 2400 1800 2300 600 800 600 1100 1100 1400 1300 1100 1100 1400 1700 1300 1400 1700 1300 1600 500 100 150 150 90 150 100 150 150 90 100 150 100 150 90 100 150 100 60 100 70 60 100 70 100 60 70 100 60 100 50 100 70 50 100 55 70 80 70 70 400 1100 900 800 1200 900 1000 800 800 1200 1100 900 1100 900 1400 1100 900 1300 1900 1500 1600 1900 1500 1600 1300 1800 1600 1400 1900 1500 2200 1400 1800 2200 1400 2000 1800 1800 2300 2300 200 200 200 200 200 200 200 200 70 200 200 70 100 70 100 70 800 800 800 800 900 900 800 900 1600 800 900 1800 1500 1600 1400 1800 100kHz RMS Current (mA) Product Category MSL – – – – – 2 2 2 2 3 3 3 3 3 3 400 500 400 700 700 900 800 700 700 900 1100 900 900 1100 800 1000 – – – – – – – – – – – – – – – – 3 3 3 2 2 2 3 3 2 3 2 2 2 3 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 300 800 600 600 800 600 700 600 600 800 800 600 800 600 1000 800 600 900 1300 1100 1100 1300 1100 1100 900 1300 1100 1000 1300 1100 1500 1000 1300 1500 1000 1400 1300 1300 1600 1600 200 500 400 400 500 400 500 400 400 500 500 400 500 400 600 500 400 600 900 700 700 900 700 700 600 800 700 600 900 700 1000 600 800 1000 600 900 800 800 1000 1000 – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – 600 – 2 3 3 3 2 3 3 3 3 2 2 2 2 2 2 2 2 3 2 2 3 2 2 2 2 2 2 2 3 3 3 3 2 3 3 2 2 2 1 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 600 600 600 600 600 600 600 600 1100 600 600 1300 1100 1100 1000 1300 400 400 400 400 400 400 400 400 700 400 400 800 700 700 600 800 – – – – – – – – – – – – – – – – 2 3 3 3 3 3 2 3 2 2 3 3 3 3 3 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 071119 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Maximum Operating Temperature (ºC) TCJD226M035#0100E TCJY226M035#0150E TCJD336M035#0070E TCJD336M035#0100E TCJE336M035#0055E TCJE336M035#0070E TCJU336M035R0070E TCJY336M035#0100E TCJE476M035#0055E TCJU476M035R0070E TCJY476M035#0100E D Y D D E E U Y E U Y 22 22 33 33 33 33 33 33 47 47 47 35 35 35 35 35 35 35 35 35 35 35 105 105 105 105 105 105 125 105 105 125 105 TCJB684M050#0400E TCJB105M050#0300E TCJB155M050#0300E TCJC155M050#0300E TCJC225M050#0300E TCJC335M050#0200E TCJC475M050#0200E TCJX475M050#0250E TCJY475M050#0250E TCJC685M050#0200E TCJD685M050#0120E TCJD106M050#0090E TCJD106M050#0120E TCJE106M050#0070E TCJE106M050#0100E TCJE156M050#0070E TCJE156M050#0100E B B B C C C C X Y C D D D E E E E 0.68 1.0 1.5 1.5 2.2 3.3 4.7 4.7 4.7 6.8 6.8 10 10 10 10 15 15 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 50 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 105 TCJB474M063#0400E TCJB684M063#0300E TCJB105M063#0300E TCJC105M063#0300E TCJC155M063#0300E TCJC225M063#0200E TCJC335M063#0200E TCJC475M063#0200E TCJD475M063#0120E TCJD685M063#0120E TCJE685M063#0100E TCJE685M063#0150E TCJE106M063#0100E TCJE106M063#0150E B B B C C C C C D D E E E E 0.47 0.68 1.0 1.0 1.5 2.2 3.3 4.7 4.7 6.8 6.8 6.8 10 10 63 63 63 63 63 63 63 63 63 63 63 63 63 63 105 105 105 105 105 105 105 105 105 105 105 105 105 105 TCJD475M075#0150E TCJD685M075#0120E D D 4.7 6.8 75 75 105 105 TCJD475M100#0250E D 4.7 100 105 TCJD335M125#0250E D 3.3 125 105 DCL Max. (μA) DF Max. (%) ESR Max. @ 100kHz (mΩ) 45ºC 85ºC 105ºC 125ºC 100 150 70 100 55 70 70 100 55 70 100 1500 1100 1800 1500 2100 1900 2300 1400 2100 2300 1400 1100 800 1300 1100 1500 1300 1600 1000 1500 1600 1000 700 500 800 700 900 900 1000 600 900 1000 600 400 300 300 300 300 200 200 250 250 200 120 90 120 70 100 70 100 600 600 600 800 800 900 900 800 900 900 1400 1600 1400 1900 1600 1900 1600 400 400 400 600 600 600 600 600 600 600 1000 1100 1000 1300 1100 1300 1100 400 300 300 300 300 200 200 200 120 120 100 150 100 150 600 600 600 800 800 900 900 900 1400 1400 1600 1300 1600 1300 150 120 77 6 77 6 115.5 6 115.5 6 115.5 6 115.5 6 115.5 12 115.5 6 164.5 6 164.5 12 164.5 6 50 Volt @ 85°C 3.4 6 5 6 7.5 6 7.5 6 11 6 16.5 8 23.5 8 23.5 6 23.5 6 34 8 34 10 50 10 50 10 50 6 50 6 75 6 75 6 63 Volt @ 85°C 3 8 4.3 8 6.3 8 6.3 6 9.5 6 13.9 6 20.8 6 29.6 6 29.6 6 42.8 6 42.8 6 42.8 6 63 6 63 6 75 Volt @ 85°C 35.3 6 51 6 100 Volt @ 85°C 47 8 125 Volt @ 85°C 41.2 8 100kHz RMS Current (mA) Product Category MSL – – – – – – 600 – – 600 – 2 3 2 2 3 3 1 3 2 1 3 3 3 3 3 3 3 3 3 3 3 3 300 300 300 400 400 400 400 400 400 400 600 700 600 900 700 900 700 – – – – – – – – – – – – – – – – – 3 3 3 3 3 3 3 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 5 5 3 3 3 3 3 3 3 3 400 400 400 600 600 600 600 600 1000 1000 1100 900 1100 900 300 300 300 400 400 400 400 400 600 600 700 600 700 600 – – – – – – – – – – – – – – 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 1200 1400 800 1000 500 600 – – 3 3 3 3 250 900 600 400 – 4 3 250 900 600 400 – 4 3 Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25ºC. Capacitance and DF are measured at 120Hz, 0.5RMS with DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. ESR allowed to move up to 1.25 times catalog limit post mounting. For typical weight and composition see page 274. NOTE: AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards. RECOMMENDED DERATING FACTOR Voltage and temperature derating as percentage of Vr Product Category 1 Product Category 2 100% 100% 95% 90% 85% 80% 75% 70% Rated Voltage 95% 90% Recommended Application Voltage for Vr ≤ 10V 85% 80% Recommended Application Voltage for Vr ≥ 16V 75% 70% Rated Voltage 95% Recommended Application Voltage for Vr ≤ 10V 90% Recommended Application Voltage for Vr ≥ 16V 80% 85% 75% 70% 67% 55% 50% -55ºC 071119 85ºC 100% 95% Rated Voltage 90% Recommended Application Voltage for Vr ≤ 10V Recommended Application Voltage for Vr ≥ 16V 85% 80% 80% 75% 72% 70% 65% 65% 60% 60% 60% 60% 54% 55% 55% 55% 50% -55ºC 50% -55ºC 65% 60% Product Category 5 Product Category 3, 4 100% 125ºC 85ºC 105ºC Rated Voltage Recommended Application Voltage for Vr ≤ 10V Recommended Application Voltage for Vr ≥16V 65% 64% 85ºC 105ºC 50% -55ºC 85ºC 205 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors PRODUCT CATEGORY 1 (TEMPERATURE RANGE -55°C TO +125°C) TEST Endurance Condition Apply rated voltage (Ur) at 85ºC and / or 2/3 rated voltage (Ur) at 125ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Storage Life Store at 125ºC, no voltage applied, for 2000 hours. Stabilize at room temperature for 1-2 hours before measuring. Humidity Store at 65ºC and 95% relative humidity fo 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Temperature Stability Surge Voltage Step 1 2 3 4 5 6 Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x 2/3x rated voltage (Ur) at 125ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D *Initial Limit 206 DCL ΔC/C DF Visual examination Characteristics no visible damage 1.25 x initial limit within +10/-20% of initial value 1.5 x initial limit 2 x initial limit no visible damage 2 x initial limit within +10/-20% of initial value 1.5 x initial limit 2 x initial limit no visible damage 3 x initial limit within +35/-5% of initial value 1.5 x initial limit 2 x initial limit +20ºC -55ºC +20ºC +85ºC IL* n/a IL* 10 x IL* n/a +0/-20% ±5% +20/-0% IL* 1.5 x IL* IL* 1.5 x IL* no visible damage DCL ΔC/C DF Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR initial limit within +10/-20% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR +125ºC +20ºC 12.5 x IL* IL* +30/-0% ±5% 2 x IL* IL* Initial measurement max. 1hr after the removal from dry pack or after pretreatment at 85°C for 24 hours. 071119 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors PRODUCT CATEGORY 2, 3, 4 (TEMPERATURE RANGE -55°C TO +105°C) TEST Condition Endurance Apply rated voltage (Ur) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V (all CATEGORIES). And / or apply rated voltage (Ur) (CATEGORY 2) or 0.8x rated voltage (CATEGORY 3, 4) at 105°C for 2000 hours through a circuit impedance of ≤0.1Ω/V Always stabilize at room temperature for 1-2 hours before measuring. Storage Life Humidity Temperature Stability Surge Voltage Store at 105ºC, no voltage applied, for 2000 hours. Stabilize at room temperature for 1-2 hours before measuring. Store at 65ºC and 95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Step Temperature°C Duration(min) 1 +20 15 2 -55 15 3 +20 15 4 +85 15 5 +105 15 6 +20 15 Apply 1.3x rated voltage (Ur) at 105ºC for CATEGORY 2, or apply 1.3x 0.8x rated voltage (Ur) at 105ºC for CATEGORY 3, 4 for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D *Initial Limit 071119 Characteristics Visual examination no visible damage DCL 1.25 x initial limit ΔC/C within +10/-20% of initial value DF 1.5 x initial limit ESR 2 x initial limit Visual examination DCL (VR ≤ 75V) DCL (VR > 75V) ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR no visible damage 1.25 x initial limit 2 x initial limit within +10/-20% of initial value 1.5 x initial limit 2 x initial limit no visible damage 3 x initial limit within +35/-5% of initial value 1.5 x initial limit 2 x initial limit +20ºC -55ºC +20ºC DCL IL* n/a IL* +85ºC ΔC/C n/a +0/-20% DF Visual examination IL* 1.5 x IL* IL* no visible damage DCL ΔC/C DF Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR initial limit within +10/-20% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit +105ºC +20ºC 10 x IL* 12.5 x IL* IL* ±5% +20/-0% +30/-0% ±5% 1.5 x IL* 2 x IL* IL* Initial measurement max. 1hr after the removal from dry pack or after pretreatment at 85°C for 24 hours. 207 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors PRODUCT CATEGORY 5 (TEMPERATURE RANGE -55°C TO +85°C) TEST Condition Endurance Apply rated voltage (Ur) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Storage Life Store at 85ºC, no voltage applied, for 2000 hours. Stabilize at room temperature for 1-2 hours before measuring. Humidity Store at 65ºC and 95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Temperature Stability Surge Voltage Step 1 2 3 4 5 Temperature°C +20 -55 +20 +85 +20 Duration(min) 15 15 15 15 15 Apply 1.3x rated voltage (Ur) at 85ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D *Initial Limit 208 DCL ΔC/C DF Visual examination Characteristics no visible damage 1.25 x initial limit within +10/-20% of initial value 1.5 x initial limit 2 x initial limit no visible damage 1.25 x initial limit within +10/-20% of initial value 1.5 x initial limit 2 x initial limit no visible damage 5 x initial limit within +35/-5% of initial value 1.5 x initial limit 2 x initial limit +20ºC -55ºC +20ºC +85ºC IL* n/a IL* 10 x IL* n/a +0/-20% ±5% +20/-0% IL* 1.5 x IL* IL* 1.5 x IL* no visible damage DCL ΔC/C DF Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR initial limit within +10/-20% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR +20ºC IL* ±5% IL* Initial measurement max. 1hr after the removal from dry pack or after pretreatment at 85°C for 24 hours. 071119 TCJ Series Conductive Polymer Solid Electrolytic Chip Capacitors AVX SOLID ELECTROLYTIC CAPACITOR ROADMAP SERIES LINE UP: CONDUCTIVE POLYMER F39 071119 209
