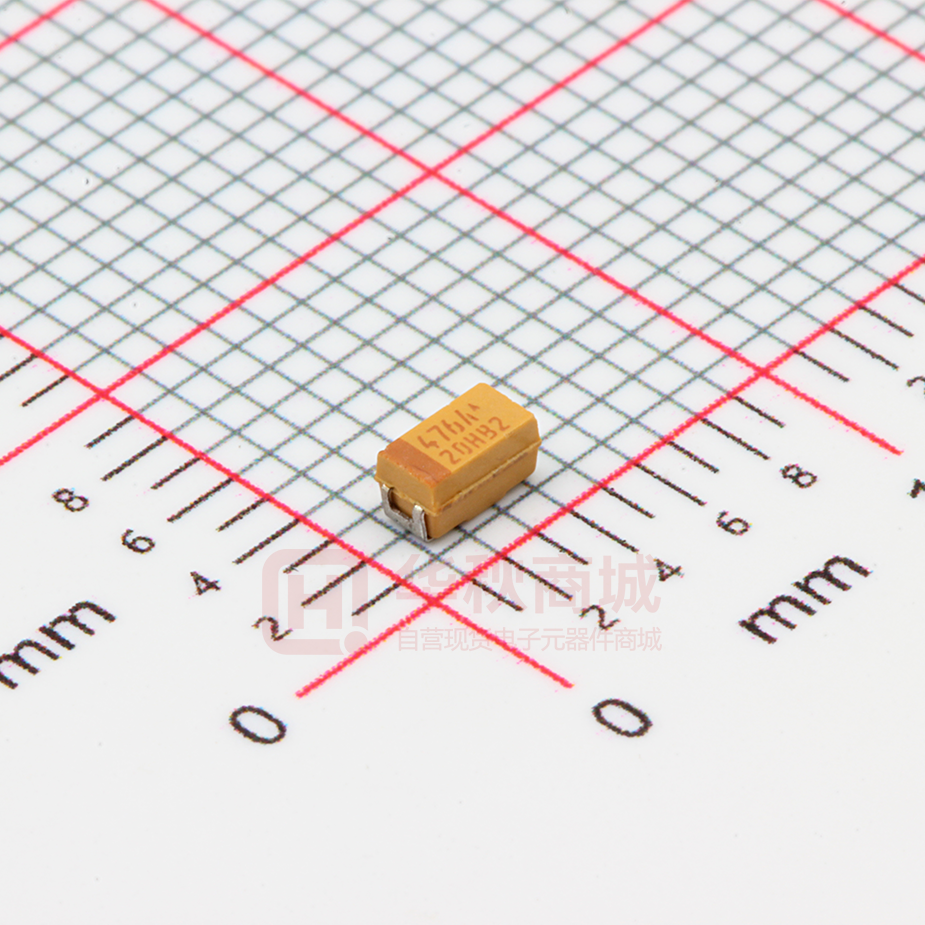

TLJA476M010R0600

TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series FEATURES • • • • • • High Volumetric Efficiency 3x reflow 260°C compatible 14 case sizes available including low profile codes Environmentally friendly Consumer applications (e.g. mobiles phones, PDA etc.) CV range: 10-1500μF / 2.5-20V LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS • Mobile phones • MP3/4 players CASE DIMENSIONS: MARKING A, B, F, G, H, K, S, T, V, W, Y CASE Capacitance Value in pF 107 = 100μF Polarity Band (Anode+) Rated Voltage J = 6.3V 10 7 J AVX LOGO XXXXX ID Code N, P, R CASE Capacitance Value in pF 106 = 10μF 106 Polarity Band (Anode+) J AVX LOGO Rated Voltage Code J = 6.3V millimeters (inches) Code EIA Code EIA Metric L±0.20 (0.008) W+0.20 (0.008) -0.10 (0.004) H+0.20 (0.008) -0.10 (0.004) W1±0.20 (0.008) A+0.30 (0.012) -0.20 (0.008) S Min. A 1206 3216-18 3.20 (0.126) 1.60 (0.063) 1.60 (0.063) 1.20 (0.047) 0.80 (0.031) 1.10 (0.043) B 1210 3528-21 3.50 (0.138) 2.80 (0.110) 1.90 (0.075) 2.20 (0.087) 0.80 (0.031) 1.40 (0.055) F 2312 6032-20 6.00 (0.236) 3.20 (0.126) 2.00 (0.079) max. 2.20 (0.087) 1.30 (0.051) 2.90 (0.114) G 1206 3216-15 3.20 (0.126) 1.60 (0.063) 1.50 (0.059) max 1.20 0.047) 0.80 (0.031) 1.10 (0.043) H 1210 3528-15 3.50 (0.138) 2.80 (0.110) 1.50 (0.059) max 2.20 (0.087) 0.80 (0.031) 1.40 (0.055) K 1206 3216-10 3.20 (0.126) 1.60 (0.063) 1.00 (0.039) max 1.20 (0.047) 0.80 (0.031) 1.10 (0.043) N 0805 2012-10 2.05 (0.081) 1.30 (0.051) 1.00 (0.039) max 1.00 (0.039) 0.50 (0.020) 0.85 (0.033) P 0805 2012-15 2.05 (0.081) 1.35 (0.053) 1.50 (0.059) max 1.00±0.10 (0.039±0.004) 0.50 (0.020) 0.85 (0.033) R 0805 2012-12 2.05 (0.081) 1.30 (0.051) 1.20 (0.047) max 1.00±0.10 (0.039±0.004) 0.50 (0.020) 0.85 (0.033) S 1206 3216-12 3.20 (0.126) 1.60 (0.063) 1.20 (0.047) max 1.20 (0.047) 0.80 (0.031) 1.10 (0.043) T 1210 3528-12 3.50 (0.138) 2.80 (0.110) 1.20 (0.047) max 2.20 (0.087) 0.80 (0.031) 1.40 (0.033) V 2924 7361-38 7.30 (0.287) 6.10 (0.240) 3.55 (0.140) 3.10 (0.120) 1.30( 0.051) 4.40 (0.173) W 2312 6032-15 6.00 (0.236) 3.20 (0.126) 1.50 (0.059) max 2.20 (0.087) 1.30 (0.051) 2.90 (0.114) Y 2917 7343-20 7.30 (0.287) 4.30 (0.169) 2.00 (0.079) max 2.40 (0.094) 1.30 (0.051) 4.40 (0.173) W1 dimension applies to the termination width for A dimensional area only. HOW TO ORDER TLJ W Type Case Size See table above 157 M Capacitance Code pF code: 1st two digits represent significant figures, 3rd digit represents multiplier (number of zeros to follow) Tolerance M = ±20% 010 R Rated DC Voltage Packaging 002 = 2.5Vdc R = Pure Tin 7" Reel 004 = 4Vdc S = Pure Tin 13" Reel 006 = 6.3Vdc 010 = 10Vdc 016 = 16Vdc 020 = 20Vdc 0200 ESR in mΩ TECHNICAL SPECIFICATIONS Technical Data: Capacitance Range: Capacitance Tolerance: Rated Voltage (VR) Category Voltage (VC) Category Voltage (VC) Temperature Range: Reliability: 44 -55°C  +40°C: at 85°C: at 125°C: All technical data relate to an ambient temperature of +25°C 10 μF to 1500 μF ±20% 2.5 4 6.3 10 16 20 1.3 2 3.2 5 8 10 0.5 0.8 1.3 2 3.2 4 -55°C to +125°C with category voltage 0.2% per 1000 hours at 85°C, 0.5xVR with 0.1Ω/V series impedance with 60% confidence level 030918 TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance μF Code 6.8 685 2.5V (e) 4V (G) Rated Voltage DC to 40°C / 0.5DC to 85°C / 0.2DC to 125°C 6.3V (J) 10V (A) 16V (C) 10 106 15 156 22 226 33 336 N(8000)/R(3000) 47 476 K(1500)/N(4000) P(3000)/R(3000) 68 686 100 107 150 157 220 227 330 470 680 1000 1500 337 477 687 108 158 N(5400)/R(3500) K(1200)/N(8000) P(3000) R(2900)/S(1500) A(500)/G(800) K(2000)/P(2700) S(1400) A(800)/T(800) T(1100) A(1100)/G(3000) H(900)/T(1100) T(2700)/W(200) K(1700)/N(8000) P(3000)/R(3000) K(1500)/N(8300) P(700,900,1800,2500) R(3200)/S(1500) A(500)/G(800) K(2000) S(1500)/T(600) A(500,800)/G(800) K(2000) P(5400)/T(800) A(900) H(900)/T(1200) B(500)/T(2000) W(200) F(300) N(2500) R(2000,3000) R(2000) K(1800)/N(3800) R(3800) K(1500)/N(9600) P(3500) R(3500)/S(1500) A(600)/G(1500) P(3200)/R(3200) S(1500)/T(600) S(2200) 20V (D) T(1000) T(1000) T(1000) A(1500) A(1400) H(900)/T(900) B(500) W(150,200) F(300) Y(100,150) V(100) Released ratings, (ESR ratings in mOhms in parentheses) Note: Voltage ratings are minimum values. AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards. Voltage vs Temperature Rating rated range 120% recommended derating 100% 80% 100% 100% 80% 80% 60% 67% 50% 40% 33% 20% 0% -55°C 030918 20% 0°C 40°C 60°C 85°C 105°C 125°C 45 TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Maximum Temperature Voltage Temperature Surge Current (ºC) (V) (ºC) (A) TLJT227M002#1200 T 220 2.5 40 TLJN336M004#8000 TLJR336M004#3000 TLJK476M004#1500 TLJN476M004#4000 TLJP476M004#3000 TLJR476M004#3000 TLJK686M004#1200 TLJN686M004#8000 TLJP686M004#3000 TLJR686M004#2900 TLJS686M004#1500 TLJA107M004#0500 TLJG107M004#0800 TLJK107M004#2000 TLJP107M004#2700 TLJS107M004#1400 TLJA157M004#0800 TLJT157M004#0800 TLJA227M004#1100 TLJG227M004#3000 TLJH227M004#0900 TLJT227M004#1100 TLJT337M004#2700 TLJW337M004#0200 N R K N P R K N P R S A G K P S A T A G H T T W 33 33 47 47 47 47 68 68 68 68 68 100 100 100 100 100 150 150 220 220 220 220 330 330 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 TLJN226M006#5400 TLJR226M006#3500 TLJK336M006#1700 TLJN336M006#8000 TLJP336M006#3000 TLJR336M006#3000 TLJK476M006#1500 TLJN476M006#8300 TLJP476M006#0700 TLJP476M006#0900 TLJP476M006#1800 TLJP476M006#2500 TLJR476M006#3200 TLJS476M006#1500 TLJA686M006#0500 TLJG686M006#0800 TLJK686M006#2000 TLJS686M006#1500 TLJT686M006#0600 TLJA107M006#0500 TLJA107M006#0800 TLJG107M006#0800 TLJK107M006#2000 TLJP107M006#5400 TLJT107M006#0800 TLJA157M006#0900 TLJH157M006#0900 TLJT157M006#1200 TLJB227M006#0500 TLJT227M006#2000 TLJW227M006#0200 TLJF337M006#0300 TLJY687M006#0100 TLJY687M006#0150 TLJV158M006#0100 N R K N P R K N P P P P R S A G K S T A A G K P T A H T B T W F Y Y V 22 22 33 33 33 33 47 47 47 47 47 47 47 47 68 68 68 68 68 100 100 100 100 100 100 150 150 150 220 220 220 330 680 680 1500 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 6.3 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 46 2.5 Volt @ 40°C 125 4 Volt @ 40°C 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 0.8 125 6.3 Volt @ 40°C 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 1.3 125 0.5 DCL Max. (μA) ESR Max. @ 100kHz (mΩ) 0.8 5.5 0.2 0.6 1.0 0.6 0.6 0.6 1.2 0.2 1.2 0.6 1.0 2.1 1.6 0.8 0.6 1.1 1.6 1.6 1.3 0.6 1.5 1.3 0.6 3.1 0.5 0.8 1.5 0.4 0.9 0.9 1.6 0.4 2.7 2.3 1.4 1.1 0.9 1.6 3.3 1.9 1.3 1.6 3.0 3.3 2.5 2.5 1.3 0.5 2.5 2.3 2.3 1.9 3.3 1.3 4.8 4.2 5.7 5.7 5.7 100kHz RMS Current (mA) 85ºC 125ºC Product Category MSL 25ºC 1100 270 243 108 2 3 1.3 1.3 1.9 1.9 1.9 1.9 2.7 5.4 2.7 2.7 2.7 4.0 4.0 8.0 8.0 4.0 6.0 6.0 17.6 17.6 8.8 17.6 26.4 13.2 8000 3000 1500 4000 3000 3000 1200 8000 3000 2900 1500 500 800 2000 2700 1400 800 800 1100 3000 900 1100 2700 200 79 135 208 112 141 135 233 79 141 138 208 387 296 180 149 215 306 316 261 153 298 270 172 671 71 122 187 101 127 122 209 71 127 124 187 349 266 162 134 194 276 285 235 137 268 243 155 604 32 54 83 45 57 54 93 32 57 55 83 155 118 72 60 86 122 126 104 61 119 108 69 268 1 2 2 1 2 2 2 1 2 2 2 1 2 2 2 2 2 2 2 2 2 2 2 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 1.3 1.3 2.0 2.0 2.0 2.0 2.8 5.6 2.8 2.8 2.8 2.8 2.8 2.8 4.1 4.1 8.16 4.1 4.1 6.0 6.0 6.0 12.0 12.0 6.0 9.0 9.0 9.0 13.2 26.4 13.2 19.8 40.8 40.8 90 5400 3500 1700 8000 3000 3000 1500 8300 700 900 1800 2500 3200 1500 500 800 2000 1500 600 500 800 800 2000 5400 800 900 900 1200 500 2000 200 300 100 150 100 96 125 196 79 141 135 208 78 293 258 183 155 131 208 387 296 180 208 365 387 306 296 180 105 316 289 298 258 412 200 671 577 1118 913 1581 87 113 176 71 127 122 187 70 263 232 164 139 118 187 349 266 162 187 329 349 276 266 162 95 285 260 268 232 371 180 604 520 1006 822 1423 38 50 78 32 57 54 83 31 117 103 73 62 52 83 155 118 72 83 146 155 122 118 72 42 126 115 119 103 165 80 268 231 447 365 632 1 2 2 1 1 2 2 1 2 2 2 2 2 2 1 2 2 2 1 2 2 2 2 2 2 2 2 2 1 2 1 1 1 1 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 030918 TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series RATINGS & PART NUMBER REFERENCE AVX Part No. Case Capacitance Size (μF) Rated Voltage (V) Rated Category Category Maximum Temperature Voltage Temperature Surge Current (ºC) (V) (ºC) (A) TLJN106M010#2500 TLJR106M010#2000 TLJR106M010#3000 TLJR156M010#2000 TLJK226M010#1800 TLJN226M010#3800 TLJR226M010#3800 TLJK336M010#1500 TLJN336M010#9600 TLJP336M010#3500 TLJR336M010#3500 TLJS336M010#1500 TLJA476M010#0600 TLJG476M010#1500 TLJP476M010#3200 TLJR476M010#3200 TLJS476M010#1500 TLJT476M010#0600 TLJA686M010#1500 TLJA107M010#1400 TLJH107M010#0900 TLJT107M010#0900 TLJB157M010#0500 TLJW157M010#0150 TLJW157M010#0200 TLJF227M010#0300 N R R R K N R K N P R S A G P R S T A A H T B W W F 10 10 10 15 22 22 22 33 33 33 33 33 47 47 47 47 47 47 68 100 100 100 150 150 150 220 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 40 TLJS106M016#2200 TLJT226M016#1000 TLJT336M016#1000 S T T 10 22 33 16 16 16 40 40 40 TLJT106M020#1000 T 10 20 40 10 Volt @ 40°C 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 125 16 Volt @ 40°C 3.2 125 3.2 125 3.2 125 20 Volt @ 40°C 4 125 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 DCL Max. (μA) ESR Max. @ 100kHz (mΩ) 1.7 2.0 1.4 2.0 2.2 1.2 1.2 2.6 0.5 1.3 1.3 2.6 4.8 2.6 1.4 1.4 2.6 4.8 2.6 2.7 3.7 3.7 5.3 8.3 7.7 6.7 1.0 1.0 1.0 1.5 2.2 2.2 2.2 3.3 6.6 3.3 3.3 3.3 4.7 4.7 4.7 9.4 4.7 4.7 6.8 10.0 10.0 10.0 15.0 15.0 15.0 22.0 3.0 5.5 5.5 6.9 100kHz RMS Current (mA) 85ºC 125ºC Product Category MSL 25ºC 2500 2000 3000 2000 1800 3800 3800 1500 9600 3500 3500 1500 600 1500 3200 3200 1500 600 1500 1400 900 900 500 150 200 300 141 166 135 166 167 115 120 208 72 131 125 208 354 216 137 131 208 365 224 231 298 298 412 775 671 577 127 149 122 149 150 103 108 187 65 118 113 187 318 194 123 118 187 329 201 208 268 268 371 697 604 520 57 66 54 66 67 46 48 83 29 52 50 83 141 86 55 52 83 146 89 93 119 119 165 310 268 231 1 1 1 1 2 1 2 2 1 2 2 2 1 2 2 2 2 1 2 2 2 2 1 1 1 1 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 3 1.6 3.5 5.3 2200 1000 1000 172 283 283 155 255 255 69 113 113 1 1 1 3 3 3 2.0 1000 283 255 113 1 3 Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25°C. Capacitance is measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. ESR allowed to move up to 1.25 times catalogue limit post mounting DCL allowed to move up to 2.00 times catalogue limit post mounting For typical weight and composition see page 273. NOTE: AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards. 030918 47 TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series QUALIFICATION TABLE – CATEGORY 1 TEST Endurance Humidity Temperature Stability Surge Voltage Condition TLJ series (Temperature range -55ºC to +125ºC) Characteristics Apply rated voltage (Ur) at 40ºC and / or category voltage (Uc) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Store at 65ºC and 90-95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Step 1 2 3 4 5 6 Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x rated voltage (Ur) at 40ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C ESR DCL ΔC/C ESR Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR no visible damage 2 x initial limit within ±10% of initial value 1.25 x initial limit no visible damage 2 x initial limit within ±10% of initial value 1.25 x initial limit +20ºC -55ºC +20ºC +85ºC 2 x IL* n/a 2 x IL* 20 x IL* 25 x IL* IL* n/a +0/-20% ±5% +20/-0% +25/-0% ±5% 1.25 xIL* 2.5 x IL* 1.25 x IL* 1.25 x IL* +125ºC +20ºC 1.25 x IL* 1.25 x IL* no visible damage 2 x initial limit within ±5% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit *Initial Limit QUALIFICATION TABLE – CATEGORY 2 TEST Endurance Humidity Temperature Stability Surge Voltage Condition TLJ series (Temperature range -55ºC to +125ºC) Characteristics Apply rated voltage (Ur) at 40ºC and / or category voltage (Uc) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Store at 65ºC and 90-95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Step 1 2 3 4 5 6 Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x rated voltage (Ur) at 40ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C ESR DCL ΔC/C ESR Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR no visible damage 2 x initial limit within +5/-30% of initial value 1.25 x initial limit no visible damage 2 x initial limit within ±10% of initial value 1.25 x initial limit +20ºC -55ºC +20ºC +85ºC 2 x IL* n/a 2 x IL* 20 x IL* 25 x IL* 2 x IL* n/a +5/-20% ±10% +20/-0% +25/-0% ±10% 1.25 xIL* 2.5 x IL* 1.25 x IL* 1.25 x IL* +125ºC +20ºC 1.25 x IL* 1.25 x IL* no visible damage 2 x initial limit within ±5% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit *Initial Limit 48 030918 TLJ Series Tantalum Solid Electrolytic Chip Capacitors High CV Consumer Series AVX SOLID ELECTROLYTIC CAPACITOR ROADMAP SERIES LINE UP: CONVENTIONAL SMD MnO2 030918 49
