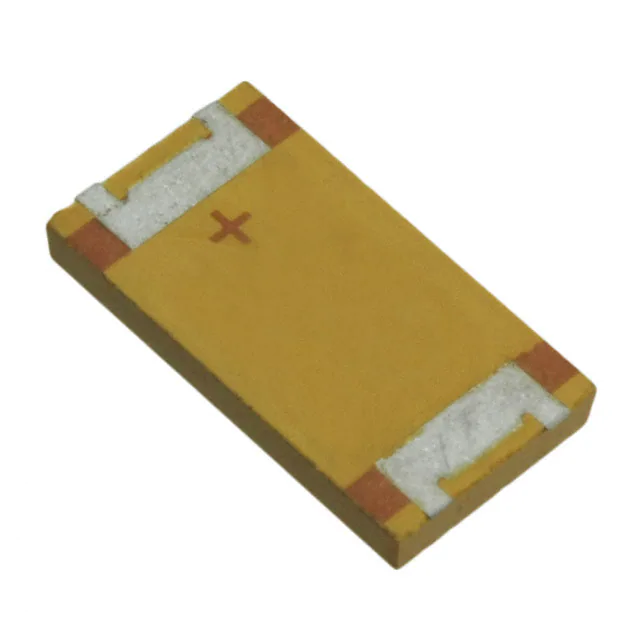

TLN6338M004R0055

TLN PulseCap™ Series TLN PulseCap™ Series – High Capacitance - Undertab High Capacitance Tantalum Solid Electrolytic Chip Capacitors Undertab Series FEATURES • • • • • Large Case Size for Maximum Capacitance 3x Reflow 260°C Compatible 100% Surge Current Tested Low Profile Solution Consumer Applications (e.g. PCMCIA/USB Wireless Express Cards etc.) • CV Range: 1000-3300μF / 4-10V • 2 Case Sizes Available LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS • Data Transfer Modems • SSD Backup Circuits CASE DIMENSIONS: Code EIA Code 4 2924 6 5831 millimeters (inches) L±0.20 (0.008) W+0.20 (0.008) -0.10 (0.004) H max. WP±0.10 (0.004) WN±0.10 (0.004) AP±0.10 (0.004) AN±0.10 (0.004) S Min. 7361-20 7.30 (0.287) 6.10 (0.240) 2.00 (0.079) 4.75 (0.187) 4.75 (0.187) 2.00 (0.079) 3.20 (0.126) 2.10 (0.083) 14878-20 14.80 (0.583) 7.80 (0.307) 2.00 (0.079) 5.50 (0.217) 5.50 (0.217) 2.45 (0.096) 2.45 (0.096) 9.90 (0.390) EIA Metric MARKING 4, 6 CASE Capacitance Value in mF 228 = 2.2mF Rated Voltage J = 6.3V 228 J Polarity Band (Anode+) Polarity Band (Anode+) W LOGO XXXXX ID Code L W H AP WP S AN WN HOW TO ORDER TLN 6 228 M 006 R 0055 Type Case Size See table above Capacitance Code pF code: 1st two digits represent significant figures, 3rd digit represents multiplier Tolerance M = ±20% Rated DC Voltage 004 = 4Vdc 006 = 6.3Vdc 010 = 10Vdc Packaging R = Pure Tin 7" Reel ESR in mΩ TECHNICAL SPECIFICATIONS Technical Data: Capacitance Range: Capacitance Tolerance: Leakage Current DCL: Rated Voltage (VR) Category Voltage (VC) Category Voltage (VC) Temperature Range: Reliability: 50 -55°C ≤ +40°C: at 85°C: at 125°C: All technical data relate to an ambient temperature of +25°C 1000 μF to 3300 μF ±20% 0.01CV 4 6.3 10 2 3.2 5 0.8 1.3 2 -55°C to +125°C with category voltage 0.2% per 1000 hours at 85°C, 0.5xVR with 0.1Ω/V series impedance with 60% confidence level The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 102020 – polymer, tantalum and niobium oxide capacitors – TLN PulseCap™ Series High Capacitance Tantalum Solid Electrolytic Chip Capacitors Undertab Series CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance Voltage Rating DC (VR) to 85°C μF Code 680 687 4V (G) 6.3V (J) 1000 108 1500 158 4(100) 2200 228 6(55) 3300 338 10V (A) 4(100)/6(55) 6(55) 6(55) Released ratings (ESR ratings in mOhms in parentheses) Note: Voltage ratings are minimum values. KYOCERA AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards. RATINGS & PART NUMBER REFERENCE Part Number Case Size Capacitance (μF) Rated Voltage (V) Rated Temperature (ºC) TLN6338M004#0055 6 3300 4 40 TLN4158M006#0100 TLN6228M006#0055 4 6 1500 2200 6.3 6.3 40 40 TLN4108M010#0100 TLN6108M010#0055 TLN6158M010#0055 4 6 6 1000 1000 1500 10 10 10 40 40 40 Category Voltage (V) Category Temperature (ºC) DCL Max. (μA) ESR Max. @ 100kHz (mΩ) 4 Volt @ 40°C 100kHz RMS Current (mA) 25ºC 85ºC 125ºC MSL 0.8 125 132 55 2045 1840 818 3 1.3 1.3 125 125 90 132 100 55 1285 2045 1156 1840 514 818 3 3 2 2 2 125 125 125 100 100 150 100 55 55 1285 2045 2045 1156 1840 1840 514 818 818 3 3 3 6.3 Volt @ 40°C 10 Volt @ 40°C Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25°C. Capacitance and DF are measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. ESR allowed to move up to 1.25 times catalogue limit post mounting DCL allowed to move up to 2.00 times catalogue limit post mounting For typical weight and composition see page 259. NOTE: KYOCERA AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards. The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 081821 – polymer, tantalum and niobium oxide capacitors – 51 TLN PulseCap™ Series High Capacitance Tantalum Solid Electrolytic Chip Capacitors Undertab Series QUALIFICATION TABLE TLN PulseCap™ series (Temperature range -55ºC to +125ºC) Condition Characteristics TEST Endurance Humidity Apply rated voltage (Ur) at 40ºC and / or category voltage (Uc) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Visual examination no visible damage DCL 2 x initial limit ΔC/C within +5/-30% of initial value ESR 1.25 x initial limit Store at 65ºC and 90-95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Visual examination no visible damage DCL 2 x initial limit ΔC/C within ±10% of initial value ESR 1.25 x initial limit Step 1 2 3 4 5 6 Temperature Stability Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x rated voltage (Ur) at 40ºCfor 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Surge Voltage Mechanical Shock Vibration MIL-STD-202, Method 213, Condition C MIL-STD-202, Method 204, Condition D DCL ΔC/C +20ºC -55ºC +20ºC +85ºC +125ºC +20ºC 2 x IL* n/a 2 x IL* 20 x IL* 25 x IL* 2 x IL* n/a +5/-20% ±10% +20/-0% +25/-0% ±10% ESR 1.25 x IL* 2.5 x IL* 1.25 x IL* 1.25 x IL* 1.25 x IL* 1.25xIL* Visual examination no visible damage DCL 2 x initial limit ΔC/C within ±5% of initial value ESR 1.25 x initial limit Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit ESR initial limit Visual examination no visible damage DCL initial limit ΔC/C within ±5% of initial value DF initial limit ESR initial limit *Initial Limit Voltage vs Temperature Rating rated range 120% recommended derating 100% 80% 100% 100% 80% 80% 60% 67% 50% 40% 33% 20% 0% -55°C 52 20% 0°C 40°C 60°C 85°C 105°C 125°C The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 040120 – polymer, tantalum and niobium oxide capacitors – TLN PulseCap™ Series High Capacitance Tantalum Solid Electrolytic Chip Capacitors Undertab Series SOLID ELECTROLYTIC CAPACITOR ROADMAP SERIES LINE UP : CONVENTIONAL SMD MnO2 TMJ High Rel. & Special High Temp THH ultra low DCL THJ 200°C THJ F97-HT3 175°C auto 135°C auto TRM TRJ Industrial & Automotive 230°C COTS+ Hermetic professional multianode professional TAJ F91-AJ6 auto TPS auto *T/*U F93-AJ6 auto *T/*U TPS F97 professional auto F98-AJ6 auto TPM multianode Standard TAJ Standard Low Profile High CV TAJ TLN undertab F91 TAC Low Profile microchip TLJ microchip TPC microchip F93 Low ESR F98-AS1 TLC undertab, fused F92 F98 undertab The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 030321 – polymer, tantalum and niobium oxide capacitors – 53
