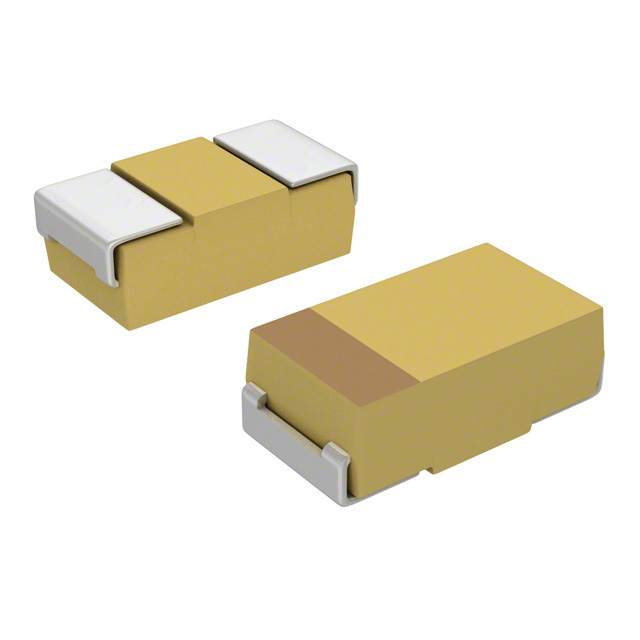

TLN Series – Undertab TLN Series Tantalum Solid Electrolytic Chip Capacitors - Undertab Series FEATURES • Undertab Terminations Layout: - High Volumetric Efficiency - High PCB Assembly Density - High Capacitance in Smaller Dimensions • 3x Reflow 260°C Compatible • 100% Surge Current Tested • Consumer Applications (e.g. PCMCIA/USB Wireless Express Cards, Mobiles, MP3 etc.) • 3 Case Sizes Available • CV Range: 47-220μF / 4-10V LEAD-FREE COMPATIBLE COMPONENT APPLICATIONS • Mobile Phones • Tablets • MP3/4 Players CASE DIMENSIONS: millimeters (inches) Code EIA Code EIA Metric L±0.20 (0.008) W+0.20 (0.008) -0.10 (0.004) H max. WP±0.10 (0.004) WN±0.10 (0.004) AP±0.10 (0.004) AN±0.10 (0.004) S Min. M 0805 2012-09 2.05 (0.081) 1.30 (0.051) 0.90 (0.035) 1.00 (0.039) 1.00 (0.039) 0.85 (0.033) 0.85 (0.033) 0.40 (0.016) N 0805 2012-10 2.05 (0.081) 1.30 (0.051) 1.00 (0.039) 1.00 (0.039) 1.00 (0.039) 0.85 (0.033) 0.85 (0.033) 0.40 (0.016) T 1210 3528-12 3.50 (0.138) 2.80 (0.110) 1.20 (0.047) 2.50 (0.098) 2.10 (0.083) 1.15 (0.045) 1.35 (0.053) 1.00 (0.039) MARKING M, N CASE T, CASE Capacitance Value in pF 107 = 100µF 10 7 J Polarity Band (Anode+) 106 LOGO XXXXX ID Code Polarity Band (Anode+) W Capacitance Value in pF 106 = 10µF Rated Voltage J = 6.3V J Polarity Band (Anode+) L W H LOGO WP AP S AN WN Rated Voltage Code J = 6.3V HOW TO ORDER TLN N 107 M Type Case Size See table above Capacitance Code pF code: 1st two digits represent significant figures, 3rd digit represents multiplier (number of zeros to follow) Tolerance M = ±20% 004 R Rated DC Voltage Packaging 004 = 4Vdc R = Pure Tin 7" Reel 006 = 6.3Vdc S = Pure Tin 13" Reel 010 = 10Vdc 5200 ESR in mΩ TECHNICAL SPECIFICATIONS Technical Data: Capacitance Range: Capacitance Tolerance: Rated Voltage (VR) Category Voltage (VC) Category Voltage (VC) Temperature Range: Reliability: 46 -55°C ≤ +40°C: at 85°C: at 125°C: All technical data relate to an ambient temperature of +25°C 47 μF to 220 μF ±20% 4 6.3 10 2 3.2 5 0.8 1.3 2 -55°C to +125°C with category voltage 0.2% per 1000 hours at 85°C, 0.5xVR with 0.1Ω/V series impedance with 60% confidence level The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 031722 – polymer, tantalum and niobium oxide capacitors – TLN Series Tantalum Solid Electrolytic Chip Capacitors - Undertab Series CAPACITANCE AND RATED VOLTAGE RANGE (LETTER DENOTES CASE SIZE) Capacitance Rated Voltage DC to 40°C / 0.5DC to 85°C/ 0.2DC to 125°C μF Code 47 476 100 107 150 157 220 227 6.3V (J) 4V (G) 10V (A) M(6000)/N(6000) N(5200) T(1500) T(1500) T(1500) T(1300) Released ratings, (ESR ratings in mOhms in parentheses) Note: Voltage ratings are minimum values. KYOCERA AVX reserves the right to supply higher voltage ratings in the same case size, to the same reliability standards. RATINGS & PART NUMBER REFERENCE Part Number Rated Rated Category Category Maximum Case Capacitance Voltage Surge Temperature Voltage Temperature Current Size (μF) (V) (ºC) (V) (ºC) (A) DCL Max. (μA) 100kHz RMS Current (mA) ESR Max. @ 100kHz 25ºC 85ºC 125ºC (mΩ) MSL 4 Volt @ 40°C TLNN107M004#5200 TLNT227M004#1500 N T 100 220 4 4 40 40 0.8 0.8 TLNT227M006#1500 T 220 6.3 40 1.3 125 125 6.3 Volt @ 40°C 125 0.4 1.0 20 17.6 5200 1500 88 216 79 194 35 86 3 3 1.6 26.4 1500 216 194 86 3 0.8 0.8 2.6 2.9 9.4 9.4 30 44 6000 6000 1500 1300 82 82 216 232 73 73 194 209 33 33 86 93 3 3 3 3 10 Volt @ 40°C TLNM476M010#6000 TLNN476M010#6000 TLNT157M010#1500 TLNT227M010#1300 M N T T 47 47 150 220 10 10 10 10 40 40 40 40 2 2 2 2 125 125 125 125 Moisture Sensitivity Level (MSL) is defined according to J-STD-020. All technical data relates to an ambient temperature of +25°C. Capacitance is measured at 120Hz, 0.5V RMS with a maximum DC bias of 2.2 volts. DCL is measured at rated voltage after 5 minutes. ESR allowed to move up to 1.25 times catalogue limit post mounting DCL allowed to move up to 2.00 times catalogue limit post mounting For typical weight and composition see page 259. NOTE: KYOCERA AVX reserves the right to supply higher voltage ratings or tighter tolerance part in the same case size, to the same reliability standards. The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 031722 – polymer, tantalum and niobium oxide capacitors – 47 TLN Series Tantalum Solid Electrolytic Chip Capacitors - Undertab Series QUALIFICATION TABLE TLN series (Temperature range -55ºC to +125ºC) TEST Condition Characteristics Endurance Apply rated voltage (Ur) at 40ºC and / or category voltage (Uc) at 85ºC for 2000 hours through a circuit impedance of ≤0.1Ω/V. Stabilize at room temperature for 1-2 hours before measuring. Humidity Store at 65ºC and 90-95% relative humidity for 500 hours, with no applied voltage. Stabilize at room temperature and humidity for 1-2 hours before measuring. Step 1 2 3 4 5 6 Temperature Stability Temperature°C +20 -55 +20 +85 +125 +20 Duration(min) 15 15 15 15 15 15 Apply 1.3x rated voltage (Ur) at 40ºC for 1000 cycles of duration 6 min (30 sec charge, 5 min 30 sec discharge) through a charge / discharge resistance of 1000Ω Surge Voltage Mechanical Shock MIL-STD-202, Method 213, Condition C Vibration MIL-STD-202, Method 204, Condition D Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C ESR no visible damage 2 x initial limit within +5/-30% of initial value 1.25 x initial limit no visible damage 2 x initial limit within ±10% of initial value 1.25 x initial limit +20ºC -55ºC +20ºC +85ºC +125ºC +20ºC DCL 2 x IL* n/a 2 x IL* 20 x IL* 25 x IL* 2 x IL* ΔC/C n/a +5/-20% ±10% +20/-0% +25/-0% ±10% ESR 1.25 x IL* 2.5 x IL* 1.25 x IL* 1.25 x IL* 1.25 x IL* 1.25xIL* Visual examination DCL ΔC/C ESR Visual examination DCL ΔC/C DF ESR Visual examination DCL ΔC/C DF ESR no visible damage 2 x initial limit within ±5% of initial value 1.25 x initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit no visible damage initial limit within ±5% of initial value initial limit initial limit *Initial Limit Voltage vs Temperature Rating rated range 120% recommended derating 100% 80% 100% 100% 80% 80% 60% 67% 50% 40% 33% 20% 0% -55°C 48 20% 0°C 40°C 60°C 85°C 105°C 125°C The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 040120 – polymer, tantalum and niobium oxide capacitors – TLN Series Tantalum Solid Electrolytic Chip Capacitors - Undertab Series SOLID ELECTROLYTIC CAPACITOR ROADMAP SERIES LINE UP : CONVENTIONAL SMD MnO2 TMJ High Rel. & Special High Temp THH ultra low DCL THJ 200°C THJ F97-HT3 175°C auto 135°C auto TRM TRJ Industrial & Automotive 230°C COTS+ Hermetic professional multianode professional TAJ F91-AJ6 auto TPS auto *T/*U F93-AJ6 auto *T/*U TPS F97 professional auto F98-AJ6 auto TPM multianode Standard TAJ Standard Low Profile High CV TAJ TLN undertab F91 TAC Low Profile microchip TLJ microchip TPC microchip F93 Low ESR F98-AS1 TLC undertab, fused F92 F98 undertab The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or available online at www.kyocera-avx.com/disclaimer/ by reference and should be reviewed in full before placing any order. 030321 – polymer, tantalum and niobium oxide capacitors – 49
