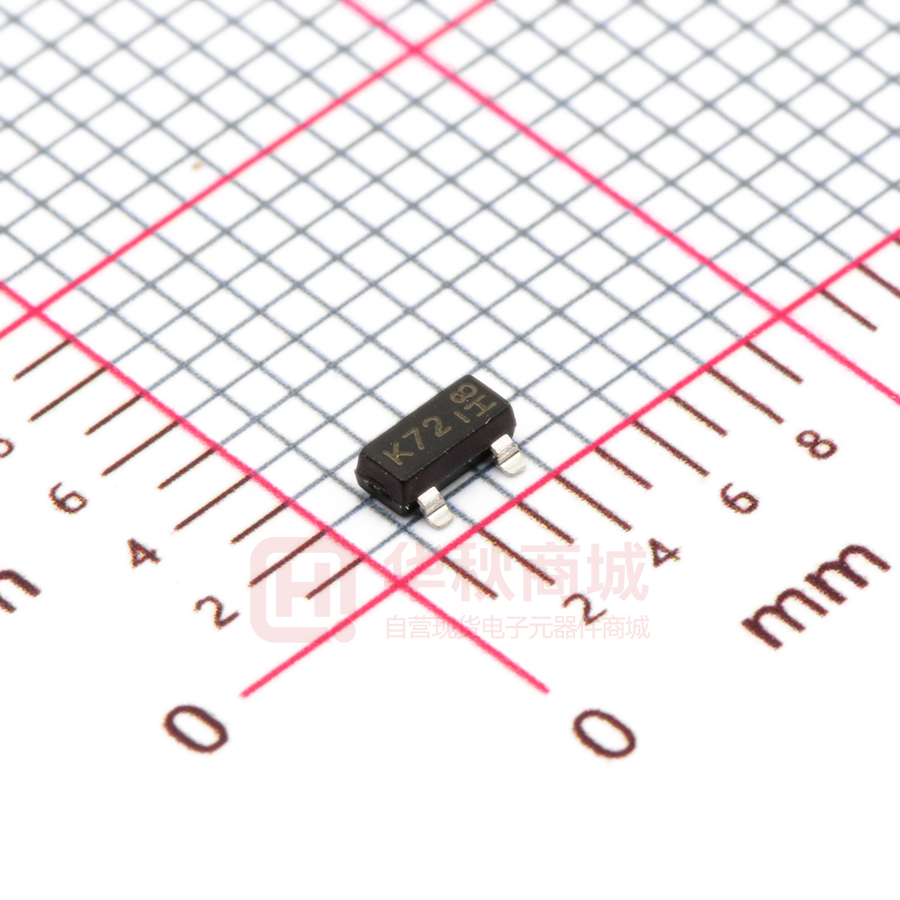

2N7002-7-F

2N7002 N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features V(BR)DSS RDS(ON) max ID max TA = +25°C 60V 7.5Ω @ VGS = 5V 210mA         Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Small Surface Mount Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Notes 3 & 4) Qualified to AEC-Q101 standards for High Reliability Mechanical Data ideal for high efficiency power management applications.   Applications  Motor Control  Power Management Functions Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Weight: 0.008 grams (approximate)     Drain SOT23 D Gate Top View S G Source Equivalent Circuit Top View Ordering Information (Note 5) Part Number 2N7002-7-F 2N7002-13-F 2N7002Q-7-F Notes: Compliance Standard Standard Automotive Case SOT23 SOT23 SOT23 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 3,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
