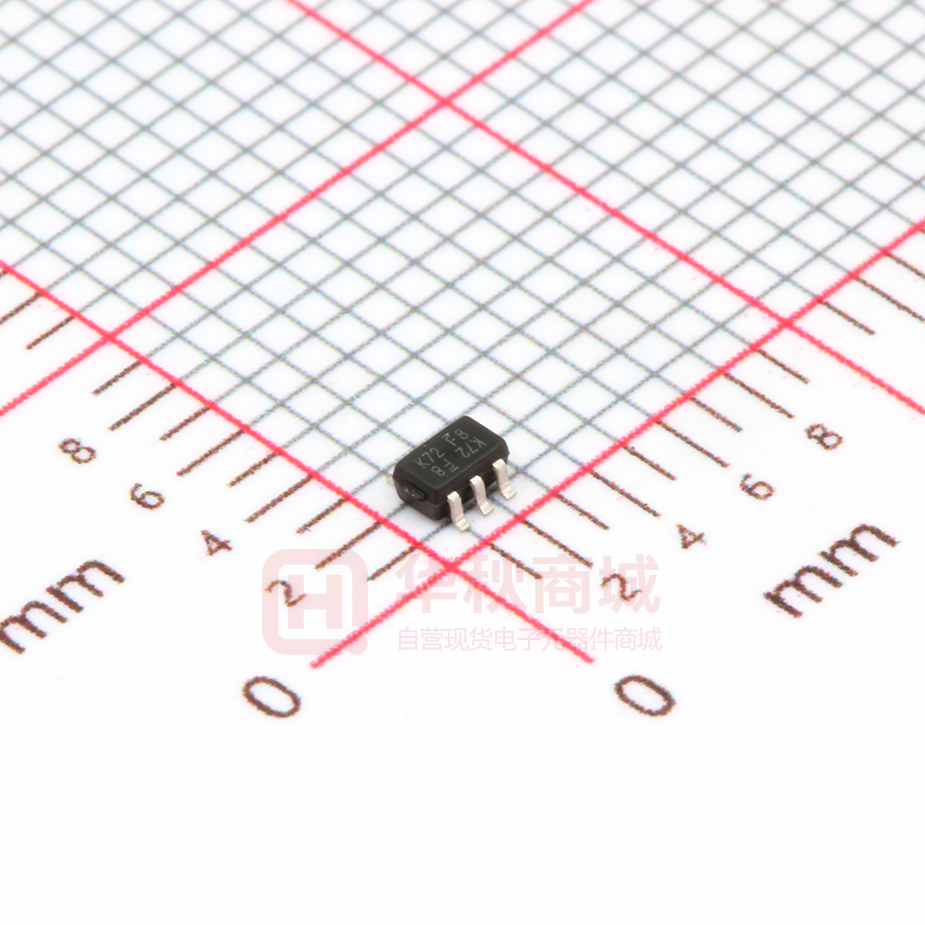

2N7002DW-7-F

2N7002DW DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features BVDSS RDS(ON) Max ID Max TA = +25°C 60V 7.5Ω @ VGS = 5V 0.23A            Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications   Dual N-Channel MOSFET Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Notes 3 & 4) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 5) Mechanical Data Motor Control Power Management Functions       SOT363 Top View Case: SOT363 Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Terminal Connections: See Diagram Weight: 0.006 grams (Approximate) D2 G1 S1 S2 G2 D1 Top View Internal Schematic Ordering Information (Note 6) Part Number 2N7002DW-7-F 2N7002DWQ-7-F 2N7002DW-13-F 2N7002DWQ-13-F Notes: Compliance Standard Automotive Standard Automotive Case SOT363 SOT363 SOT363 SOT363 Packaging 3,000/Tape & Reel 3,000/Tape & Reel 10,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
