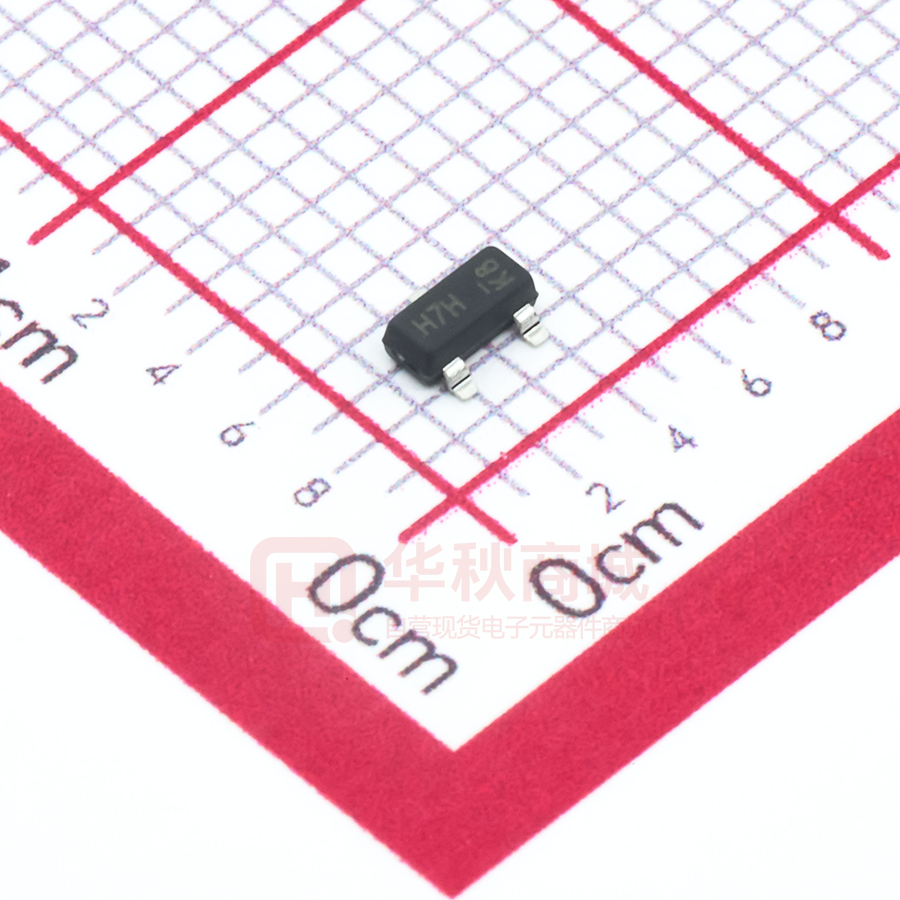

2N7002H-7

2N7002H N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS Features and Benefits RDS(ON) max ID max TA = +25°C 7.5Ω @ VGS = 5V 60V 210mA  N-Channel MOSFET  Low On-Resistance  Low Gate Threshold Voltage  Low Input Capacitance  Fast Switching Speed  Small Surface Mount Package    Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Description and Applications Mechanical Data This MOSFET is designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it  Case: SOT23  Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208  Terminal Connections: See Diagram  Weight: 0.008 grams (Approximate) ideal for high-efficiency power management applications.  Motor Control  Power Management Functions D SOT23 D G S Top View S G Equivalent Circuit Top View Ordering Information (Note 4) Notes: Part Number Case Packaging 2N7002H-7 SOT23 3,000/Tape & Reel 2N7002H-13 SOT23 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
