2N7002KQ-7

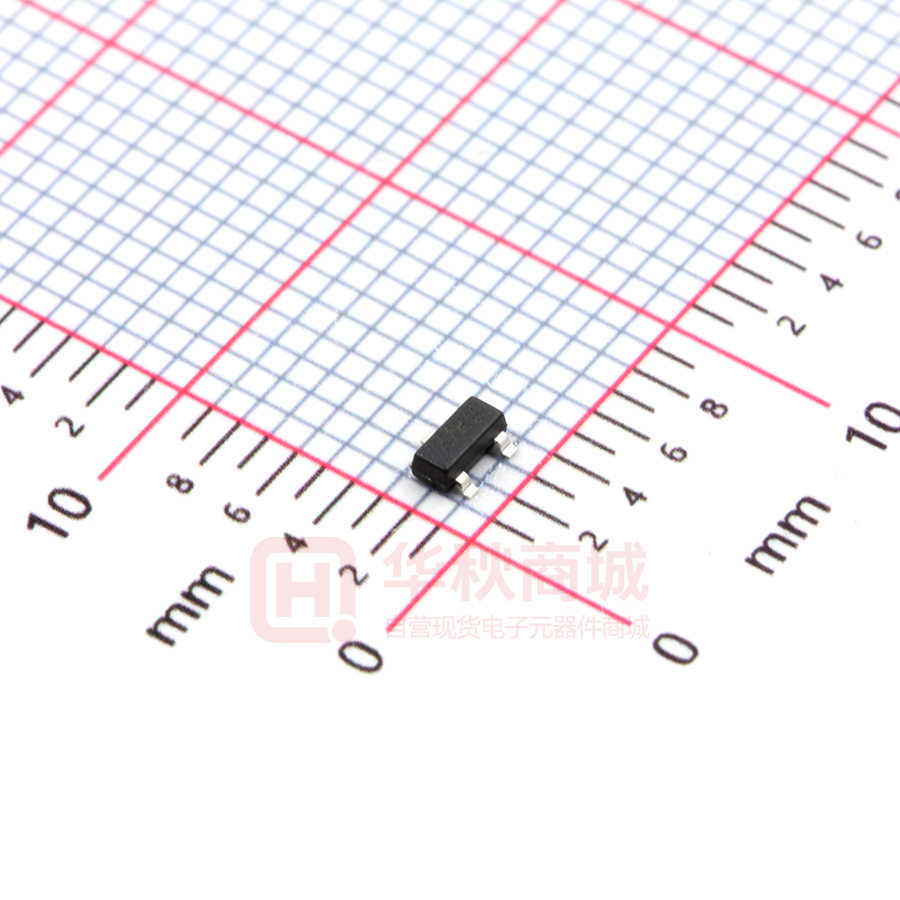

2N7002K N-CHANNEL ENHANCEMENT MODE MOSFET NEW PRODUCT Product Summary Features and Benefits BVDSS RDS(ON) Max 60V 2Ω @ VGS = 10V 3Ω @ VGS = 5V ID Max TA = +25°C 380mA 310mA Description This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Motor Control Power Management Functions Backlighting Low On-Resistance Low Input Capacitance Fast Switching Speed Low Input/Output Leakage ESD Protected Up To 2kV Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Mechanical Data   Applications                Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish  Matte Tin Annealed over Alloy 42 Leadframe. Solderable per MIL-STD-202, Method 208 e3 Weight: 0.008 grams (Approximate) Drain SOT23 D Gate Top View S G Gate Protection Diode ESD protected up to 2kV Source Top View Equivalent Circuit Ordering Information (Note 5) Part Number 2N7002K-7 2N7002KQ-7 2N7002K-13 2N7002KQ-13 Notes: Compliance Standard Automotive Standard Automotive Case SOT23 SOT23 SOT23 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel 10000/Tape & Reel 10000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
