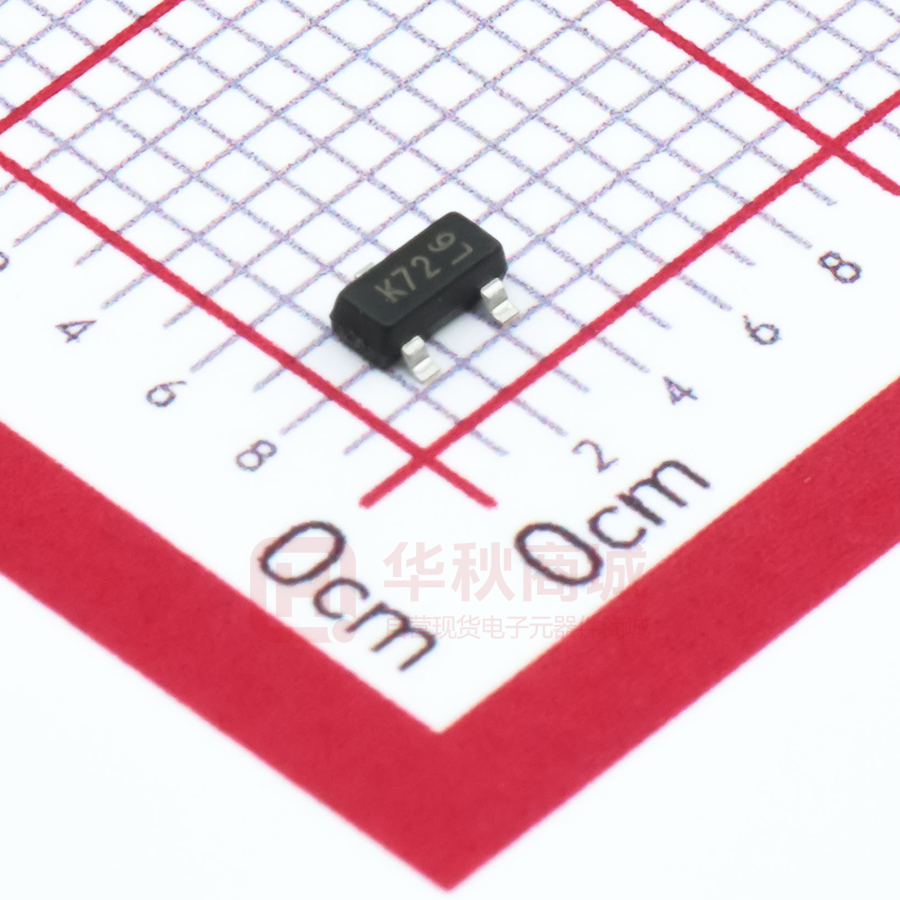

2N7002Q-7-F

2N7002 N-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Product Summary BVDSS 60V Features and Benefits RDS(ON) Max ID Max TA = +25°C 5Ω @ VGS = 10V 210mA 7.5Ω @ VGS = 5V 170mA • • • • • • • • • • Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Small Surface Mount Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Notes 3) For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/. This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (2N7002Q) Description and Applications Mechanical Data This MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it • • ideal for high-efficiency power management applications. • • • • Motor Control Power Management Functions • • Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish  Matte Tin Plated Leads. Solderable per MILSTD-202, Method 208 e3 Terminal Connections: See Diagram Weight: 0.009 grams (Approximate) Drain SOT23 (Standard) D Gate Source Top View Equivalent Circuit S G Top View Ordering Information (Note 4) Part Number 2N7002-7-F 2N7002-13-F Notes: 2N7002 Case SOT23 (Standard) SOT23 (Standard) Packaging 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
