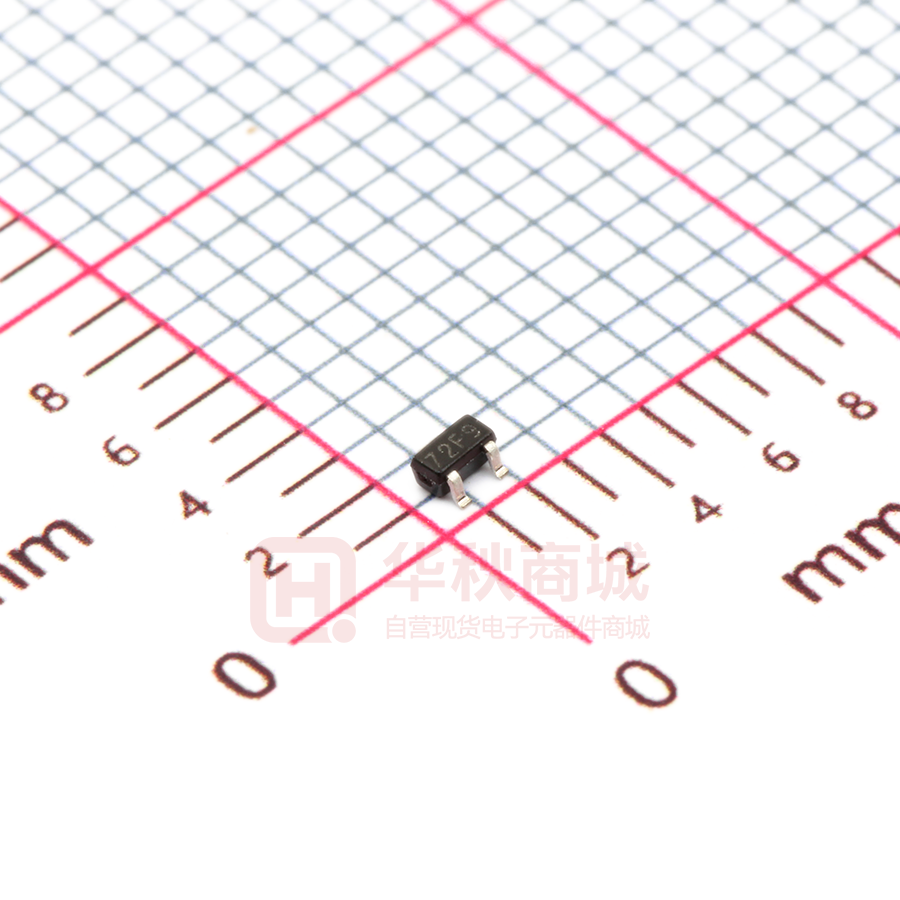

2N7002T-7-F

2N7002T N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary Features BVDSS RDS(ON) ID TA = +25°C 60V 7.5Ω @ VGS = 5V 115mA           Description and Applications This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.     Low On-Resistance Low Gate Threshold Voltage Low Input Capacitance Fast Switching Speed Low Input/Output Leakage Ultra-Small Surface Mount Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4) Mechanical Data     DC-DC Converters Power Management Functions Battery Operated Systems and Solid-State Relays Drivers: Relays, Solenoids, Lamps, Hammers, Displays, Memories, Transistors, etc.   Case: SOT523 Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 e3 Terminal Connections: See Diagram Weight: 0.002 grams (Approximate) D ra in SOT523 D G ate G S S o urce Top View Top View Equivalent Circuit Ordering Information (Notes 5 and 6) Part Number 2N7002T-7-F 2N7002T-13-F 2N7002TQ-7-F 2N7002TQ-13-F Notes: Qualification Commercial Commercial Automotive Automotive Case SOT523 SOT523 SOT523 SOT523 Packaging 3,000/Tape & Reel 10,000/Tape & Reel 3,000/Tape & Reel 10,000/Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
