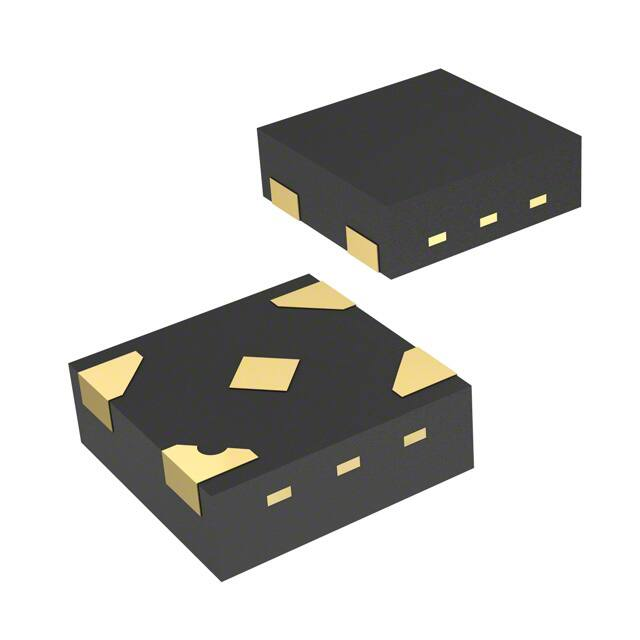

74LVC1G34FS3-7

74LVC1G34 SINGLE BUFFER GATE Description Pin Assignments The 74LVC1G34 is a single buffer gate with a standard push-pull output. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF ( Top View ) ( Top View ) NC 1 5 Vcc NC 1 5 Vcc A 2 A 2 circuitry disables the output preventing damaging current backflow when the device is powered down. SOT25 / SOT353 Y=A SOT553 4 Y GND 3 The gate performs the positive Boolean function: 4 Y GND 3 ( Top View ) NC 1 8 Vcc A 2 5 NC GND 3 4 Y X2-DFN1410-6 ( Bottom View ) GND 3 A2 NC 1 4Y 5 NC (Top View ) NC A GND 6 2 5 Vcc NC 3 4 Y X1-DFN1010-6 (Type B) (Top View ) Vcc NC 3 4 Y X2-DFN1010-6 NC A GND 1 6 2 5 (Top View) 5 Vcc NC 1 3 GND 6 Vcc X2-DFN1409-6 Chip Scale Alternative 1 A 2 4 Y X2-DFN0808-4 Packages not to scale Features Applications • • • • Wide Supply Voltage Range from 1.65V to 5.5V ±24mA Output Drive at 3.3V CMOS Low Power Consumption IOFF Supports Partial-Power-Down Mode Operation • • Inputs Accept Up to 5.5V ESD Protection Tested per JESD 22  Exceeds 2000-V Human Body Model (A114)  Exceeds 1000-V Charged Device Model (C101) Latch-Up Exceeds 100mA per JESD 78, Class I Range of Package Options Direct Interface with TTL Levels Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ An Automotive-Compliant Part is Available Under Separate Datasheet (74LVC1G34Q) • • • • • • • Notes: • • • • Voltage Level Shifting General Purpose Logic Power Down Signal Isolation Wide Array of Products such as:  PCs, Networking, Notebooks, Netbooks, PDAs  Tablet Computers, E-Readers  Computer Peripherals, Hard Drives, CD/DVD ROMs  TVs, DVDs, DVRs, Set-Top Boxes  Cell Phones, Personal Navigation / GPS  MP3 Players, Cameras, Video Recorders 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
