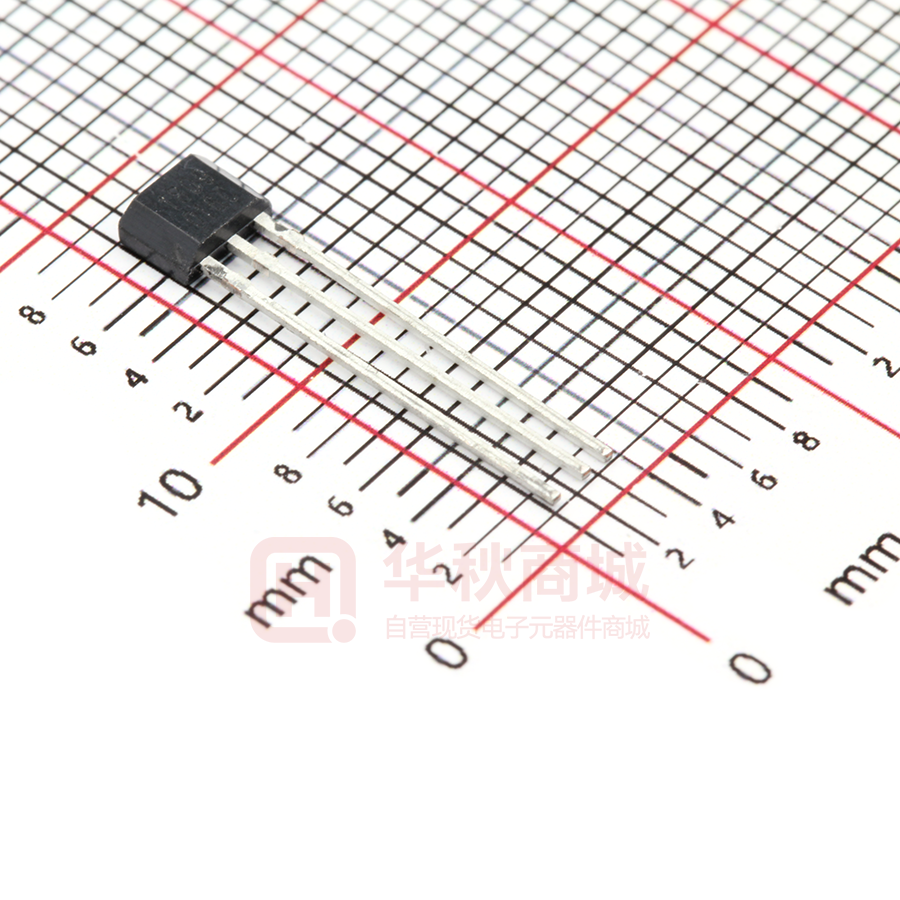

AH1809-P-B

AH1809 LOW SENSITIVITY MICROPOWER OMNIPLOAR HALL-EFFECT SWITCH Description Pin Assignments The AH1809 is a low sensitivity micropower Omnipolar Hall Effect switch IC. It is designed for battery powered consumer products, home appliances, and industrial equipment such smart e-meters. Based on two Hall Effect plates and a chopper stabilized architecture the AH1809 provides a reliable solution over the whole operating range. To support battery and low power applications the design has been optimized to operate over the supply range of 2.5V to 5.5V and consumes only 24µW with a supply of 3V. TOP View) GND 3 OUTPUT 1 VDD 2 SC59 The single open drain output can be switched on with either a North or South pole of sufficient strength. When the magnetic flux density perpendicular to the package (B) is larger than operate point (Bop), the output is switched on (pulled low). The output is turned off when B becomes lower than the release point (Brp). The output will remain off when there is no magnetic field. (TOP View) The AH1809 is available in SC59, SOT553 and SIP-3L. SOT553 Features • • • • • • • • • • • • Omnipolar (North or South pole) Operation Low Sensitivity Single Open Drain Output Micropower Operation 2.5V to 5.5V Operating Range Chopper Stabilized Design Provides
Superior Temperature Stability
Minimal Switch Point Drift
Enhanced Immunity to Stress Good RF Noise Immunity -40°C to +125°C Operating Temperature High ESD Small Low Profile SOT553 and Industry Standard SC59 and SIP-3L Packages Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: (TOP View) SIP-3L Applications • • • • • • Smart E-Meters Tamper Protection Switch Door, Lids and Tray Position Switch Proximity and Position Switches Level Detects On/Off Switch Digital Contact-Less Switch in Industrial and Consumer Products 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
