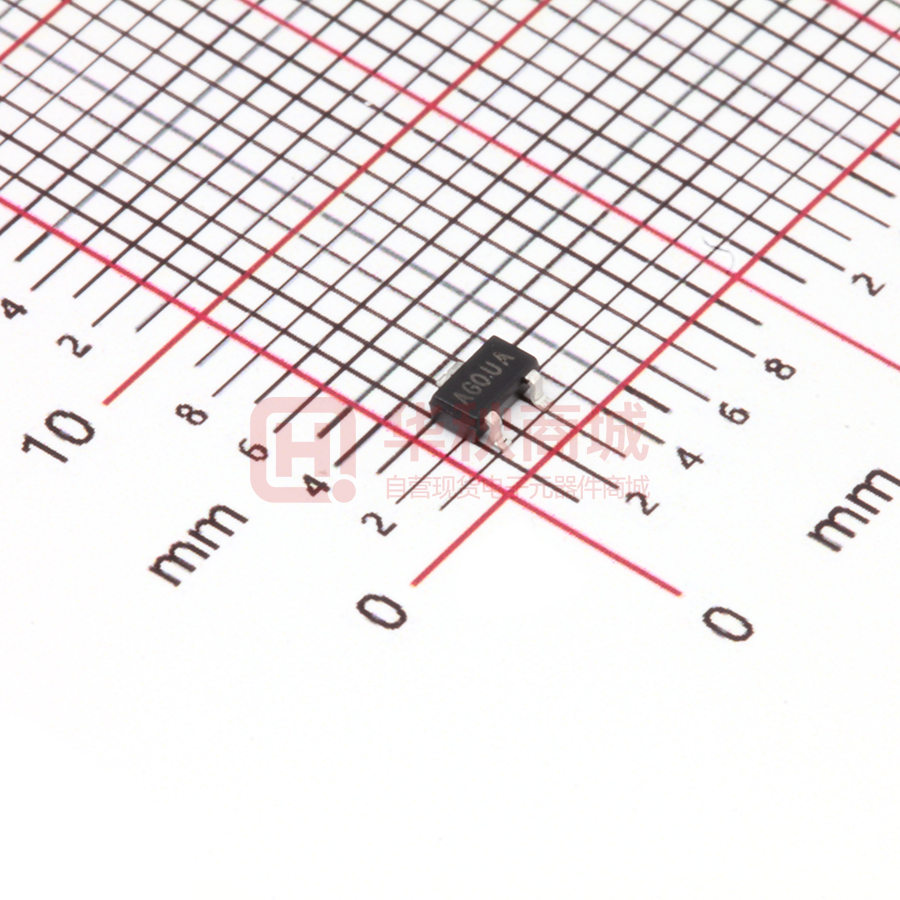

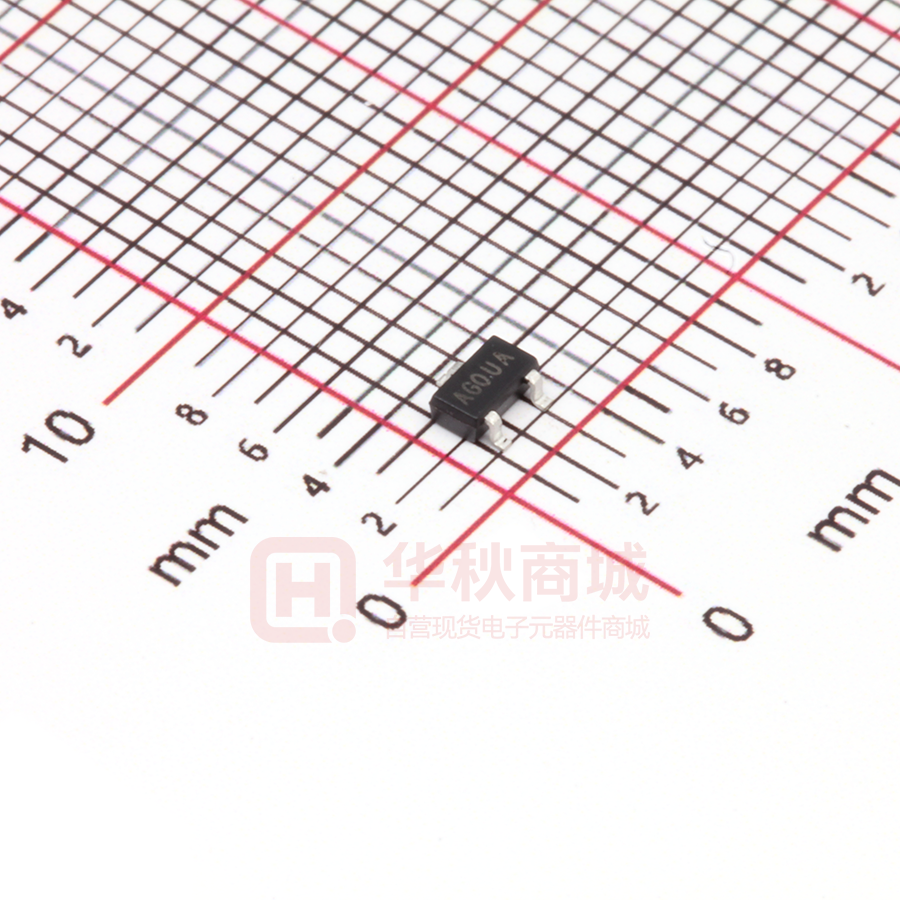

AH1815-W-7

AH1815 LOW SENSITIVITY MICROPOWER OMNIPOLAR HALL-EFFECT SWITCH Description Pin Assignments The AH1815 is a low-sensitivity, micro-power Omnipolar Hall effect switch IC, designed for portable and battery powered consumer equipment for home appliance and industrial applications such as smart-meter magnetic-tamper detection. Based on two sensitive Hall effect plates and a chopper-stabilized architecture, the AH1815 provides a reliable solution over the whole operating range. To support portable and battery powered equipment, the design has been optimized to operate over the supply range of 2.5V to 5.5V and consumes only 24µW with a supply of 3V. (Top View) GND The single open drain output can switch on with either a north or south pole of sufficient strength. When the magnetic flux density (B) perpendicular to the package is larger than operating point (Bop) the output is switched on (pulled low). The output is turned off when B becomes lower than the releasing point (Brp). The output will remain off when there is no magnetic field.       Omnipolar (North or South pole) Operation Low Sensitivity Single Open Drain Output Micropower Operation 2.5V to 5.5V Operating Range Chopper Stabilized Design Provides Superior Temperature Stability Minimal Switch Point Drift Enhanced Immunity to Stress Good RF Noise Immunity -40°C to +125°C Operating Temperature ESD (HBM) > 6KV Small Low Profile SOT553 and Industry Standard SC59 and SIP-3 Packages Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: OUTPUT 1 VDD 2 SC59 (Top View) Features       3 NC 1 GND 2 NC 3 5 OUTPUT 4 VDD SOT553 (Front View) 3. OUTPUT 2. GND 1. VDD SIP-3 Applications  Doors, Lids, Covers and Tray Position Detect Switches  Display Switch for Portable PCs and Tablets  On/Off Switch for PDAs and Digital Cameras    Liquid Level Detection for Coffee Machines Smart Meters Position, Proximity and Level Detection Contactless Switch in Battery Powered Consumer, Home Appliances and Industrial Applications 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
