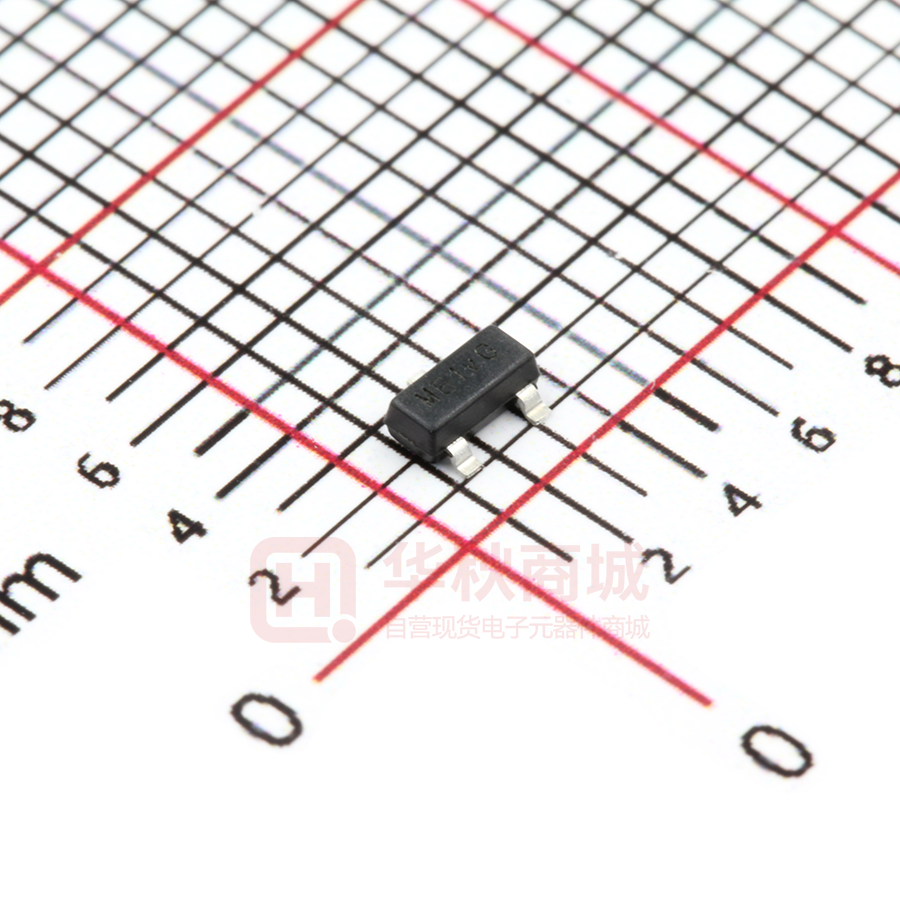

AH3362Q-SA-7

AH3362Q HIGH VOLTAGE HIGH SENSITIVITY AUTOMOTIVE HALL EFFECT UNIPOLAR SWITCH NEW PRODUCT Description Pin Assignments The AH3362Q is an AECQ100 qualified high voltage high sensitivity Hall Effect Unipolar switch IC designed for position and proximity sensing in automotive applications such as in seat and seatbelt buckleL, steering lock/immobilisation, gear stick, transmission actuator and gear position, HVAC compression, wiper, door/trunk closure, etc. To support wide range of demanding applications, the design has been optimized to operate over the supply range of 3.0V to 28V. With chopper stabilized architecture and an internal bandgap regulator to provide temperature compensated supply for internal circuits, the AH3362Q provides a reliable solution over the whole operating range. For robustness and protection, the device has a reverse blocking diode with a Zener clamp on the supply. The output has an over current limit and a Zener clamp. (Top View) 3 OUTPUT GND 2 1 VDD SC59 and SOT23 The single open drain output can be switched on with South pole of sufficient strength. When the magnetic flux density (B) perpendicular to the package is larger than the operate point (BOP) the output is switched on (pulled low) and is held on until magnetic flux density B is lower than the release point (BRP). The output remains switched off for North pole fields to or no magnetic fields. (Top View) The magnetic operating and release polarity is opposite for SOT23 and SC59 packages. The SOT23 and SIP-3 (Ammo Pack), SIP-3 (Bulk Pack) packages require south pole to the part marking side to operate while SC59 requires south pole to the non-part marking side. 3. OUTPUT 2. GND 1. VDD SIP-3 (Bulk Pack) Features • • • • • • • • • • • • • • Unipolar Operation High Sensitivity: BOP and BRP of 30G and 20G Typical Single Open Drain Output with Over Current Limit 3.0V to 28V Operating Voltage Range Chopper Stabilized Design Provides o Superior Temperature Stability o Minimal Switch Point Drift o Enhanced Immunity to Stress Good RF Noise Immunity Reverse Blocking Diode Zener Clamp on Supply and Output Pins -40C to +150C Operating Temperature ESD: HBM > 8kV, CDM: > 2kV AECQ100 Grade 0 Qualified Industry Standard SC59, SOT23 and SIP-3 (Ammo Pack), SIP-3 (Bulk Pack) Packages Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: Applications • • • • • • • • • • • • • Position and Proximity Sensing in Automotive Applications Seat Position Seatbelt Buckle Steering Lock / Immobilisation Gear Stick HVAC Compression Transmission Actuator Transmission Gear Position Wipers Sunroof and Windows Door/Trunk Closure Door Locks Contact-Less Switches 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
