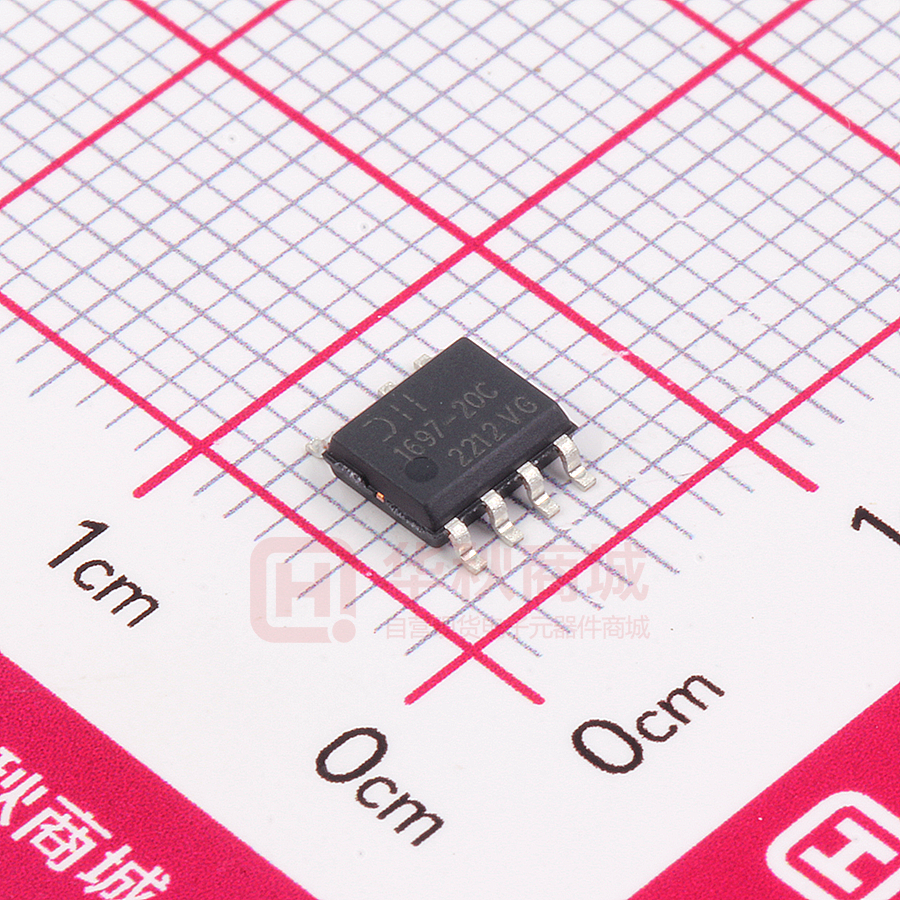

AL1697-20CS7-13

AL1697 HIGH PF, OFFLINE DIMMABLE LED DRIVER WITH INTERNAL HIGH-VOLTAGE MOSFET Description Pin Assignments The AL1697 is a high performance, high power factor, high efficiency and high precision buck-boost LED driver for mains dimmable LED lamp applications. The AL1697 topology provides an accurate output current over wide line and load regulation. The wide switching frequency operates at boundary conduction mode (BCM) to ease EMI/EMC design, and testing to meet the latest regulatory standards. (Top View) The AL1697 with built in MOSFET solution reduces the bill of material (BOM) cost by eliminating the need of auxiliary winding and an external high voltage MOSFET. The AL1697 has extensive protection features to enhance system safety and reliability. The AL1697 starts reducing output current when the driver’s temperature is higher than the built-in thermal foldback protection trigger point. The AL1697 applies to a wide range of dimmers including leading edge and trailing edge dimmer. Some can achieve deep dimming down to 1%. The AL1697 dimming curve is compliant with the NEMA SSL6 standard. 7 D 3 6 CS 4 5 FB VCC 1 RT 2 COMP GND SO-7 Applications   Mains Dimmable LED Lamps Offline LED Power Supply Driver The AL1697 is available in SO-7 package, which provides an extra pin spacing between the high voltage MOSFET’s drain and low voltage pins to increase electricity isolation. Features            Three Internal High-Voltage MOSFET Options:  RDSON) 2.8Ω(3A /400V), 4Ω(2A/600V) and 1.8Ω(4A /670V) for Super-Junction Tight Current Sense Tolerance : ± 3% Low Startup Current: 130µA Low Operation Current: 170µA (Switching Frequency at 4kHz) Single Winding Inductor Wide Range of Dimmer Compatibility NEMA SSL6 Dimming Curve Compliant Internal Protections  Under Voltage Lockout (UVLO)  Leading-Edge Blanking (LEB)  Cycle-by-cycle Over Current Protection (OCP)  Output Open/Short Protection (OVP/OSP)  Thermal Foldback Protection (TFP)  Over-Temperature Protection (OTP) SO-7 Package Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
