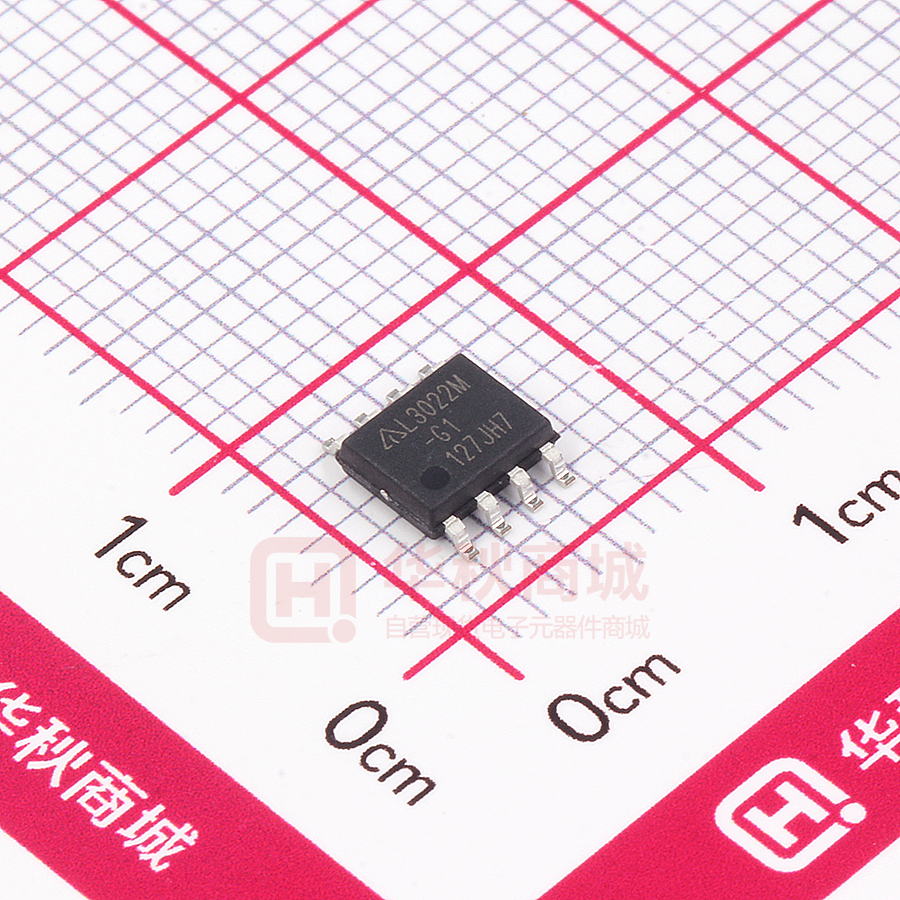

AL3022MTR-G1

A Product Line of Diodes Incorporated AL3022 3043 PWM BOOST CONTROLLER Description Pin Assignments (Top View) VIN 1 8 EN The AL3022 offers complete system protection with integrated Under Voltage Lockout, Over Voltage Protection, Over Current Protection, Output Voltage (VOUT) Short to GND Protection and Over OUT 2 7 OVP Temperature Protection circuitry. GND 3 6 COMP CS 4 5 FB To satisfy the limited PCB mounting space requirements, this IC is available in SO-8 package to save space. Features              SO-8 Voltage Mode PWM Controller Low 0.2V Reference Voltage Fixed 140KHz Frequency External PWM Dimming and Analog Dimming Low Shutdown Current (0.1µA) External Compensation Built-in UVLO Function Built-in OVP Built-in OTP Built-in OCP Built-in VOUT Short to GND Protection Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: Applications    LED TV LED Monitor LED Display Module 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
