AL3353
HIGH PERFORMANCE BOOST LED CONTROLLER
Description
Pin Assignments
NEW PRODUCT
The AL3353 is a highly-integrated and cost-effective Light Emitting
Diode (LED) controller optimized for LCD monitor and LCD TV
backlighting application. It provides a high-performance LED backlight
solution with low-BOM cost.
(Top View)
The AL3353 contains a PWM boost driver, which uses current mode
control and fixed frequency operation to regulate the LED current.
The LED current is sensed through an external current sense resistor.
The voltage across the sensing resistor is compared with reference
level of 400mV; the error is amplified to control the pulse width of the
power switch thus to regulate the current flowing the LED.
VIN
1
8
PWM
GATE
2
7
OVP
GND
3
6
COMP
CS
4
5
FB
The AL3353 offers PWM-to-analog dimming mode for a wide range of
dimming control.
SO-8 (Type TH2)
The AL3353 has comprehensive protection features such as power
MOSFET overcurrent protection (OCP), output overvoltage protection
(OVP), diode and inductor short protection, LED cathode short-toGND protection, IC power supply undervoltage lockout (UVLO), LED
open protection, VOUT short protection, and overtemperature
protection (OTP).

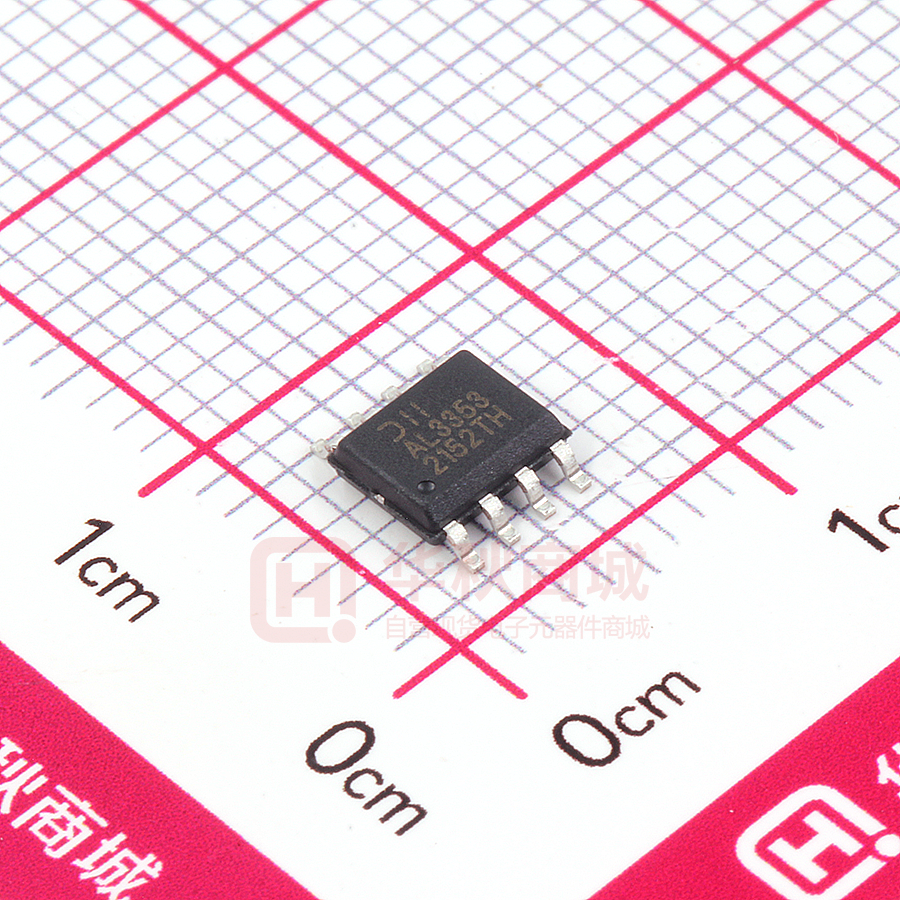

The AL3353 is available in the SO-8 (Type TH2) package.
Features
•
•
•
•
•
•
•
•
Applications
Wide Input Voltage Range: 9V to 40V
High Precision Feedback Reference Voltage: 400mV/±1.5%
Current Mode PWM Controller with Good Dynamic Response
PWM to Analog Dimming Mode
Built-In Comprehensive Protections
Undervoltage Lockout (UVLO)
Output Overvoltage Protection (OVP)
Power MOSFET Overcurrent Protection (OCP)
Diode and Inductor Short Protection
LED Cathode Short to GND Protection
LED Open Protection
VOUT Short Protection
•
•
•
LCD TV
LCD Monitor
Flat Panel Display
Overtemperature Protection (OTP)
Available in Pb-Free SO-8 (Type TH2) Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
AL3353
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
