AL5802LP-7

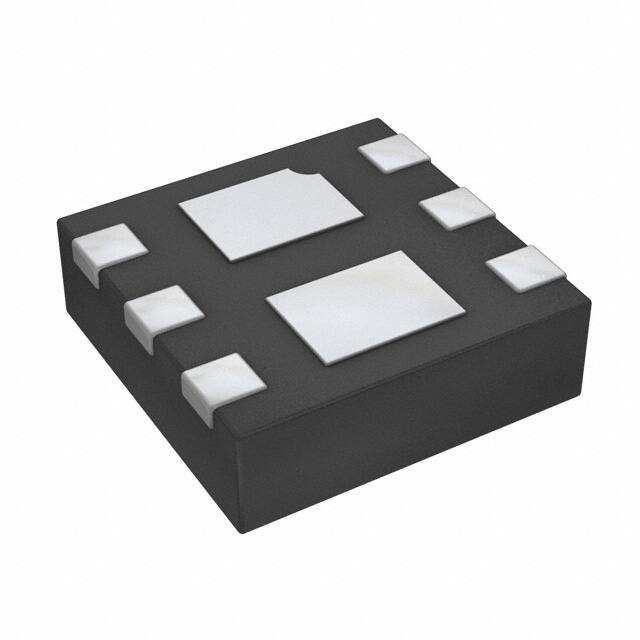

AL5802LP ADVANCE INFORMATION NEW PRODUCT LED DRIVER, 30V, LINEAR, ADJUSTABLE, CURRENT SINK Description Pin Assignments The AL5802LP combines a high-gain NPN transistor with a prebiased NPN transistor to make a simple, small footprint LED driver. The LED current is set by an external resistor connected from REXT pin (2) to GND pin (3), and the internal high-gain transistor develops approximately 0.6V across the external resistor. The AL5802LP’s open-collector output can operate from 0.8V to 30V making it suitable for industry standard 5V to 24V power supplies without additional components. PWM dimming of the LED current can be achieved by either driving the BIAS pin (6) with a low impedance voltage source, or driving the EN pin (4) with an external open-collector NPN transistor or open-drain N-Channel MOSFET. Internal Schematic (Top View) (Bottom View) The AL5802LP is available in a U-DFN1616-6 (Type F) package and is ideal for driving 10mA to 120mA LED currents. Package: U-DFN1616-6 (Type F) • The collector of Q2 is connected to pin 1 and pad 7 which is on the underside of the package • Pad 8 is electrically tied to the collector of Q1 and to the base of Q2, i.e. it is common with terminal 4 Features Mechanical Data          Reference Voltage VREXT = 0.65V -40 to +125°C Operating Temperature Range 0.8V to 30V Open-Collector Output Negative Temperature Coefficient – Automatically Reduces the LED Current at High Temperatures Low Thermal Impedance, Small Footprint DFN1616-6 Package with Exposed Pads Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3)    Case: U-DFN1616-6 (Type F) Case Material: Molded Plastic, “Green” Molding Compound; UL Flammability Classification Rating 94-V-0. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish – NiPdAu over Copper Leadframe; Solderable per MIL-STD-202, Method 208 e4 Weight: 0.005 grams (Approximate) Applications    Linear LED Driver LED Signs Offline LED Luminaries Ordering Information (Note 4) Notes: Device Qualification Packaging AL5802LP Commercial U-DFN1616-6 (Type F) Tape and Reel Quantity Part Number Suffix 3,000/Tape & Reel -7 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
