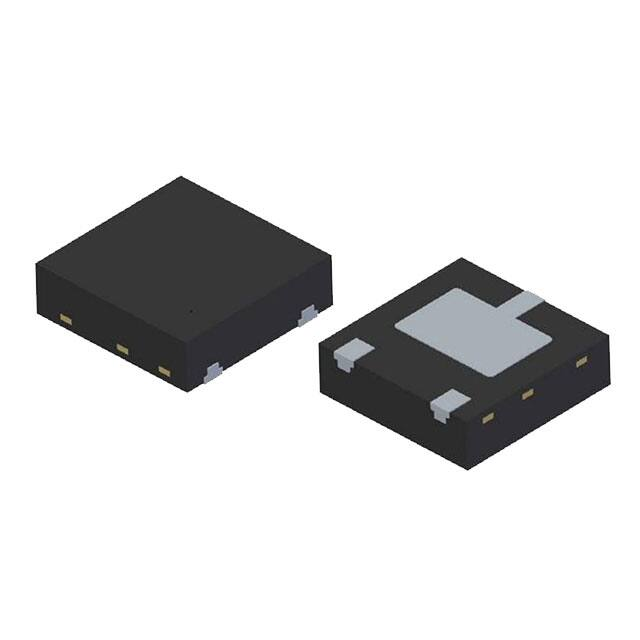

AL5810Q ADJUSTABLE 60V LINEAR LED DRIVER Description Pin Assignments The AL5810Q is an Automotive AEC-Q100 Linear LED Driver offering an excellent temperature and voltage current stability with output adjustable handling capability. The AL5810Q simplifies the design of LED drivers by setting the LED current with an external resistor using standard value resistors. W-DFN2020-3/SWP (Type A) NEW PRODUCT The AL5810Q has an open drain output that can swing from 2.0V up to 60V supply voltage enabling it drive long LED chains for high side or low side LED strings. Its low 0.5V RSET pin is outside of the LED current path and can maintain current accuracy while minimizing the required overheads to regulate the LED current. This reduces its power dissipation when compared to traditional linear LED drivers. It makes it ideal for driving LEDs up to 200mA. (Top View) (Bottom View) The AL5810Q is available in the Wettable Flank W-DFN2020-3/SWP (Type A) package (2mm x 2mm), power dissipation (PD) up to 2W. The AL5810Q has been qualified to AEC-Q100 Grade 2 with Automotive Compliant supporting PPAPs available. IN 1 3 OUT Features RSET 2    ACE-Q100 Grade 2 Qualified 2.0V to 60V Wide Input Voltage Range Low Reference Voltage (VRSET = 0.5V)       Adjustable Sink or Source LED Current Up to 200mA ±5% LED Current Tolerance @Room Temperature Parallel Devices to Increase Regulated Current Over Temperature Shutdown -40°C to +105°C Ambient Temperature Range Wettable W-DFN2020-3/SWP (Type A) (2mm x 2mm) PD up to    Notes: (Top View) 2W Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The AL5810Q is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/ Applications       Interior and Exterior Automotive LED Lighting Puddle Lighting Side Marker Lights Automotive Mirror Turning Lights LED Strings for Dome and Mood Lighting Instrumentation Illumination 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
