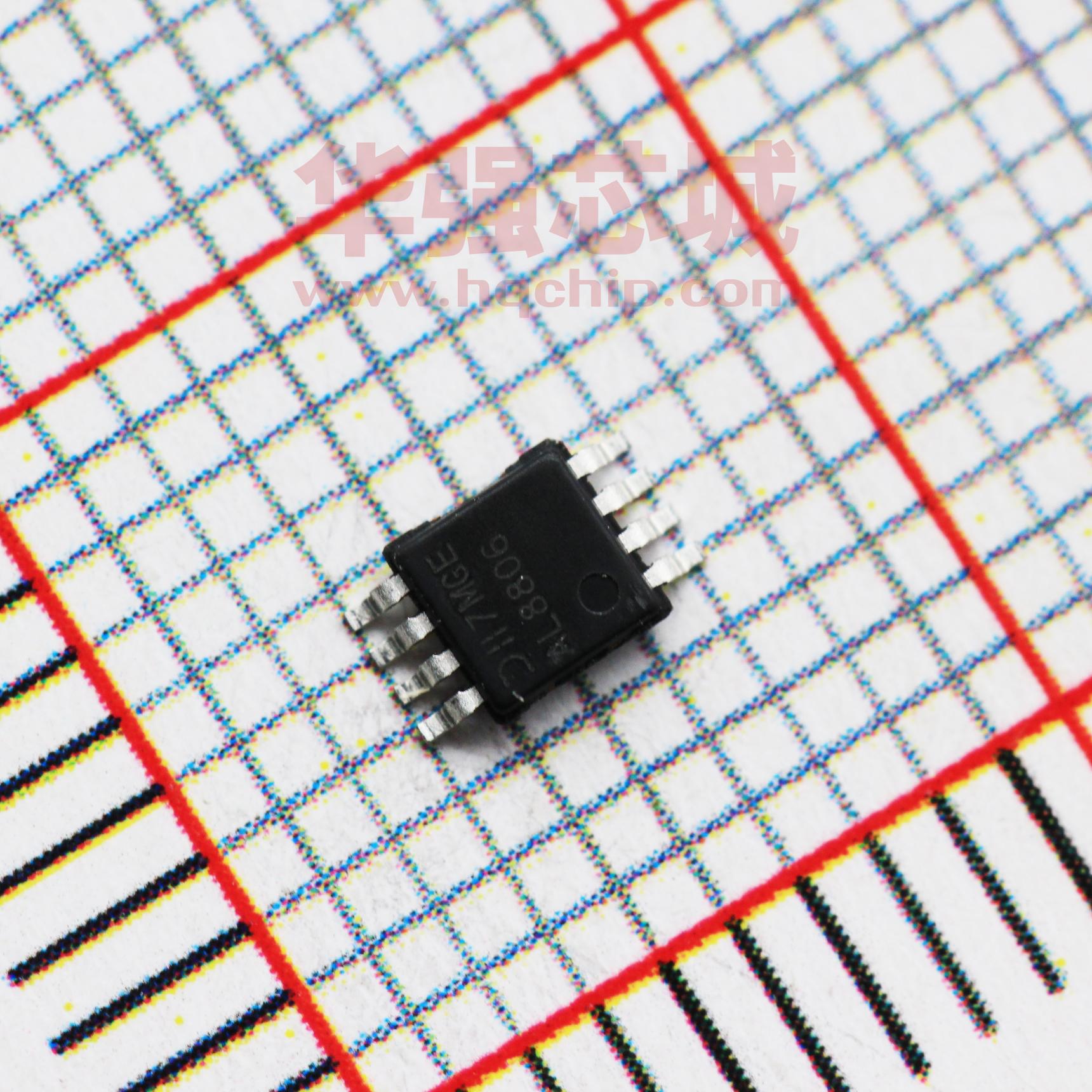

AL8806
HIGH EFFICIENCY 36V 1.5A BUCK LED DRIVER
Description
Pin Assignments
The AL8806 is a step-down DC/DC converter designed to drive LEDs
with a constant current. The device can drive up to 8 LEDs,
depending on the forward voltage of the LEDs, in series from a
SET
GND
GND
CTRL
voltage source of 6V to 36V. The AL8806 switches at frequencies up
to 1MHz. This allows the use of small size external components,
hence minimizing the PCB area needed.
1
2
3
4
Maximum output current of AL8806 is set via an external resistor
connected between the VIN and SET input pins. Dimming is achieved
AL8806
8
7
6
5
VIN
N/C
SW
SW
MSOP-8EP
by applying either a DC voltage or a PWM signal at the CTRL input
pin. An input voltage of 0.4V or lower at CTRL switches off the output
MOSFET simplifying PWM dimming.
Features
Applications
LED driving current up to 1.5A
High Power MR16 Lamps
Better than 5% accuracy
General Illumination Lamps
High efficiency up to 98%
Multi-Die LED Driver
Operating input voltage from 6V to 36V
High switching frequency up to 1MHz
PWM/DC input for dimming control
Built-in output open-circuit protection
MSOP-8EP: Available in “Green” Molding Compound (No Br,
Sb) with lead Free Finish/ RoHS Compliant
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
