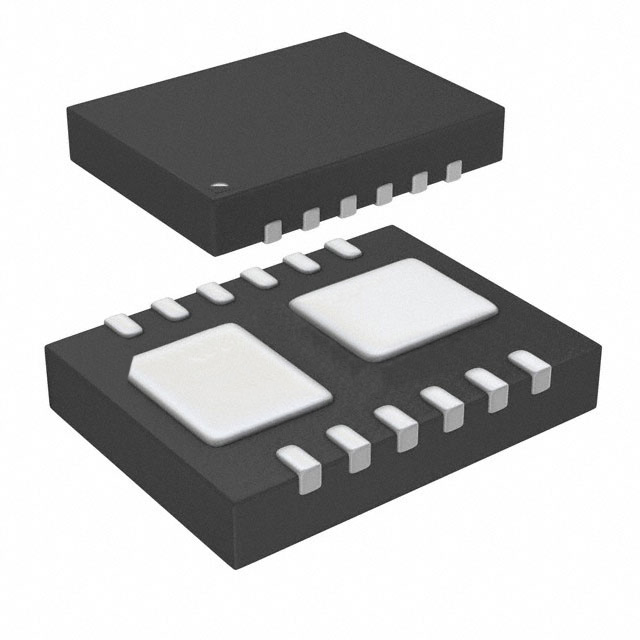

AL8812 BOOST/BUCK DC-DC CONVERTER FOR DIMMABLE MR16 LED LAMPS Description Pin Assignments The AL8812 is a monolithic control circuit containing the primary functions required for DC-to-DC converters with MOSFET in one package. These devices consist of an internal NC 1 12 DRAIN GATE 2 11 SOURCE INPUT 3 10 TIMING VCC 4 9 GND SENSE 5 8 SW/E DRIVE 6 7 SW/C temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high current output switch. Additionally a 60V, 3.6A MOSFET is integrated for reduced BOM cost and size. This series is specifically designed for buck and boost applications with a minimum number of external components. U-DFN6040-12 Applications Features • Operation from 3.0V to 20V Input • Low Voltage LED Lighting such as MR-16 • Integrated 60V, 3.6A MOSFET • General Purpose DC-DC Converter • Low Standby Current • Current Limiting • Output Voltage Adjustable • Frequency Operation to 100 kHz • Precision 2% Reference • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
