AL8822
50V, 2A BOOST LED DRIVER
NEW PRODUCT
Description
Pin Assignments
The AL8822 is a boost converter that delivers an accurate constant
current for MR16 and similar LED Lamps. With proprietary control
scheme, the LED driver is compatible with many commonly used
electronic transformers and provides designs with High Power Factor
(PF) and low Total Harmonic Distortion (THD) for these applications.
The operation frequency is up to 1MHz that allows the use of a small
size inductor. With the package of SO-8EP, the AL8822 has small
package size, small thermal resistance and can be used for wide
range of output power. The driver can be used for dimmable MR16
application and can be compatible with leading-edge dimmer and
trailing-edge dimmer.
(Top View)
NC
7
VCC
3
6
VIN
4
5
NC
1
CS
2
FB
COMP
Features
EP

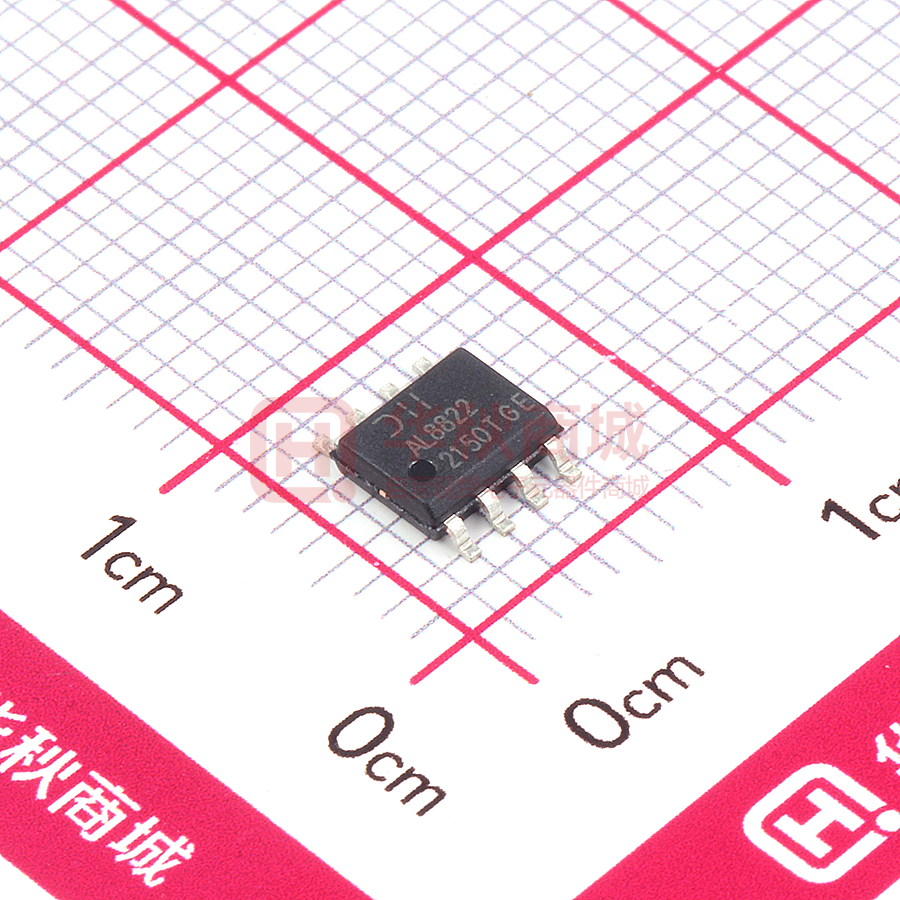

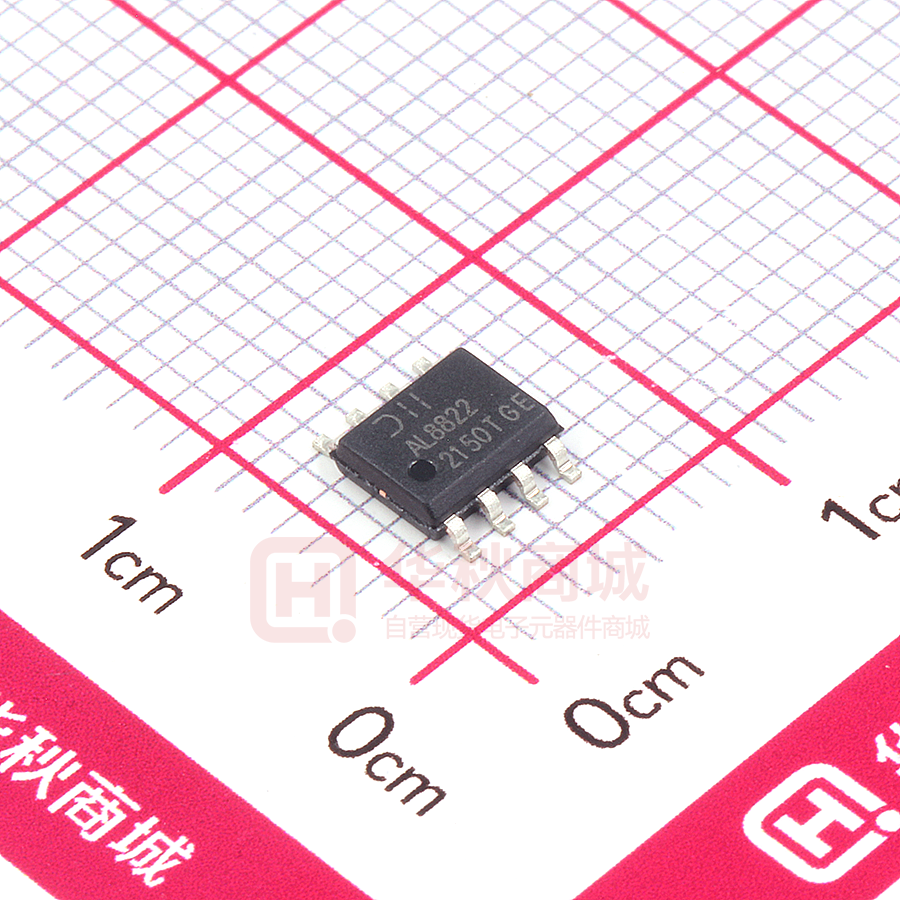

SO-8EP
Wide Input Voltage Range: 5V to 36V
Internal 50V NDMOS Switches
Continuous Conduction Mode (CCM) Operation
Applications
Up to 1MHz Switching Frequency
High PF > 0.9 and Low THD < 30% and Low Ripple < 20%
Compatible with Leading-edge Dimmer and Trailing-edge
Dimmer
Internal Protections
Under Voltage Lock Out (UVLO)
Output Open Protection
Over Temperature Protection (OTP)
Pb-free SO-8EP
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
8
SW
Non-dimmable MR16 Lamps
Dimmable MR16 Lamps
General Illumination Lamps
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
