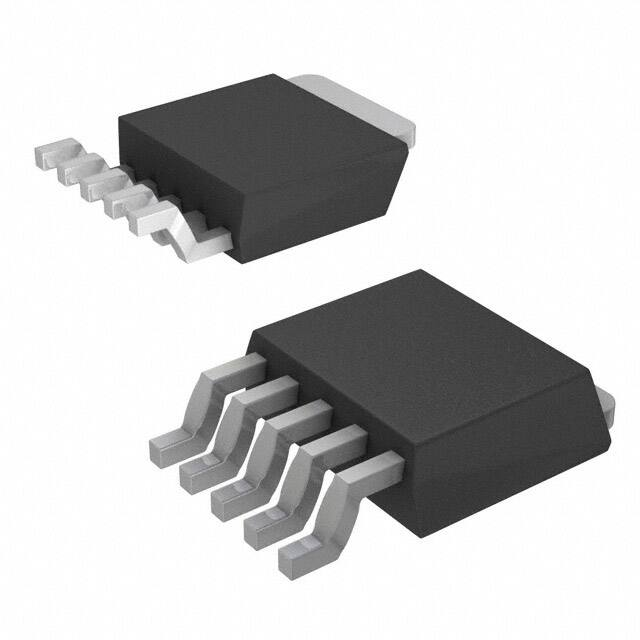

AP1507-D5-13

厂商：
BCDSEMI(美台)
封装：
TO-252-6
描述：
AP1507是一款单片IC,设计用于降压DC/DC转换器,能够驱动3A负载而无需外部晶体管。通过减少外部组件数量,可以节省电路板空间。外部关断功能可以通过逻辑电平控制,进入待机模式。内部补偿使反馈控制...

数据手册：

下载AP1507-D5-13.pdf

立即购买

详情介绍
数据手册
价格&库存

AP1507-D5-13 数据手册

NOT RECOMMENDED FOR NEW DESIGN CONTACT US AP1507 150kHz, 3A PWM BUCK DC/DC CONVERTER Description Pin Assignments The AP1507 is a monolithic IC designed for a step-down DC/DC (Top View) converter and is capable of driving a 3A load without an external transistor. Due to reducing the number of external components, the 5 SD 4 FB 3 GND 2 Output 1 VIN board space can be saved easily. The external shutdown function can be controlled by logic level and then go into standby mode. The internal compensation makes the feedback control have good line and load regulation without an Metal Tab GND external design. Regarding the protected function, the thermal TO252-5 shutdown prevents overtemperature operation from damaging the device, and current limit protects against overcurrent operation of the output switch. If the current limit function occurs, and VFB is down to 0.5V below, the switching frequency reduces. The AP1507 series operates at a switching frequency of 150kHz, which allows smaller-sized filter components than the requirements with lower frequency switching regulators. Other features include a guaranteed ±4% tolerance on output voltage under specified input voltage and output load conditions and ±15% on the oscillator frequency. The output version included a fixed 3.3V, 5V, 12V, and an adjustable type. AP1507 is available in a 5-lead TO252-5 green package. Applications Features • • • • • • • • • • • • • Output Voltage: 3.3V, 5V, 12V and Adjustable Output Version Adjustable Version Output Voltage Range, 1.23V to 18V ±4% 150kHz ±15% Fixed Switching Frequency Voltage Mode Non-Synchronous PWM Control Thermal-Shutdown and Current-Limit Protection ON/OFF Shutdown Control Input Operating Voltage up to 22V Output Load Current: 3A Low Power Standby Mode Built-in Switching Transistor On Chip Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions Notes: • • • Simple High-Efficiency Step-Down Regulator On-Card Switching Regulators Positive to Negative Converter 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain

下载 PDF

AP1507-D5-13

物料型号：AP1507

器件简介： - AP1507是一款单片集成IC，设计用于降压型DC/DC转换器，能够驱动3A负载而无需外部晶体管。 - 该器件具有外部关闭功能，可以通过逻辑电平控制进入待机模式。 - 内部补偿确保了反馈控制具有良好的线路和负载调节，无需外部设计。 - 保护功能包括热关断以防止过热损坏设备，电流限制保护输出开关的过流操作。

引脚分配： - VIN (Pin 1)：操作电压输入 - Output (Pin 2)：开关输出 - GND (Pin 3)：地 - FB (Pin 4)：输出电压反馈控制 - SD (Pin 5)：ON/OFF关闭

参数特性： - 开关频率：150kHz，允许使用比低频开关调节器更小尺寸的滤波器组件。 - 输出电压公差：在规定的输入电压和输出负载条件下，输出电压的公差为±4%，振荡频率的公差为±15%。 - 输出版本包括固定3.3V、5V、12V和可调类型。

功能详解： - AP1507系列提供了简单高效的降压调节器、板上开关调节器、正到负转换器等。 - 具有热关断和电流限制保护，以及ON/OFF关闭控制。 - 输入操作电压高达22V，输出负载电流为3A。 - 待机模式下低功耗。

应用信息： - 适用于需要高效率降压调节的场合，如车载应用等。

封装信息： - AP1507提供5引脚TO252-5绿色封装。 - 封装的热阻和结温上升数据均为近似值，实际受多种因素影响。
