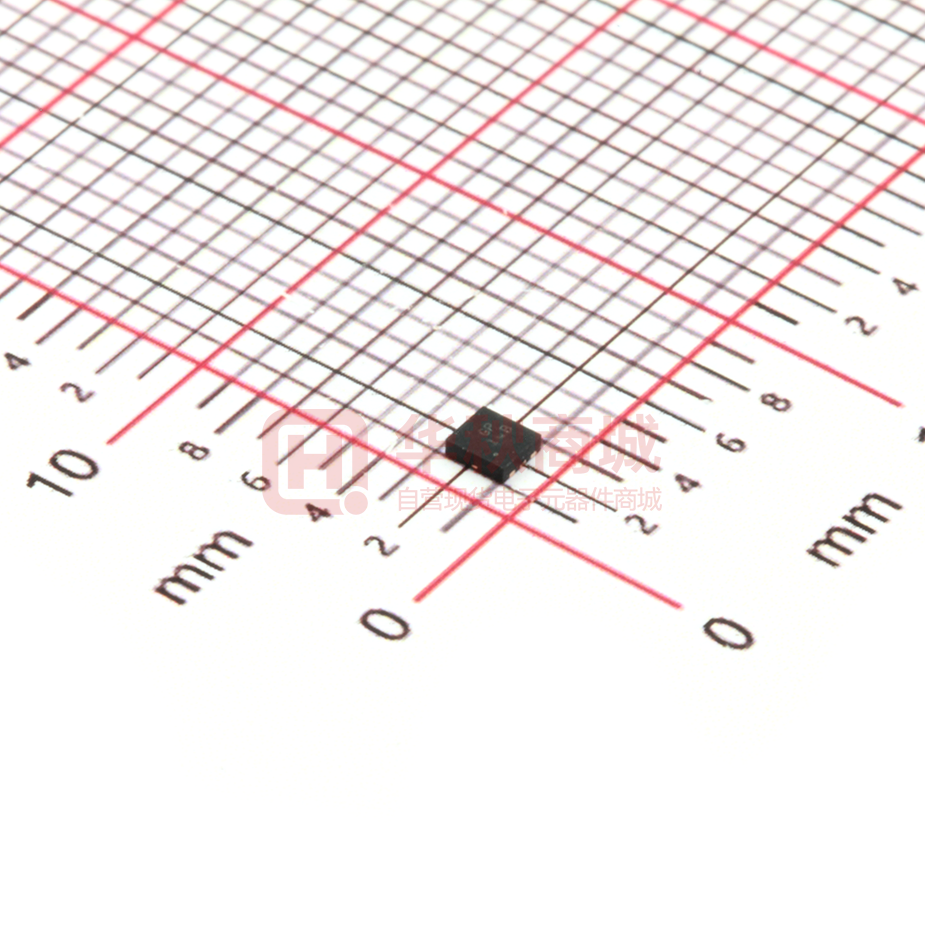

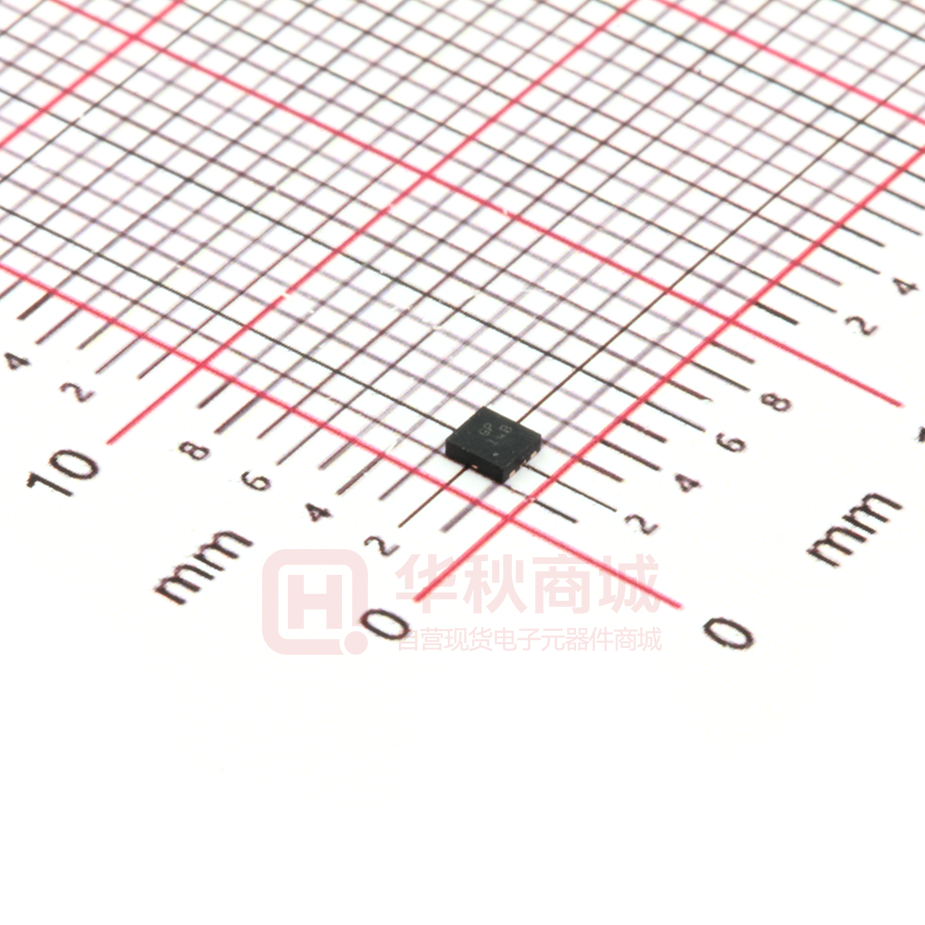

AP21510FM-7

AP21410 / AP21510 0.2A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Description Pin Assignments The AP21410 and AP21510 are integrated high-side power switches (Top View) optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short circuit protection as well as controlled rise time and undervoltage lockout functionality. GND 1 6 OUT IN 2 5 OUT EN 3 4 NC All devices are available in U-DFN2018-6 packages. U-DFN2018-6 Features Applications                     Single USB Port Power Switches Overcurrent and Thermal Protection 0.4A Typical Current Limiting Reverse Current Blocking 95mΩ On-Resistance Input Voltage Range: 2.7V to 5.5V 0.4ms Typical Rise Time Very Low Shutdown Current: 1µA (Max) ESD Protection: 4KV HBM, 400V MM Active Low (AP21410) or Active High (AP21510) Enable Ambient Temperature Range -40°C to +85°C U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb) 15kV ESD Protection per IEC 61000-4-2 (with External Capacitance) UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: Consumer Electronics – LCD TVs & Monitors, Game Machines Communications – Set-Top Boxes, GPS, Smartphones Computing – Laptops, Desktops, Servers, Printers, Docking Stations, HUBs 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
