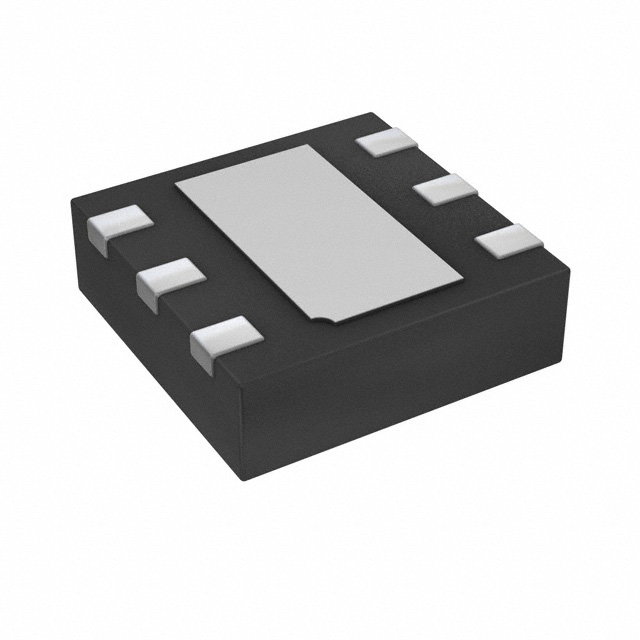

AP2161FMG-7

AP2161/ AP2171 1A SINGLE CHANNEL CURRENT-LIMITED POWER SWITCH Description Pin Assignments The AP2161 and AP2171 are integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB 2.0 and is available with both polarities of Enable input. They offer current and thermal limiting and short-circuit protection as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false overcurrent reporting and does not require any external components. ( Top View ) GND 1 8 NC IN 2 7 OUT IN 3 6 OUT EN 4 5 FLG 1 8 NC IN 2 7 OUT IN 3 6 OUT EN 4 5 FLG SO-8 All devices are available in SO-8, MSOP-8EP, SOT25, and U-DFN2018-6 packages ( Top View ) GND Features                Single USB Port Power Switches Overcurrent and Thermal Protection 1.5A Accurate Current Limiting Reverse Current Blocking 95mΩ On-Resistance Input Voltage Range: 2.7V – 5.5V 0.6ms Typical Rise Time Very Low Shutdown Current: 1µA (max) Fault Report (FLG) with Blanking Time (7ms typ) ESD Protection: 4kV HBM, 300V MM Active Low (AP2161) or Active High (AP2171) Enable Ambient Temperature Range: -40°C to +85°C SOT25, SO-8, MSOP-8EP (Exposed Pad), and U-DFN2018-6: Available in “Green” Molding Compound (No Br, Sb) Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green Device (Note 3)   UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified Applications    Consumer Electronics – LCD TVs & Monitors, Game Machines Communications – Set-Top-Boxes, GPS, Smartphones Computing – Laptops, Desktops, Servers, Printers, Docking Station, HUB Notes: MSOP-8EP ( Top View ) OUT 1 GND 2 FLG 3 5 IN 4 EN SOT25 ( Top View ) GND 1 6 OUT IN 2 5 OUT EN 3 4 FLG U-DFN2018-6 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
