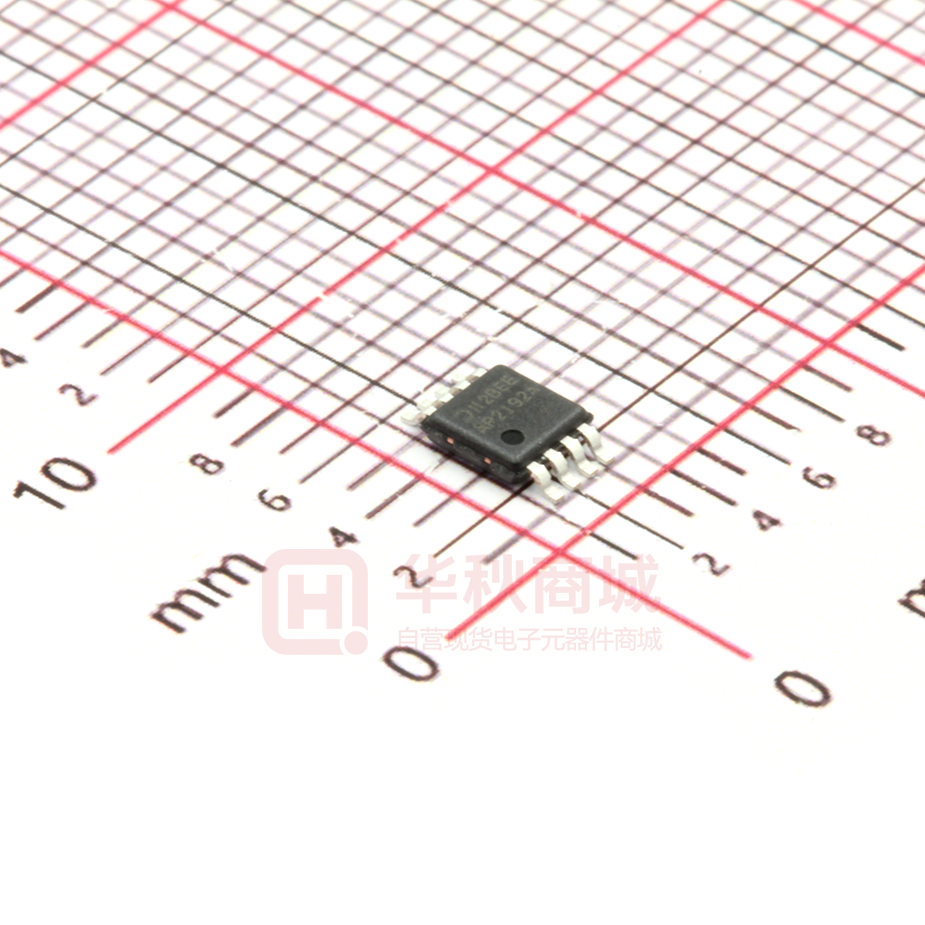

AP2192AMPG-13

AP2182A/AP2192A 1.5A DUAL CHANNEL CURRENT-LIMITED POWER SWITCH Description Pin Assignments The DIODES™ AP2182A and DIODES™ AP2192A are dual channel, ( Top View ) current-limited, integrated, high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and is available with GND 1 8 FLG1 IN 2 7 OUT1 EN1 3 6 OUT2 EN2 4 5 FLG2 both polarities of Enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure a completely controlled discharging of the output voltage capacitor. They provide a complete protection solution for applications SO-8 subject to heavy capacitive loads and the prospect of short circuits, and offer reverse-current blocking, overcurrent, overtemperature, and ( Top View ) short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false overcurrent reporting and does not require any external components. All devices are available in the SO-8, MSOP-8EP, and U-DFN3030-8 (Type E) packages. GND 1 8 FLG1 IN 2 7 OUT1 EN1 3 6 OUT2 EN2 4 5 FLG2 MSOP-8EP Features  ( Top View ) Dual Channel, Current-Limited Power Switch with Output Discharge  Fast Short-Circuit Response Time: 2µs  2.0A Accurate Current Limiting  Reverse Current Blocking  GND 1 8 FLG1 IN 2 7 OUT1 85mΩ On-Resistance EN1 3 6 OUT2  Input Voltage Range: 2.7V - 5.5V EN2 4 5  FLG2 Built-In Soft-Start with 0.6ms Typical Rise Time  Short Circuit and Thermal Protection  Fault Report (FLG) with Blanking Time (7ms typ)  ESD protection: 2kV HBM, 300V MM  Active High (AP2192A) or Active Low (AP2182A) Enable  Ambient Temperature Range: -40°C to +85°C  SO-8, MSOP-8EP and DFN3030E-8 (Exposed Pad): Available in U-DFN3030-8 Type E Applications “Green” Molding Compound (No Br, Sb)  UL Recognized, File Number E322375  IEC60950-1 CB Scheme Certified  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  For automotive applications requiring specific change  LCD TVs and monitors  Set-top boxes, residential gateways  Laptops, desktops, servers  Printers, docking stations, HUBs control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities),  please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
