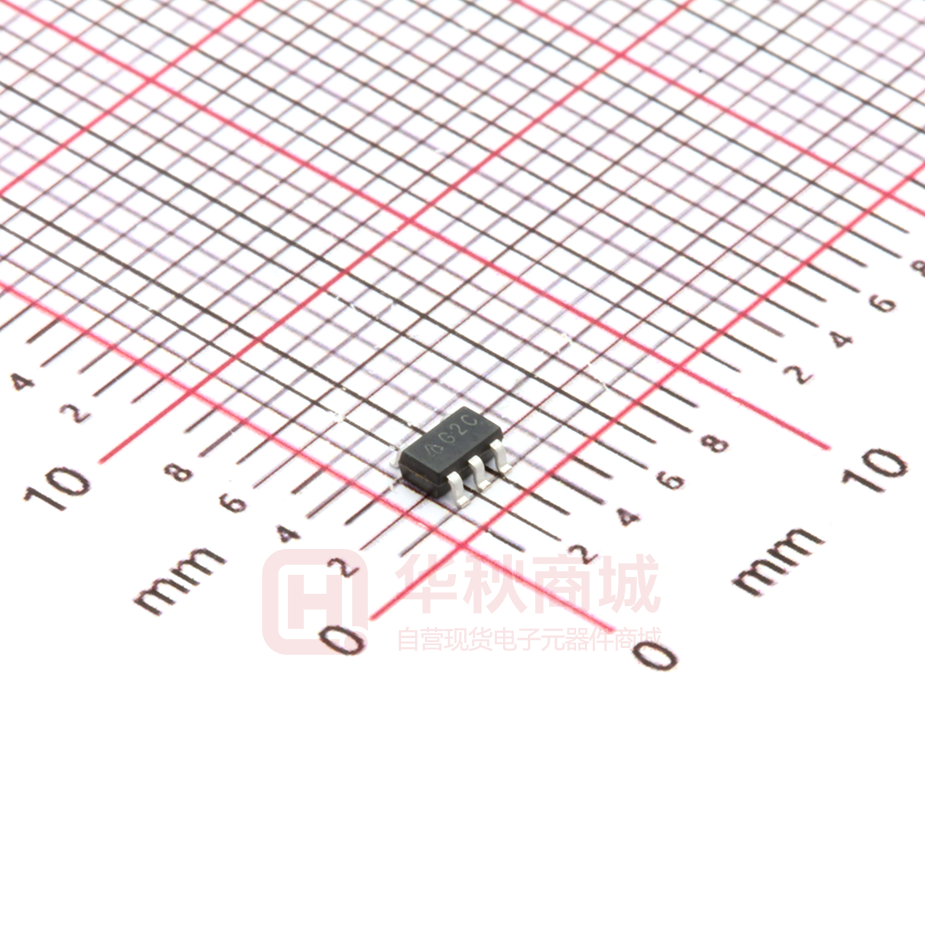

AP2202K-ADJTRG1

AP2202 150mA RF ULDO REGULATOR Description Pin Assignments The DIODES™ AP2202 is a 150mA ULDO regulator which provides very low noise, ultra-low dropout voltage (typically 165mV at 150mA), very low standby current (1µA maximum), and excellent power supply ripple rejection (PSRR 75dB at 100Hz). This device is used in batterypowered applications, such as handsets and PDAs; and in noisesensitive applications, such as RF electronics. (Top View) VIN 1 GND 2 EN 3 The AP2202 also features logic-compatible enable/shutdown control inputs, a low power shutdown mode for extended battery life, overcurrent protection, over temperature protection, and reversed current protection. (Top View) VOUT 5 BYP 4 VIN 1 GND 2 EN 3 5 VOUT 4 ADJ SOT-23-5 (Top View) (Top View) The AP2202 has adjustable 2.5V, 2.6V, 2.8V, 3.0V, and 3.3V versions. 1 The AP2202 is available in the space-saving SOT-23-5 and SOT-89 packages. 2 VOUT VIN GND (TAB) SOT-89 (Option 1) Features Applications    Up to 150mA Output Current Low Standby Current Low Dropout Voltage: VDROP = 165mV at 150mA   High Output Accuracy: ±1% Good Ripple Rejection Ability: 75dB at 100Hz and IOUT = 100µA        Tight Load and Line Regulation Low Temperature Coefficient Overcurrent Protection Thermal Protection Reverse Current Protection Logic-Controlled Enable Lead-Free Packages: SOT-23-5, SOT-89  Totally Lead-Free; RoHS Compliant (Notes 1 & 2)         Lead-Free Packages, Available in “Green” Molding Compound: SOT-23-5, SOT-89  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen- and Antimony-Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/  Notes: 3 1 2 3 VOUT GND (TAB) VIN SOT-89 (Option 2) Cellular phones Cordless phones Digital still cameras Wireless communicators PDAs/palmtops PC mother boards Consumer electronics 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
