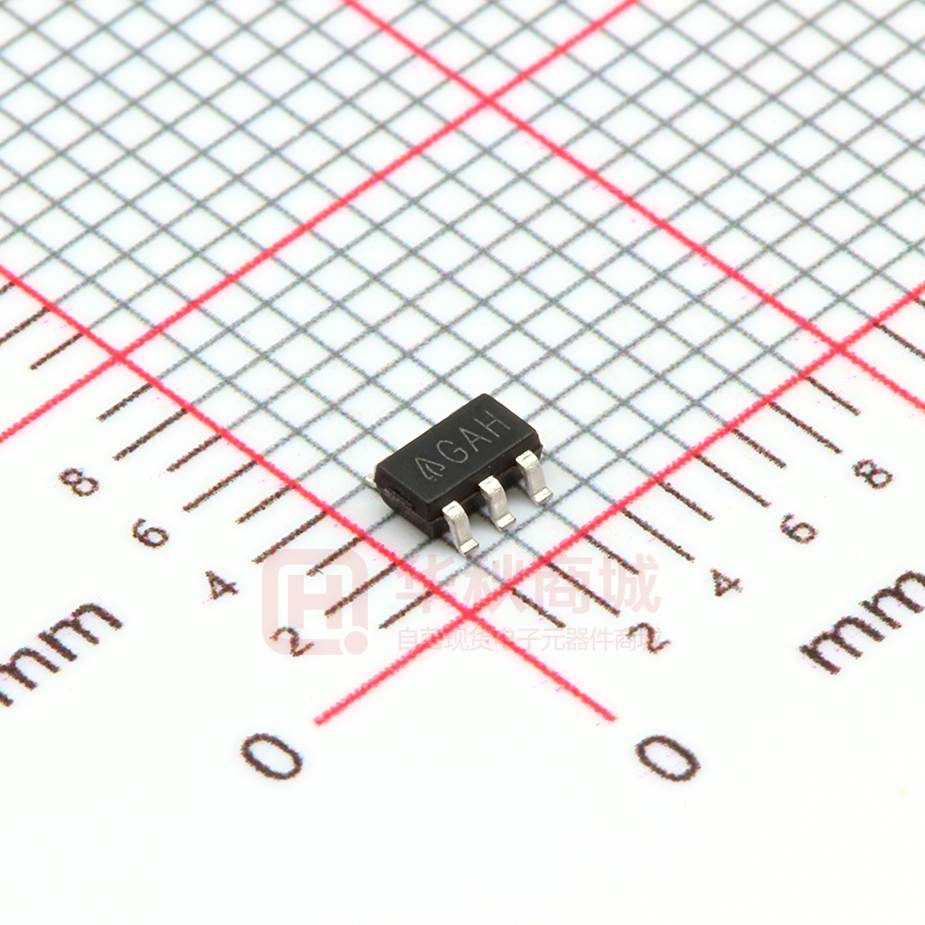

AP2204K-3.3TRG1

AP2204 WIDE INPUT VOLTAGE RANGE, 150mA ULDO REGULATOR Description Features The AP2204 series is a positive voltage regulator IC fabricated by high voltage EPNP process.     Wide Input Voltage Range: 2.6V to 24V Wide Output Voltage Range: 1.24V to 22V Excellent Ripple Rejection: 60dB@ f = 1kHz Low Dropout Voltage: VDROP = 100mV@ IOUT = 100µA        Low Ground Current High Output Voltage Accuracy Compatible with Low ESR Ceramic Capacitor Excellent Line/Load Regulation Thermal Shutdown Function Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) The AP2204 has features of wide input voltage range, high accuracy, high ripple rejection, low dropout voltage, low noise, current limit and ultra-low quiescent current which make it ideal for use in various USB and portable devices. The IC consists of a voltage reference, an error amplifier, a resistor network for setting output voltage, a current limit circuit for current protection, and a chip enable circuit. The AP2204 has 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 5.0V fixed voltage versions and adjustable voltage version. Applications    The AP2204 is available in space-saving SOT-23-5, SOT-89 and PSOP-8 packages. Notes: Battery-powered Equipment Laptop, Palmtops, Notebook Computers Portable Information Appliances 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
