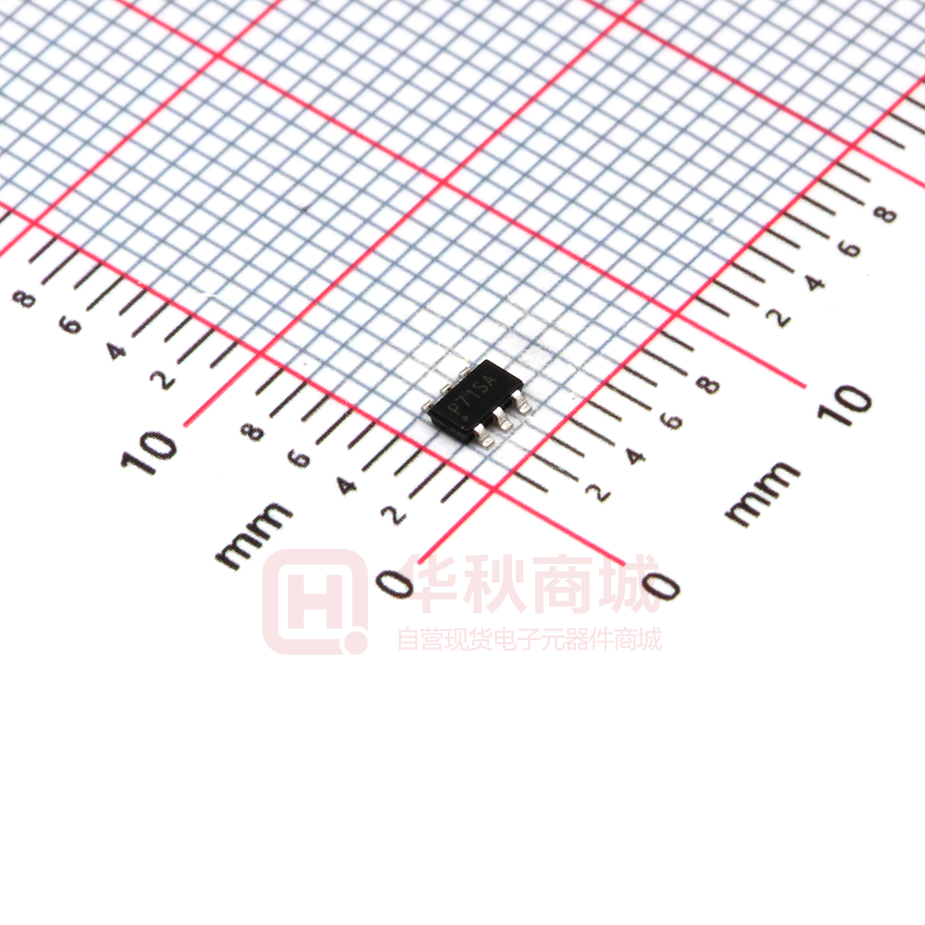

AP22615AWU-7

AP22815 / AP22615 SINGLE CHANNEL POWER DISTRIBUTION SWITCH WITH OUTPUT OVP Description Pin Assignments The AP22815/615 is a 3A single-channel current-limited high-side power switch with output OVP optimized for USB and other hot-swap applications, which must have overvoltage protection from output to protection the system. The AP22815/615 complies with USB standards and is available with both polarities of Enable input. AP22815 supports fixed current-limited feature, while AP22615 equips adjustable current-limited feature optimized for applications that require precision current limiting support. It supports USB PD3.0 fast role-swap function. The output voltage could recovery to USB valid voltage range within 110µs during USB PD fast role-swap event. (Top View) OUT GND IN AP22815 FLG EN TSOT25 (Top View) The device has fast short-circuit and output overvoltage response time for improved overall system robustness. Both TSOT25 and TSOT26 packages integrate discharge circuitry inside OUT pin. They provide a complete protection solution for applications subject to heavy capacitive loads and the prospect of short circuit, and offer output overvoltage protection, reverse-current protection, overcurrent, overtemperature and short-circuit protection, as well as controlled rise time and undervoltage lockout functionality. A 7ms deglitch capability on the open-drain flag output prevents false overcurrent, overvoltage, and overtemperature reporting and does not require any external components. IN OUT GND AP22615 FLG ISET EN TSOT26 The AP22815 is available in a standard green TSOT25 package with RoHS compliant. The AP22615 is available in a standard Green TSOT26 package with RoHS compliant. Applications Features                 Input Voltage Range: 3.0V to 5.5V 40mΩ On-Resistance Built-In Soft-Start with 2.1ms Typical Rise Time Fault Report (FLG) with Blanking Time (7ms Typ) Accurate Adjustable Current Limit, 0.4A to 4.0A (AP22615 Only) ESD Protection: 2kV HBM, 200V MM Active Low or Active High Enable Protection  Output Overvoltage with Auto Recovery  Overcurrent with Auto Recovery  Short-Circuit with Auto Recovery  Overtemperature with Auto Recovery Output Reverse Voltage/Current Protection Fast Role Swap Function Thermally Efficient Low Profile Package UL Recognized, File Number E322375 IEC60950-1 CB Scheme Certified IEC62368-1 CB Scheme Certified Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes:        Integrated Load Switches in Ultrabook PC Power Up/Down Sequencing in Ultrabook PC Notebook, Netbook, Tablet PC, Set-Top Box SSD (Solid State Drives) Consumer Electronics USB Charger Telecom Systems 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
