AP22966
010
5V DUAL CHANNEL PROGRAMMABLE LOAD SWITCH
Description
Pin Assignments
NEW PRODUCT
AP22966 is an integrated dual N-channel load switch which features
an adjustable slew rate that can be set using an external capacitor
independently for each channel. The N-Channel MOSFETs have a
typical RON of 18mΩ, enabling current handling capability of up to 6A.
Both channels can independently be controlled with low voltage logic
signals.
(Top View)
AP22966 is designed to operate from 0.8V to 5.5V. The low quiescent
supply current makes it ideal for use in battery powered distribution
systems where power consumption is a concern.

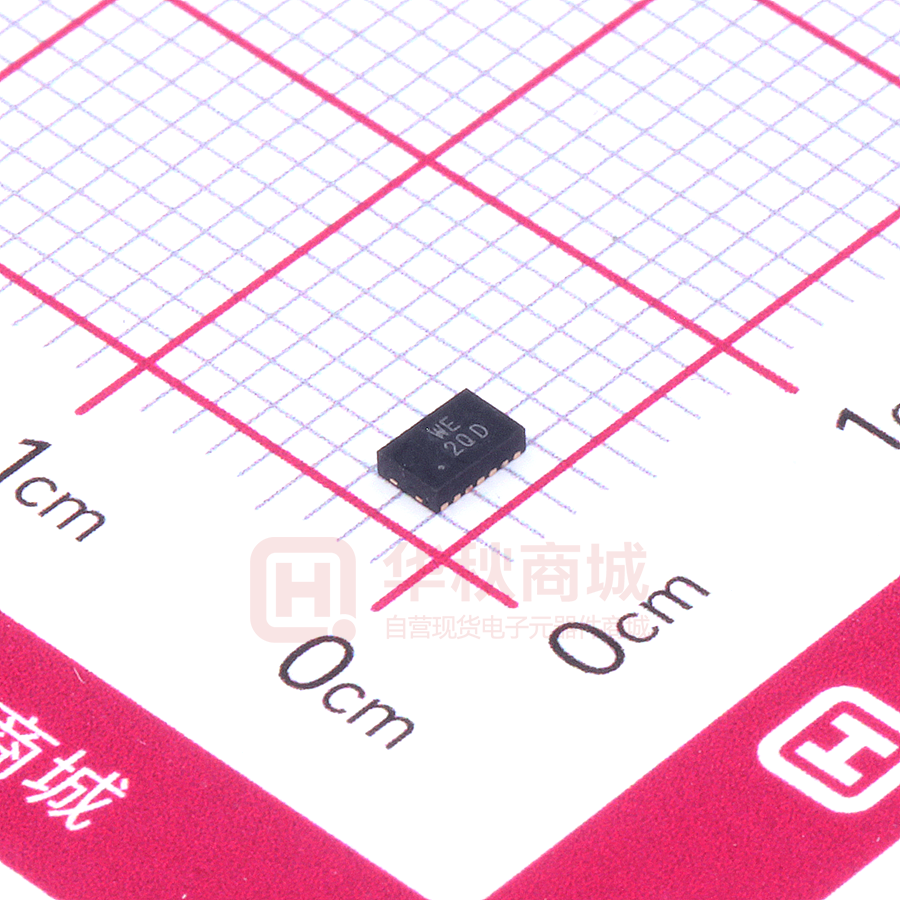

AP22966 is available in a standard Green V-DFN3020-14 package
with exposed PAD for improved thermal performance and is RoHS
compliant.
(Bottom View)
VIN1
1
14
VOUT1
14
1
VIN1
VIN1
2
13
VOUT1
13
2
VIN1
EN1
3
12
SS1
12
3
EN1
VBIAS
4
11
GND
11
4
VBIAS
EN2
5
10
SS2
10
5
EN2
VIN2
6
9
VOUT2
9
6
VIN2
VIN2
7
8
VOUT2
8
7
VIN2
Features
Integrated Dual Channel Load Switch
0.8V to 5.5V Input Voltage Range
Low Typical RON of 18mΩ (VBIAS = 5V)
6A Maximum Continuous Current per Channel
Very Low Quiescent Current
60μA (Both Channels)
45μA (Single Channel)
Per Channel Adjustable Slew Rate
Internal Quick Output Discharge (QOD)
Low Voltage Logic Enable
1.2/1.8/2.5/3.3V Logic
Small Form Factor Package V-DFN3020-14
– Footprint of just 6mm2
Thermally Efficient Low Profile Package
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Notes:
V-DFN3020-14
Applications
Ultrabooks
Notebooks
Netbooks
SetTop Boxes
SSD (Solid State Drives)
Consumer Electronics
Tablet PC
Telecom Systems
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green" products are defined as those which contain
