AP62600
4.5V TO 18V INPUT, 6A SYNCHRONOUS BUCK CONVERTER
Pin Assignments
The DIODES™ AP62600 is a 6A, synchronous buck converter with a
wide input voltage range of 4.5V to 18V. The device fully integrates a
36mΩ high-side power MOSFET and a 14mΩ low-side power
MOSFET to provide high-efficiency step-down DC-DC conversion.
The AP62600 device is easily used by minimizing the external
component count due to its adoption of Constant On-Time (COT)
control to achieve fast transient response, easy loop stabilization, and
low output voltage ripple.
GND
SS/TR
VCC
V-QFN2030-12
(Type A)
TOP VIEW
FB
Description
12
11
10
9
PGND
1
VIN
Features
Applications
Notes:
3
4
5
6
MODE
FSEL
PG
7
BST
V-QFN2030-12
Top View
(Type A)

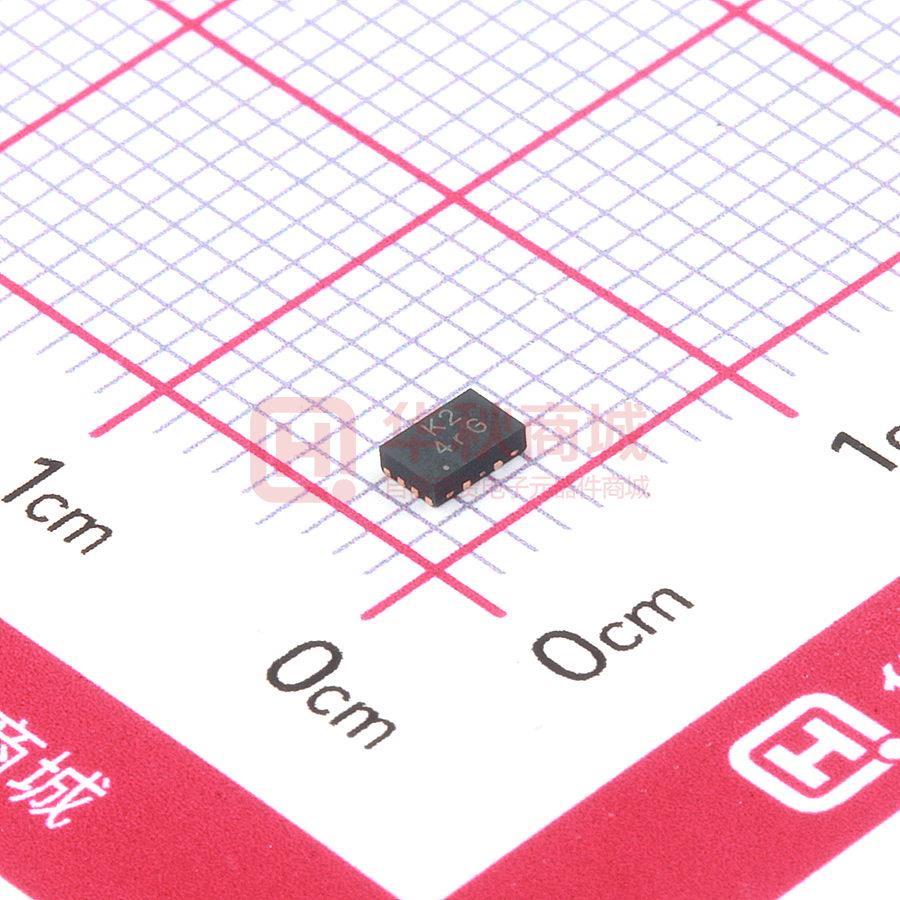

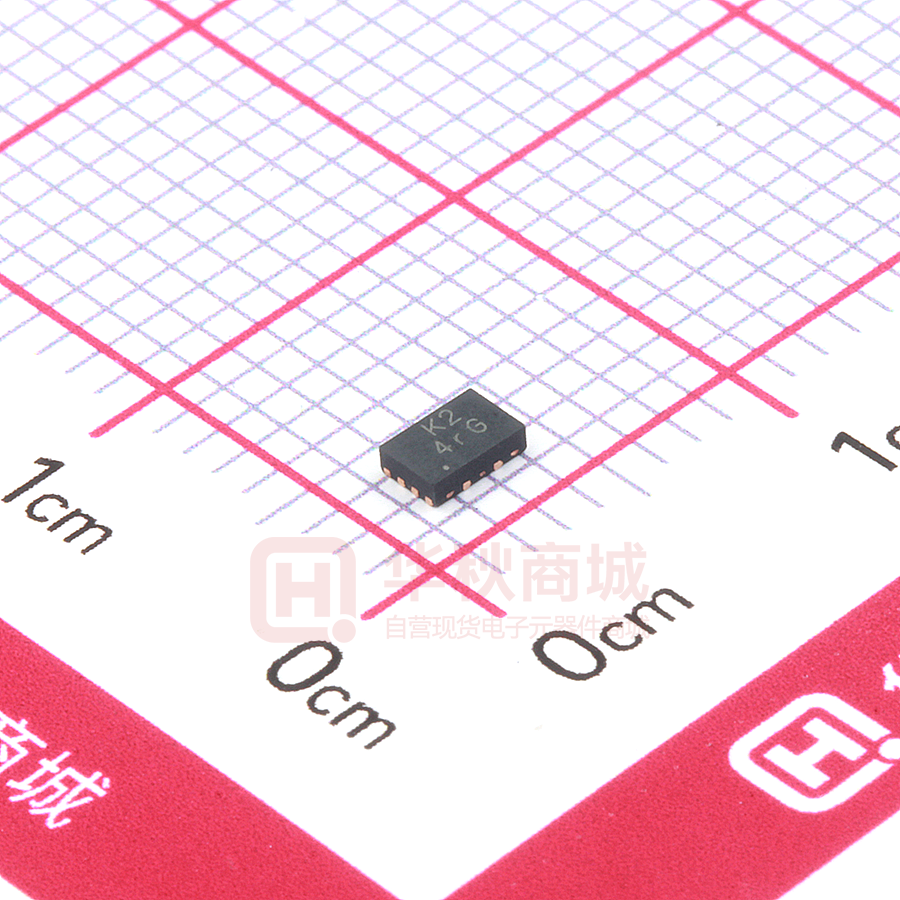

The device is available in a V-QFN2030-12 (Type A) package.
2
EN
The AP62600 design is optimized for Electromagnetic Interference
(EMI) reduction. The device has a proprietary gate driver scheme to
resist switching node ringing without sacrificing MOSFET turn-on and
turn-off time, which reduces high-frequency radiated EMI noise
caused by MOSFET switching.
VIN: 4.5V to 18V
Output Voltage (VOUT): 0.6V to 7V
6A Continuous Output Current
0.6V ± 1% Reference Voltage
360μA Quiescent Current
Selectable Switching Frequency
400kHz
800kHz
1.2MHz
Selectable Operation Modes
Pulse Frequency Modulation (PFM)
Ultrasonic Mode (USM)
Pulse Width Modulation (PWM)
Programmable Soft-Start Time
Proprietary Gate Driver Design for Best EMI Reduction
Power-Good Indicator
Precision Enable Threshold to Adjust UVLO
Protection Circuitry
Undervoltage Lockout (UVLO)
Cycle-by-Cycle Valley Current Limit
Thermal Shutdown
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change
control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP
capable, and manufactured in IATF 16949 certified facilities),
please contact us or your local Diodes representative.
https://www.diodes.com/quality/product-definitions/
SW
8
5V and 12V distributed power bus supplies
Television sets and monitors
White goods and small home appliances
FPGA, DSP, and ASIC supplies
Home audios
Network systems
Gaming consoles
Consumer electronics
General purpose point of loads
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and
Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain
