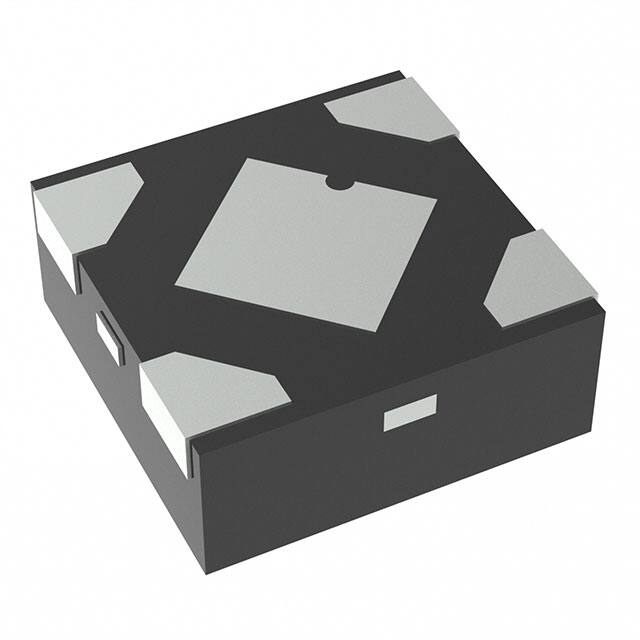

AP7354D-15FS4-7

AP7354 150mA ULTRA-LOW QUIESCENT CURRENT LDO WITH ENABLE Description Pin Assignments The AP7354 is a low dropout regulator with high output voltage accuracy. The AP7354 includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on/off. With the integrated resistor network, fixed output voltage versions can be delivered. (Top View) (Top View) GND 3 With its ultra-low quiescent current, the AP7354 is well-suited for lowpower handheld, wearable devices, and other battery-operated devices requiring an extended time period until new battery replacement. 1 2 VIN VOUT VIN 1 GND 2 EN 3 SOT23 The AP7354 is available in SOT23, SOT25, and X2-DFN1010-4 (Type B) packages. 5 VOUT 4 NC SOT25 (Top View) 4 (Bottom View) 3 3 4 2 2 1 Features                Wide VIN Range: 2.0V to 5.5V Guarantee Output Current: 150mA Output Voltage Range: 1.1V to 4.5V VOUT Accuracy: ±1% Quiescent Current as Low as 0.25µA Output Discharge Available for Devices in SOT25 or X2DFN1010-4 (Type B) Typical Standby Current: 0.02µA ESD Protection Exceeds JESD 22  Exceeds 4000V Human Body Model (A114)  Exceeds 400V Machine Model (A115) Latch-Up Exceeds 400mA per JESD 78, Class I Moisture Sensitivity: Level 1 per J-STD-020 Terminals:  SOT23/SOT25: Finish - Mate Tin Plated Leads, Solderable per MIL-STD-202, Method 208  X2-DFN1010-4 (Type B): Finish - NiPdAu over Copper Leads, Solderable per MIL-STD-202, Method 208 Weight:  SOT23: 0.009 grams (Approximate)  SOT25: 0.016 grams (Approximate)  X2-DFN1010-4 (Type B): 0.001 grams (Approximate) Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ 1 Top View X2-DFN1010-4 Bottom View X2-DFN1010-4 (Type B) Pin 1 – VOUT, Pin 2 – GND, Pin 3 – EN, Pin 4 – VIN Applications       Wearable Electronics Sensor Module for Internet-of-Things (IoT) Wireless Communication Module Battery-Operated Device Camera Image Sensor Typical Applications Circuit (Note 4) VIN VOUT VIN VOUT AP7354 CIN 0.1µF Notes: EN COUT 0.1µF GND 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
