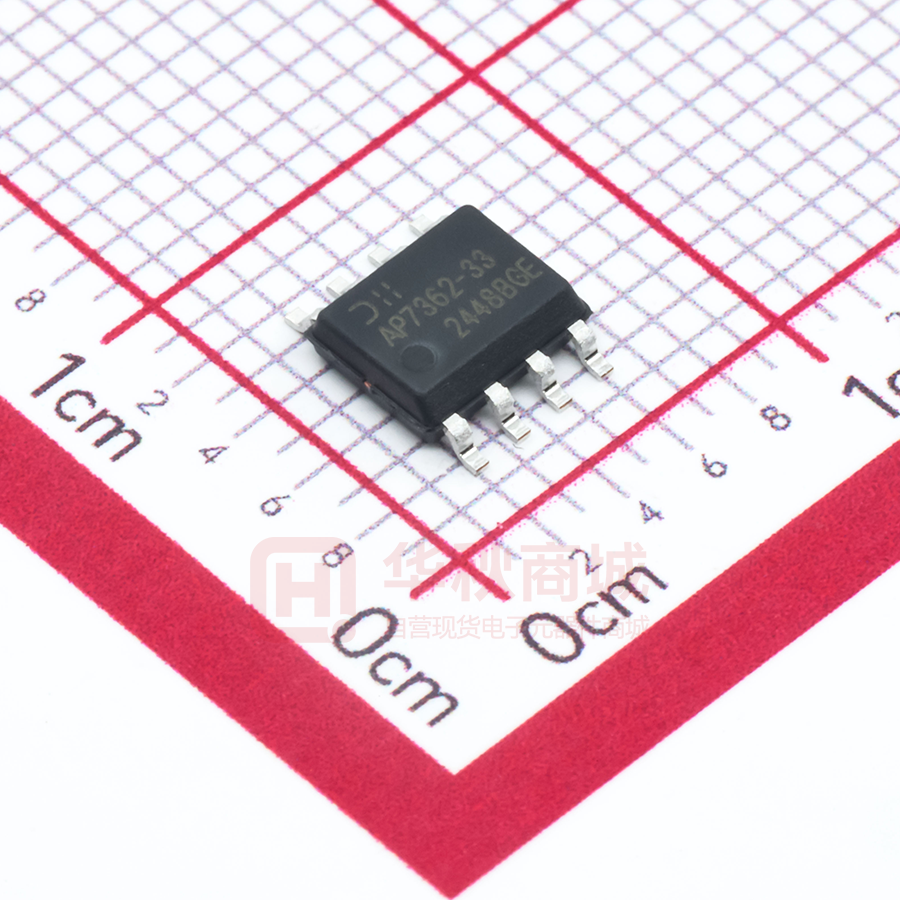

AP7362-33SP-13

AP7362 1.5A, LOW QUIESCENT CURREENT, FAST TRANSIENT ULTRA-LOW DROPOUT LINEAR REGULATOR Description Pin Assignments The AP7362 is a 1.5A adjustable output voltage linear regulator with ultra-low dropout. The device includes pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The integrated Enable block allows the part to be turned on and off via a logic signal. A logic high level on EN turns the device on and a logic low turns the part off. (Top (Top View) View) ADJ/ NC OUT OUT OUT The low dropout voltage characteristics and fast transient response to step changes in load make it suitable for low voltage microprocessor applications. The typical quiescent current is approximately 0.5mA and changes little with load current. The built-in current-limit and thermal-shutdown functions prevent damage to the IC in fault conditions. 8 7 6 5 1 2 3 4 GND EN IN IN U-DFN2030-8 U-DFN2030-8 (Top View) This device is available in U-DFN2030-8 and SO-8EP packages. GND 1 8 ADJ/NC EN 2 7 OUT IN 3 6 OUT IN 4 5 OUT Features           1.5A Ultra-Low Dropout Linear Regulator with EN Ultra-Low Dropout: 190mV at 1.5A Stable with 10µF Input/Output Capacitor, any Type Wide Input Voltage Range: 2.2V to 5.5V Adjustable Output Voltage: 0.6V to 5.0V Fixed Output Options: 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V Low Ground Pin Current 25nA Quiescent Current in Shutdown Mode VADJ Accuracy of ±1.5% @ +25°C VADJ Accuracy of ±3% Over Line, Load and Temperature       Excellent Load/Line Transient Response Current Limit and Thermal Shutdown Protection Ambient Temperature Range: -40°C to +85°C U-DFN2030-8, SO-8EP Packages Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Notes: SO-8EP Applications     ASIC Power Supplies in Printers, Graphics Cards, DVD Players, STBs, Routers, etc. FPGA and DSP Core or I/O Power Supplies SMPS Regulator Conversion from 3.3V or 5V Rail 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
