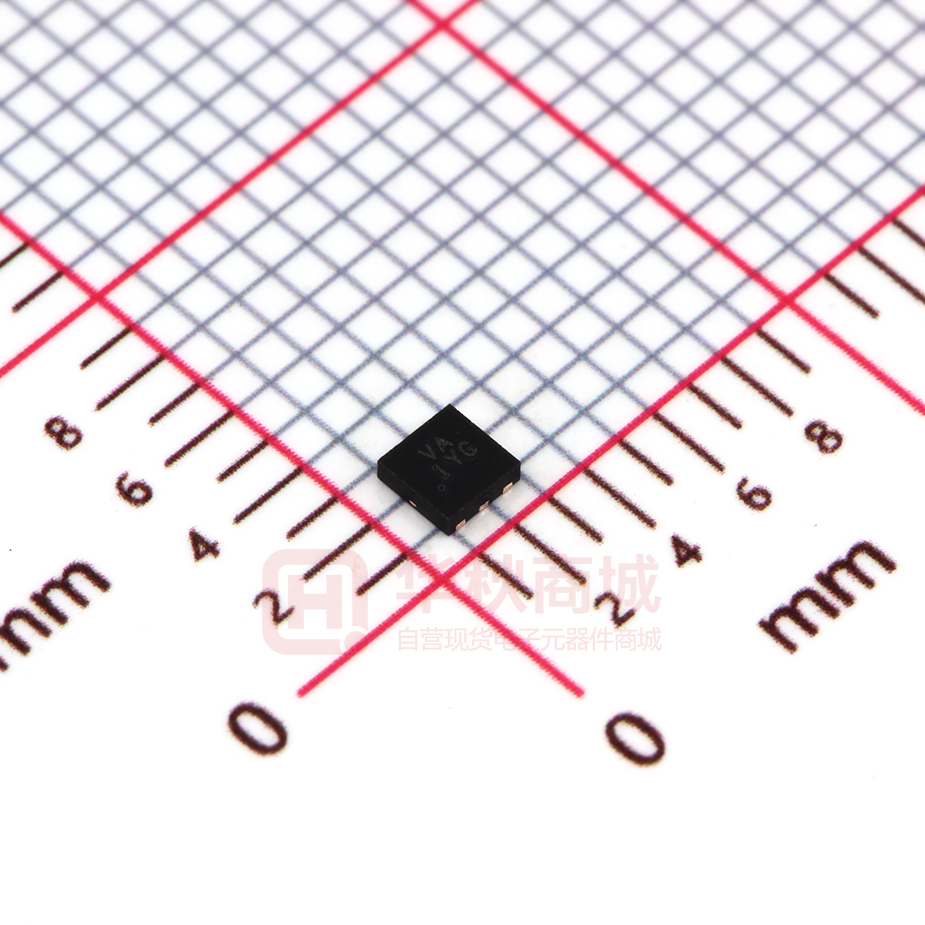

AP7365-SNG-7

NOT RECOMMENDED FOR NEW DESIGN USE AP7366 AP7365 600mA, LOW QUIESCENT CURRENT FAST TRANSIENT LOW DROPOUT LINEAR REGULATOR Description Pin Assignments The AP7365 is a 600mA, adjustable and fixed output voltage, low dropout linear regulator. This device includes pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. (Top View ) (Top View) IN 1 This device is available with adjustable output from 0.8V to 5.0V, and fixed version with 0.8V, 1.0V, 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V and 3.9V outputs. Please contact your local sales office for other voltage options. The AP7365 is available in SOT25, SOT89, SOT223, and UDFN2020-6 packages. EN 3 600mA Low Dropout Regulator with EN Very Low IQ: 35µA               Wide Input Voltage Range: 2V to 6V Wide Adjustable Output: 0.8V to 5.0V Fixed Output Options: 0.8V to 3.9V (0.1V Step Size Possible) High PSRR: 65dB at 1kHz Fast Start-Up Time: 200µs Stable with Low ESR, 1µF Ceramic Output Capacitor Excellent Load/Line Transient Response Low Dropout: 300mV at 600mA Current Limit and Short Circuit Protection Thermal Shutdown Protection Ambient Temperature Range: -40°C to +85°C Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ (W Package) (W Package) (Top View) (Top View) EN 1 6 NC EN 1 GND 2 5 NC GND 2 IN 3 6 ADJ 5 NC IN 3 4 OUT 4 OUT U-DFN2020-6 (Fixed Output) U-DFN2020-6 (ADJ Output) (SN Package) (SN Package) (Top View) (Top View) 3 IN 3 OUT 2 GND (TAB) 2 IN (TAB) 1 OUT 1 GND SOT89 (Fixed output) SOT89 (Fixed output) (Y Package) (YR Package) (Top View) (Top View) 3 IN 3 OUT 2 GND (TAB) 2 IN (TAB) 1 OUT 1 GND SOT223 (Fixed output) SOT223 (Fixed output) (E Package) Servers and Notebook Computers Low and Medium Power Applications FPGA and DSP Core or I/O Power Consumer Electronics Notes: 4 ADJ SOT25 (ADJ Output) Applications     EN 3 4 NC SOT25 (Fixed Output) Features   5 OUT GND 2 GND 2 The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications such as battery powered devices. The typical quiescent current is approximately 35μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. IN 1 5 OUT (ER Package) (Top View) 3 IN 2 OUT (TAB) 1 GND SOT223 (Fixed output) (EV Package) 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
