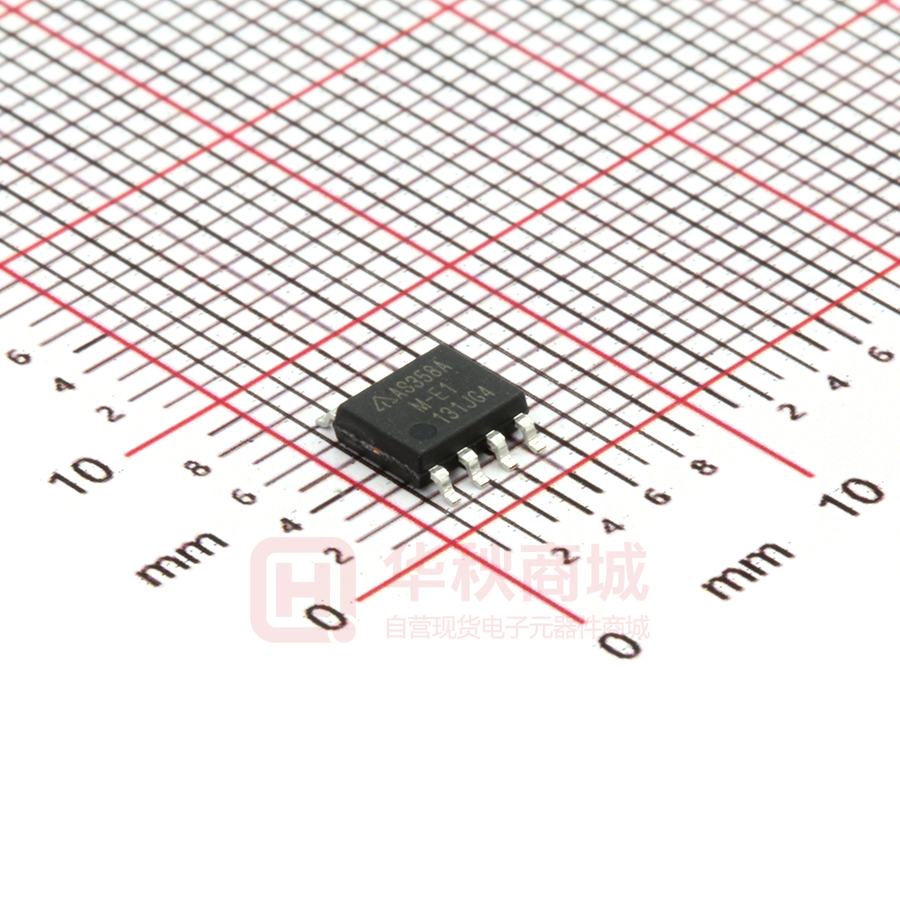

AS358AMTR-E1

AS358/358A/358B LOW POWER DUAL OPERATIONAL AMPLIFIERS ADVANCED INFORMATION Description Pin Assignments (Top View) The AS358/358A/358B consists of two independent, high gain and internally frequency compensated operational amplifiers, they are specifically designed to operate from a single power supply. Operation from split power supply is also possible and the low power supply current drain is independent of the magnitude of the power supply voltages. Typical applications include transducer amplifiers, DC gain blocks and most conventional operational amplifier circuits. OUTPUT 1 1 8 VCC INPUT 1- 2 7 OUTPUT 2 INPUT 1+ 3 6 INPUT 2- GND 4 5 INPUT 2+ The AS358/358A/358B series is compatible with industry standard 358. The AS358A has more stringent input offset voltage than the AS358. (SOIC-8/TSSOP-8/MSOP-8) (Top View) The AS358 is available in DIP-8, TDIP-8, SOIC-8, TSSOP-8 and MSOP-8 packages, the AS358A is available in DIP-8 and SOIC-8 packages and AS358B is available in TSSOP-8 package. OUTPUT 1 1 8 VCC INPUT 1- 2 7 OUTPUT 2 INPUT 1+ 3 6 INPUT 2- GND 4 5 INPUT 2+ Features  Internally Frequency Compensated for Unity Gain  Large Voltage Gain: 100dB (Typical)  Low Input Bias Current: 20nA (Typical)  Low Input Offset Voltage: 2mV (Typical)  Low Supply Current: 0.5mA (Typical)  (DIP-8/TDIP-8) Applications Wide Power Supply Voltage:  Single Supply: 3V to 36V  Dual Supplies: ±1.5V to ±18V  Input Common Mode Voltage Range Includes Ground  Large Output Voltage Swing: 0V to VCC -1.5V  Lead-Free Packages: SOIC-8, DIP-8, TSSOP-8 and MSOP-8    Battery Charger  Cordless Telephone  Switching Power Supply Totally Lead-Free; RoHS Compliant (Notes 1 & 2) Lead-Free Packages, Available in “Green” Molding Compound: SOIC-8, DIP-8, TDIP-8, TSSOP-8 and MSOP-8  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. 2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
