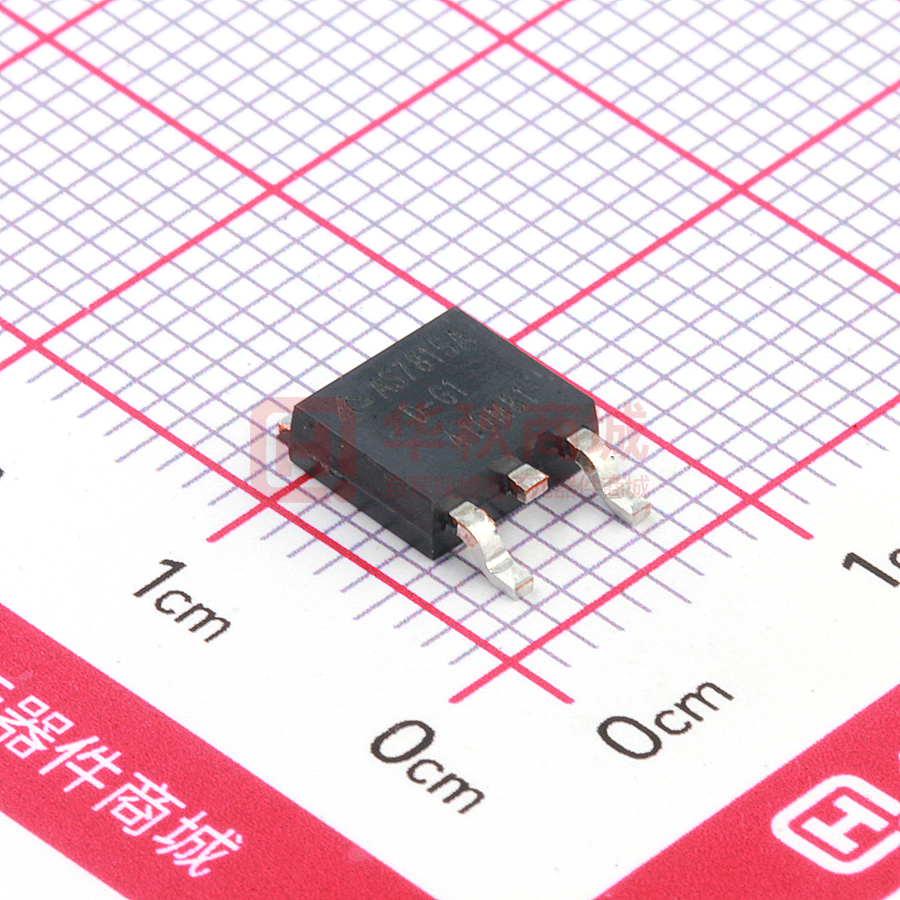

AS7815ADTR-G1

AS78XXA 1A 3-TERMINAL POSITIVE VOLTAGE REGULATOR Description Features The DIODES™ AS78XXA series are three-terminal positive voltage regulators designed for a wide variety of applications including local, on-card regulation.    The AS78XXA are complete with internal current limiting, thermal shutdown protection, and safe-area compensation which make them virtually immune from output overload. If adequate heat sinking is provided, these regulators can deliver output currents of up to 1A.       The AS78XXA are available in TO-252-2 (3), TO-252-2 (4), TO-252-2 (5), TO-220-3, TO-220-3 (2), and TO-220F-3 packages. Applications     High-efficiency linear regulators Post regulation for switching supplies Microprocessor power supplies Motherboards  Lead-Free Packages: TO-252-2 (3), TO-252-2 (4), TO-252-2 (5)  Totally Lead-Free; RoHS Compliant (Notes 2 & 3)  Available in “Green” Packages: TO-220-3, TO-220-3 (2) and TO220F-3  Lead-Free Finish; RoHS Compliant (Notes 1 & 3)  Halogen and Antimony Free. “Green” Device (Note 4)  Lead-Free Packages, Available in “Green” Molding Compound: TO-252-2 (3), TO-252-2 (4), TO-252-2 (5)  Totally Lead-Free & Fully RoHS Compliant (Notes 2 & 3)  Halogen and Antimony Free. “Green” Device (Note 4) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/  Notes: Output Current up to 1A Fixed Output Voltages of 5V, 6V, 8V, 9V, 12V, 15V, and 18V Output Voltage Accuracy of ±4% over the Full Temperature Range Internal Short-Circuit Current Limiting Internal Thermal Overload Protection Output Transistor Safe-area Protection Low Load Regulation Stable Performance in High Temperature TO-220-3, TO-220-3 (2) and TO-220F-3  Lead-Free Finish; RoHS Compliant (Notes 1 & 3) 1. EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. All applicable RoHS exemptions applied. 2. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 3. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 4. Halogen- and Antimony-free "Green” products are defined as those which contain
