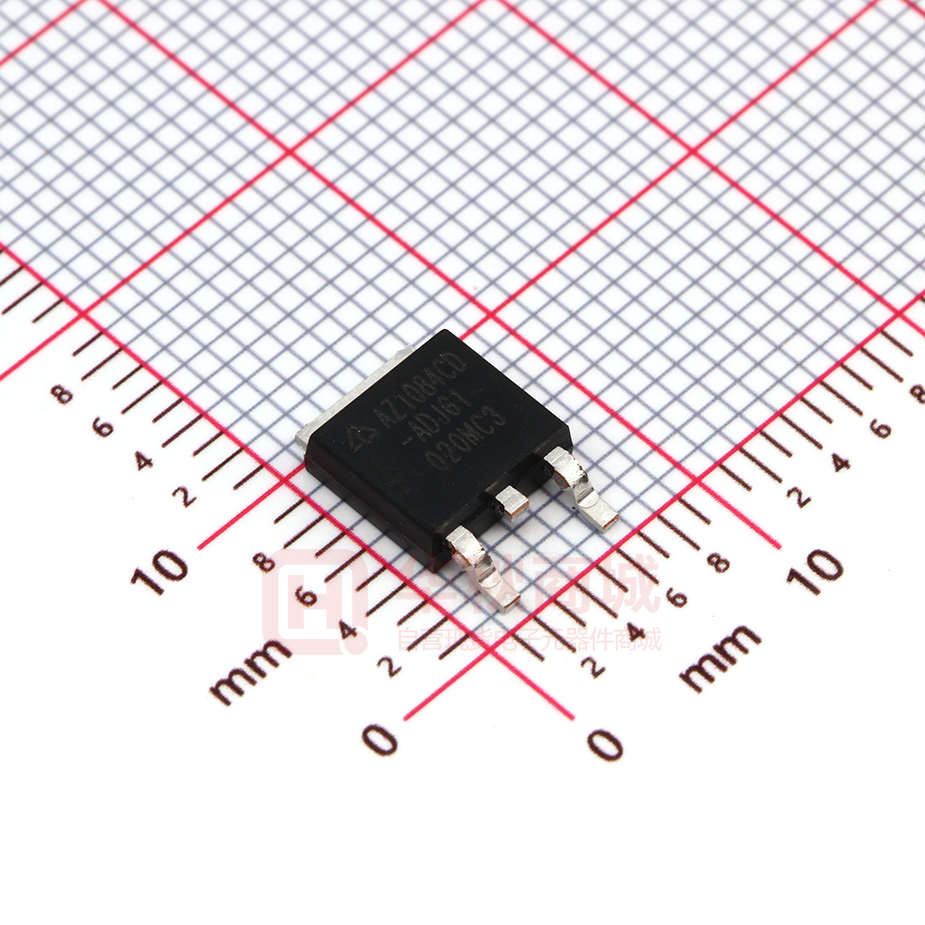

AZ1084CD-ADJTRG1

AZ1084C 5A LOW DROPOUT LINEAR REGULATOR Description Features The DIODES™ AZ1084C is a series of low-dropout positive-voltage regulators with a maximum dropout of 1.5V at 5A of load current.          Low Dropout Voltage: 1.35V Typical at 5A Current Limiting and Thermal Protection Output Current: 5A Current Limit: 6.5A Operating Junction Temperature Range: 0 to +125°C Compatible with Low ESR Ceramic Capacitor Line Regulation (Adj Version): 0.015% (Typ) Load Regulation (Adj Version): 0.1% (Typ) Lead-Free Packages: TO263, TO263-2  Totally Lead-Free; RoHS Compliant (Notes 1 & 2)  Lead-Free Packages, Available in “Green” Molding Compound: TO263, TO263-2, TO252-2 (3), TO252-2 (4), TO252-2 (5)  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3) For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ The series features on-chip thermal limiting, which provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. It also includes a trimmed bandgap reference and a current-limiting circuit. The AZ1084C is available in 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V versions. The fixed versions integrate the adjust resistors. It is also available in an adjustable version which can set the output voltage with two external resistors. The AZ1084C series is available in the standard packages of TO263, TO263-2, TO252-2 (3), TO252-2 (4), and TO252-2 (5).  Applications      High-efficiency linear regulators Battery chargers Post-regulation for switching supplies Microprocessor supplies Desktop PCs, RISC, and embedded processors' supply Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
