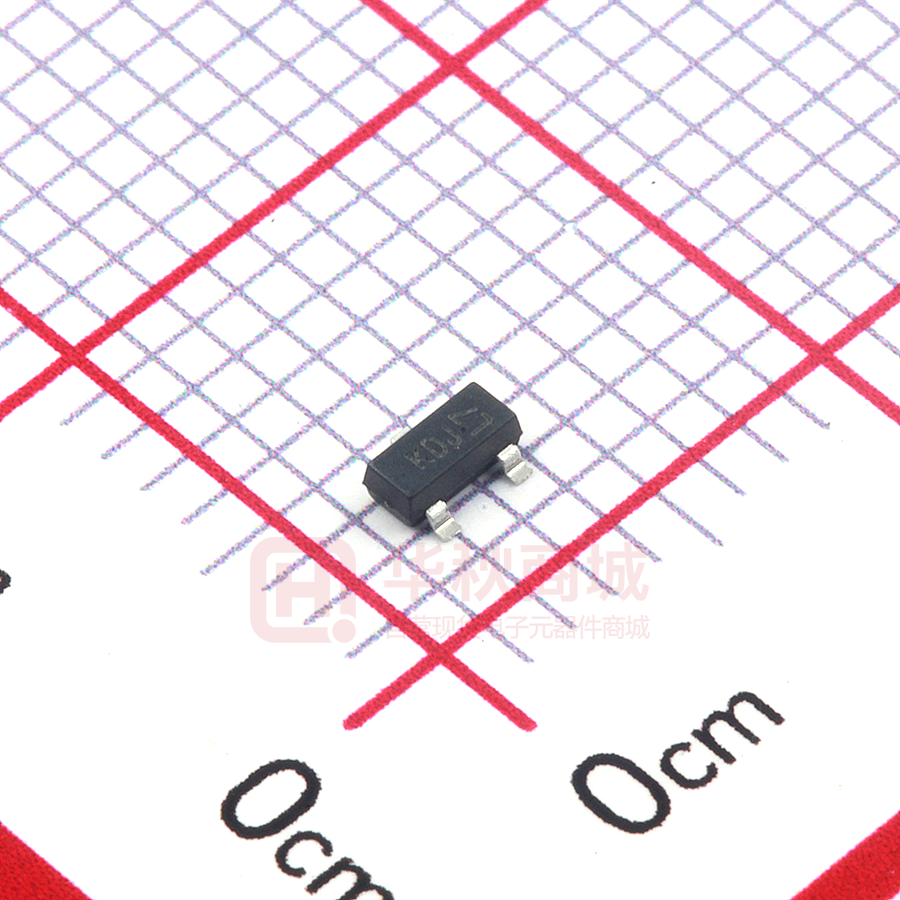

AZ23C15-7-F

AZ23C2V7 - AZ23C51 300mW DUAL SURFACE MOUNT ZENER DIODE Features Mechanical Data            Dual Zeners in Common Anode Configuration 300mW Power Dissipation Rating Ideally Suited for Automated Insertion  VZ for Both Diodes in One Case is  5% Common Cathode Style Available See DZ Series Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) Halogen and Antimony Free. “Green” Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)     Case: SOT23 Case Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating). Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Approximate Weight: 0.008 grams ESD Sensitivity Rating   AEC-Q101, HBM - 8kV, MM - 400V IEC 61000-4-2, Air - 15kV, Contact - 8kV SOT23 Top View Device Schematic Ordering Information (Note 5) Part Number (Type Number)-7-F* (Type Number)Q-7-F* Qualification Commercial Automotive Case SOT23 SOT23 Packaging 3000/Tape & Reel 3000/Tape & Reel *Add “-7-F” to the appropriate type number in Electrical Characteristics Table on Page 2 example: 6.2V Zener = AZ23C6V2-7F. Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See http://www.diodes.com/quality/lead_free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain
