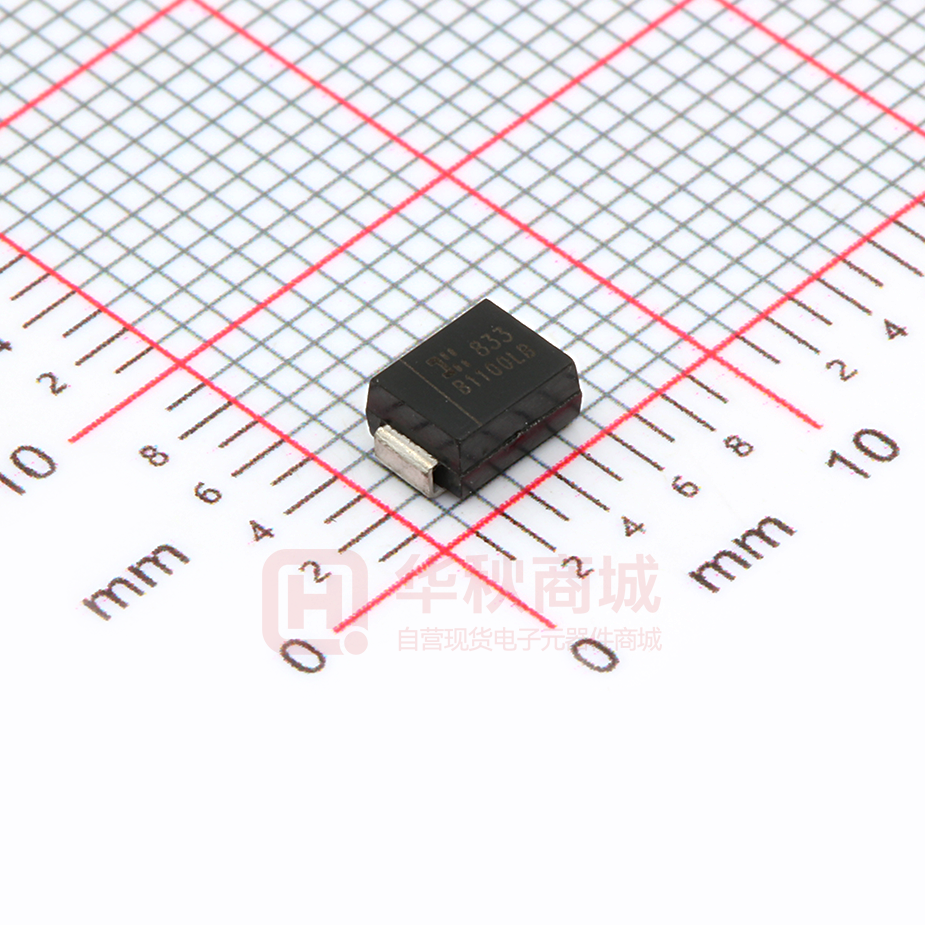

B1100LB-13-F

  B1100LB Green 1.0A HIGH VOLTAGE SCHOTTKY BARRIER RECTIFIER Features Mechanical Data • • • • • • • • • • Guard Ring Die Construction for Transient Protection Ideally Suited for Automated Assembly Low Power Loss, High Efficiency Surge Overload Rating to 50A Peak For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application High Temperature Soldering: 260°C/10 Second at Terminal Lead Free Finish, RoHS Compliant (Note 1) Green Molding Compound (No Halogen and Antimony) (Note 2) • • • Case: SMB Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208 Polarity: Cathode Band or Cathode Notch Weight: 0.093 grams (approximate) Bottom View Top View Ordering Information (Note 3) Part Number B1100LB-13-F Notes: Case SMB Packaging 3000/Tape & Reel 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes. 2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound. 3. For packaging details, go to our website at http://www.diodes.com. Marking Information YWW B1100LB B1100LB = Product type marking code = Manufacturers’ code marking YWW = Date code marking Y = Last digit of year (ex: 02 for 2002) WW = Week code (01 to 53) Note: Device has a cathode band and may also have a cathode notch. B1100LB Document number: DS30077 Rev. 10 - 2 1 of 4 www.diodes.com September 2010 © Diodes Incorporated B1100LB Maximum Ratings @TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitance load, derate current by 20%. Characteristic Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage @ IR = 0.5mA RMS Reverse Voltage Average Rectified Output Current @ TT = 120°C @ TT = 100°C Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave Superimposed on Rated Load Symbol VRRM VRWM VR VR(RMS) Value Unit 100 V V IO 70 1.0 2.0 IFSM 50 A Symbol RθJT TJ, TSTG Value 22 -65 to +175 Unit °C/W °C A Thermal Characteristics Characteristic Typical Thermal Resistance Junction to Terminal (Note 4) Operating and Storage Temperature Range (Note 5) Electrical Characteristics @TA = 25°C unless otherwise specified Characteristic Symbol VF Forward Voltage Drop Leakage Current (Note 6) IR Total Capacitance CT Typ - - - - - - - Max 0.75 0.5 5.0 100 Unit V mA pF Test Condition IF = 1.0A, TA = 25°C VR = 100V, TA = 25°C VR = 100V, TA = 100°C VR = 4V, f = 1MHz 4. Valid provided that terminals are kept at ambient temperature. 5. The heat generated must be less than the thermal conductivity from Junction-to-Ambient: dPD/dTJ < 1/RθJA. 6. Short duration pulse test used to minimize self-heating effect. 10 280 f = 1.0MHz Tj = 25°C CT, TOTAL CAPACITANCE (pF) IF, INSTANTANEOUS FORWARD CURRENT (A) Notes: Min - 1.0 0.1 240 200 160 120 80 40 0.01 0 0.2 0.4 0.6 0.8 1.0 VF, INSTANTANEOUS FORWARD VOLTAGE (V) Fig. 1 Typical Forward Characteristics B1100LB Document number: DS30077 Rev. 10 - 2 2 of 4 www.diodes.com 0 0.1 1 10 100 VR, DC REVERSE VOLTAGE (V) Fig. 2 Total Capacitance vs. Reverse Voltage September 2010 © Diodes Incorporated B1100LB 50 IFSM, PEAK FORWARD SURGE CURRENT (A) IF(AV), AVERAGE FORWARD CURRENT (A) 4 3 2 1 0 25 150 50 75 100 125 TT, TERMINAL TEMPERATURE (° C) Fig. 3 Forward Current Derating Curve 175 40 30 20 10 0 1 10 100 NUMBER OF CYCLES AT 60Hz Fig. 4 Max Non-Repetitive Peak Forward Surge Current Package Outline Dimensions B A SMB Dim Min Max A 3.30 3.94 B 4.06 4.57 C 1.96 2.21 D 0.15 0.31 E 5.00 5.59 G 0.05 0.20 H 0.76 1.52 J 2.00 2.50 All Dimensions in mm C D J H G E Suggested Pad Layout Dimensions Value (in mm) Z 6.8 G 1.8 X 2.3 Y 2.5 C 4.3 B1100LB Document number: DS30077 Rev. 10 - 2 3 of 4 www.diodes.com September 2010 © Diodes Incorporated B1100LB IMPORTANT NOTICE DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION). Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel. Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized application. Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein may also be covered by one or more United States, international or foreign trademarks. LIFE SUPPORT Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein: A. Life support devices or systems are devices or systems which: 1. are intended to implant into the body, or 2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in significant injury to the user. B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or to affect its safety or effectiveness. Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems. Copyright © 2010, Diodes Incorporated www.diodes.com B1100LB Document number: DS30077 Rev. 10 - 2 4 of 4 www.diodes.com September 2010 © Diodes Incorporated
